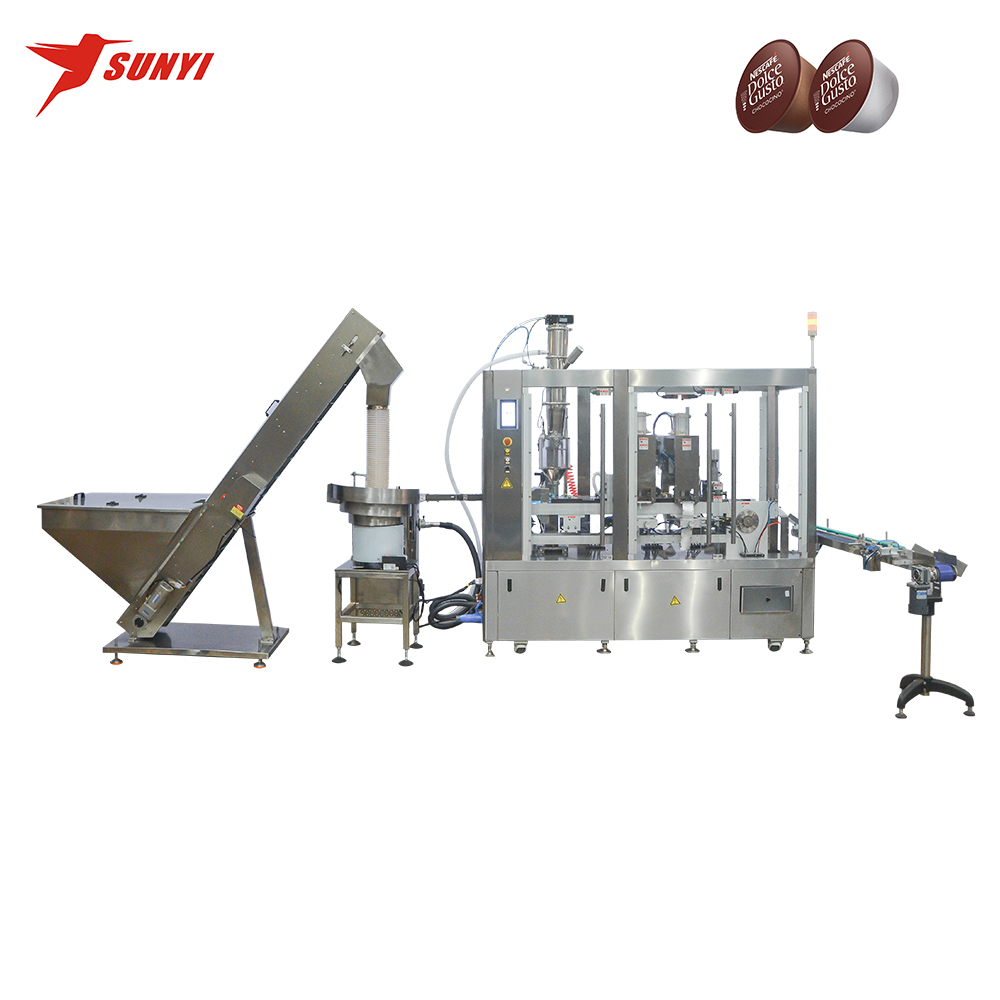

This is our 2025 latest one lane Dolce Gusto capsule filling machine, it adopt servo motor as main motor, use slide rail design, it is easy for customer to do operation and cleaning,fast maintenance. it is equipped with nitrogen flush function,it can guarantee each capsule residual oxygen is less than 1%, to keep coffee longer shelf life. the machine's max output capacity is 100 capsules per minute, you can adjust speed on the HMl to what you want.
All the product contact parts are food grade stainless steel AISI 304.

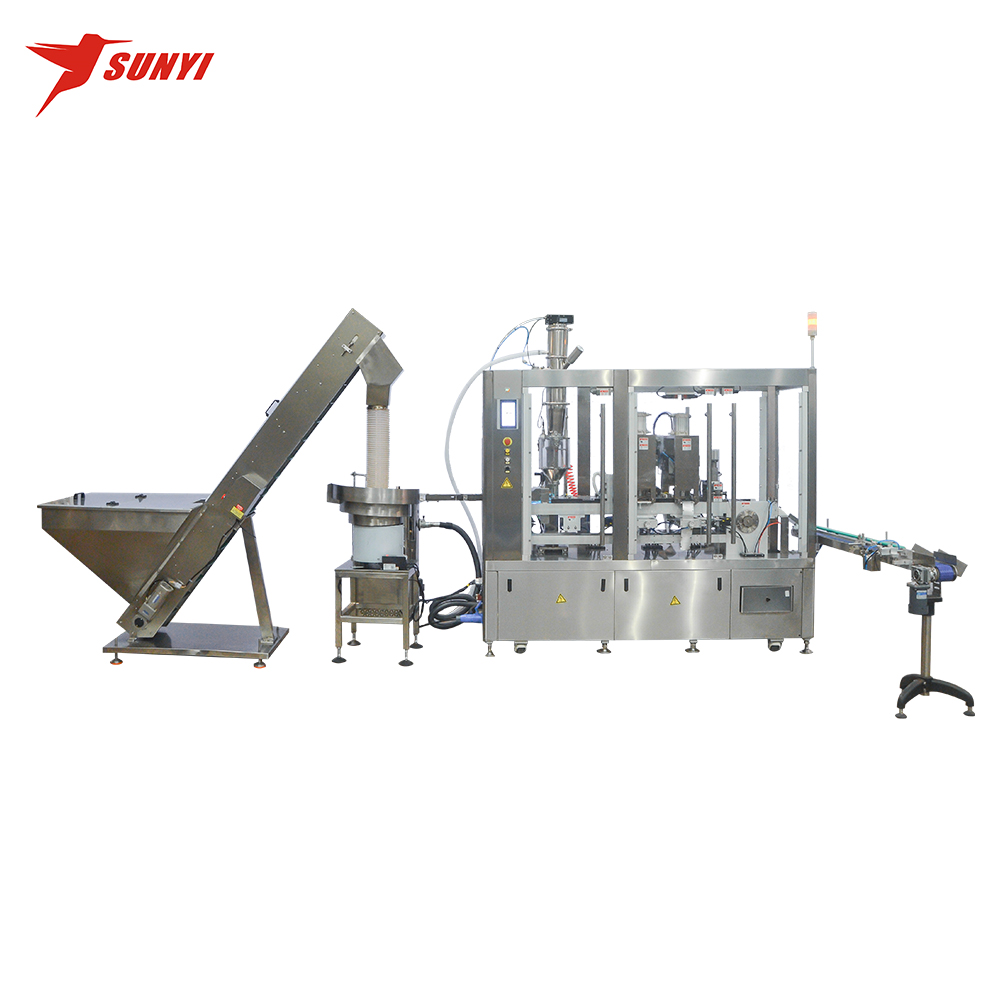

| SKP-1 one lane coffee capsule filling and sealing machine Specifications | |
|---|---|
| Certificate | CE, ISO 9001, UL |
| Capacity | 50 Pieces /per minute |
| Filling system | Auger filler driven by servo motor |
| Filling accuracy | ±0.2 g |
| Sealing | Roll film cutting-sealing |
| Power | 7,5 KW |
| Voltage | Three phase, 220/380 V,50/60 HZ |
| Compressed air consumption | ≥300 L/minute Dry compressed air, ≥6 Bar |
| Nitrogen consumption | ≥200 L/minute |
| Weight | 1000 Kg |
| Dimension | 2500mm(L)X2010 mm(W)X2700 mm(H) |

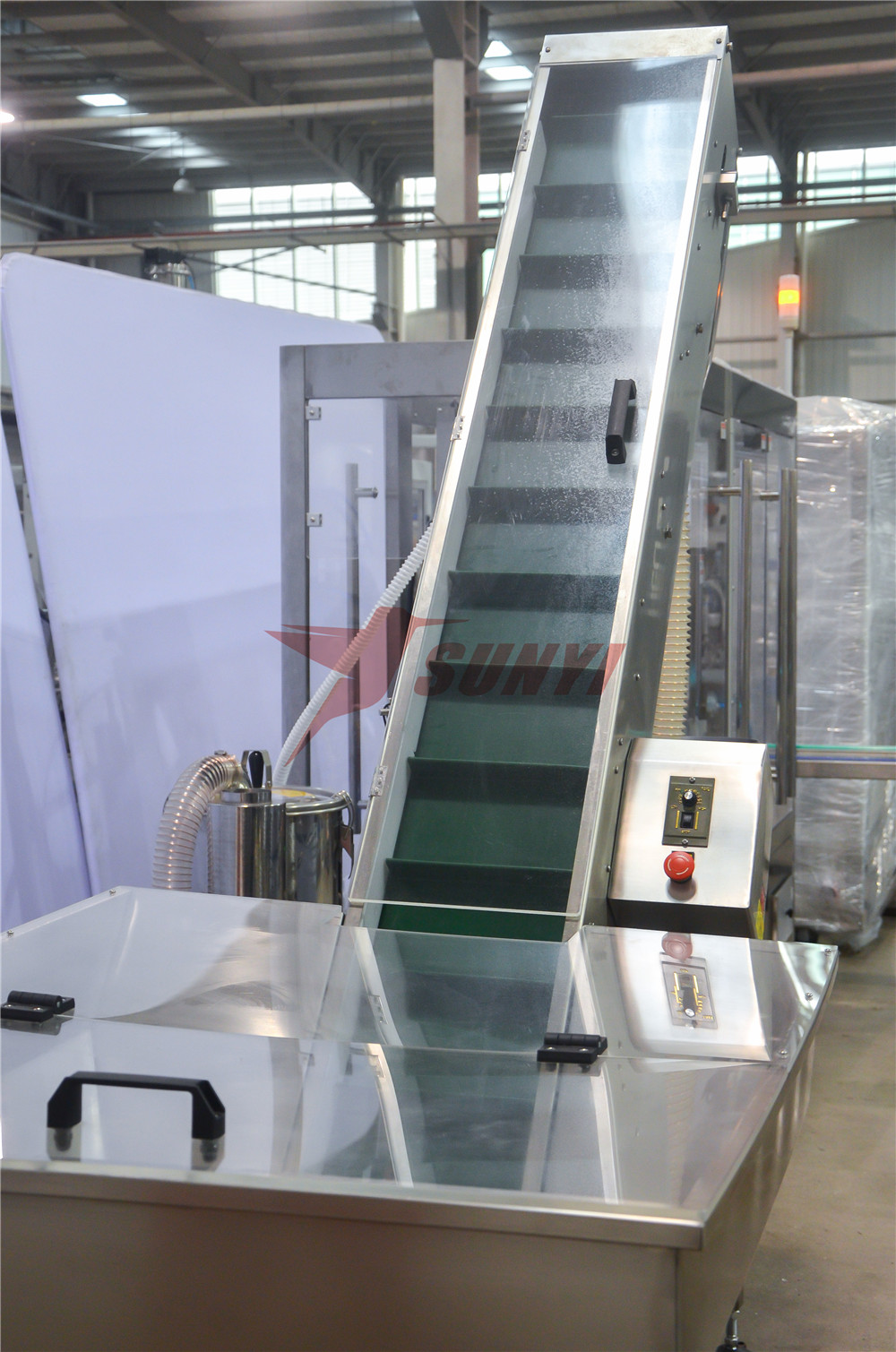

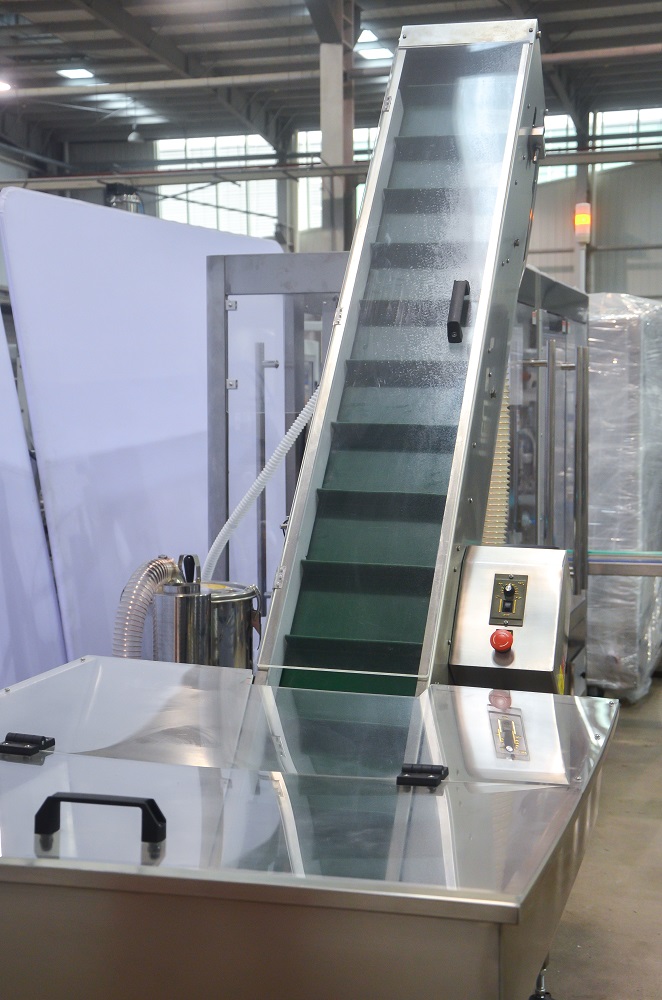

1. Vertical Loading Capsules

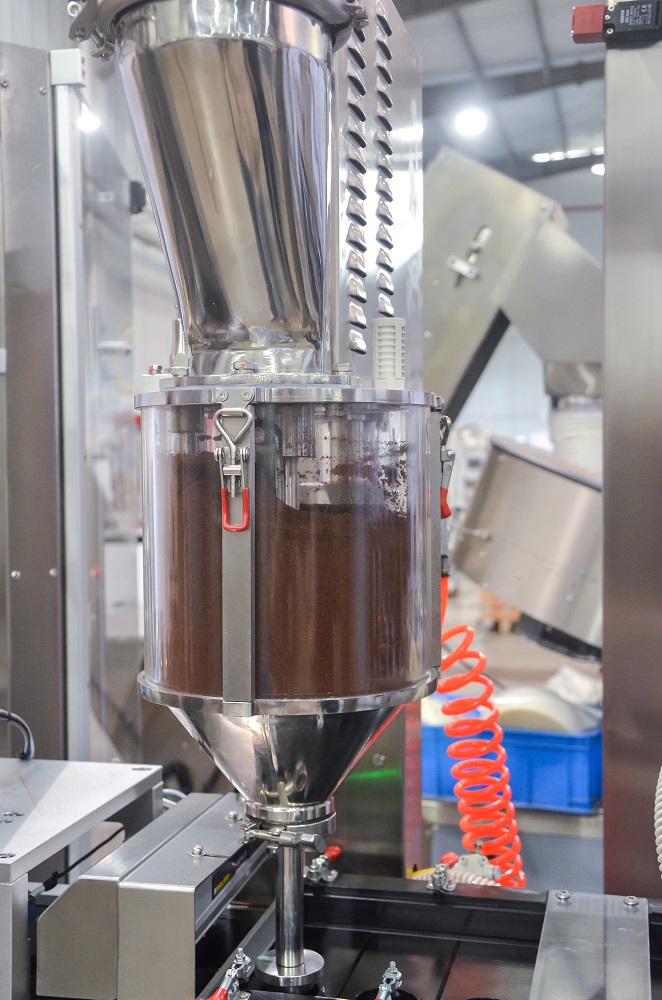

2. Filling System

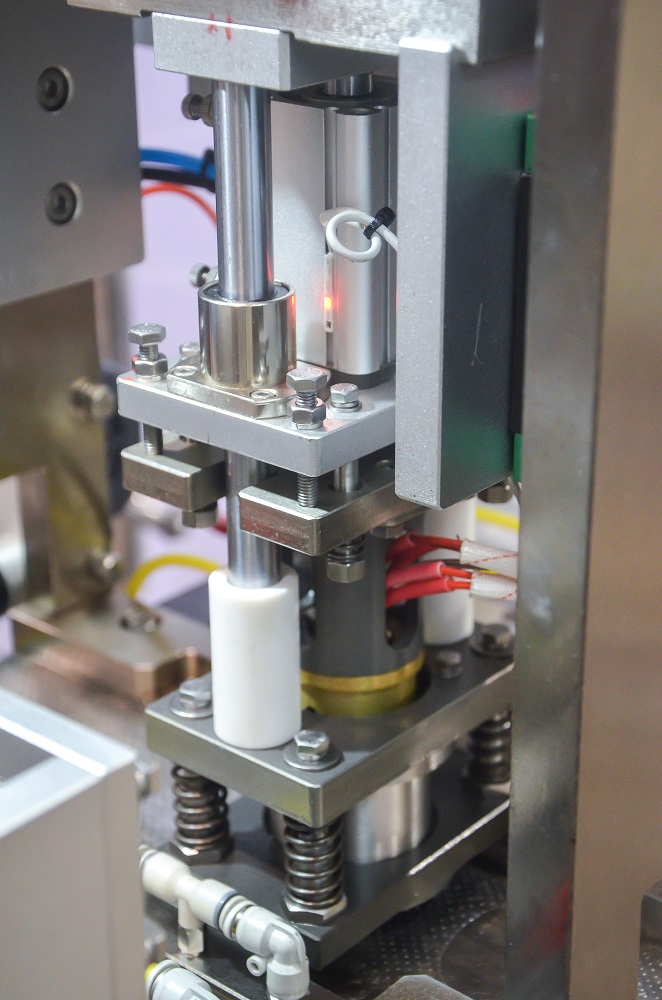

3. Perforated film cutting sealing station

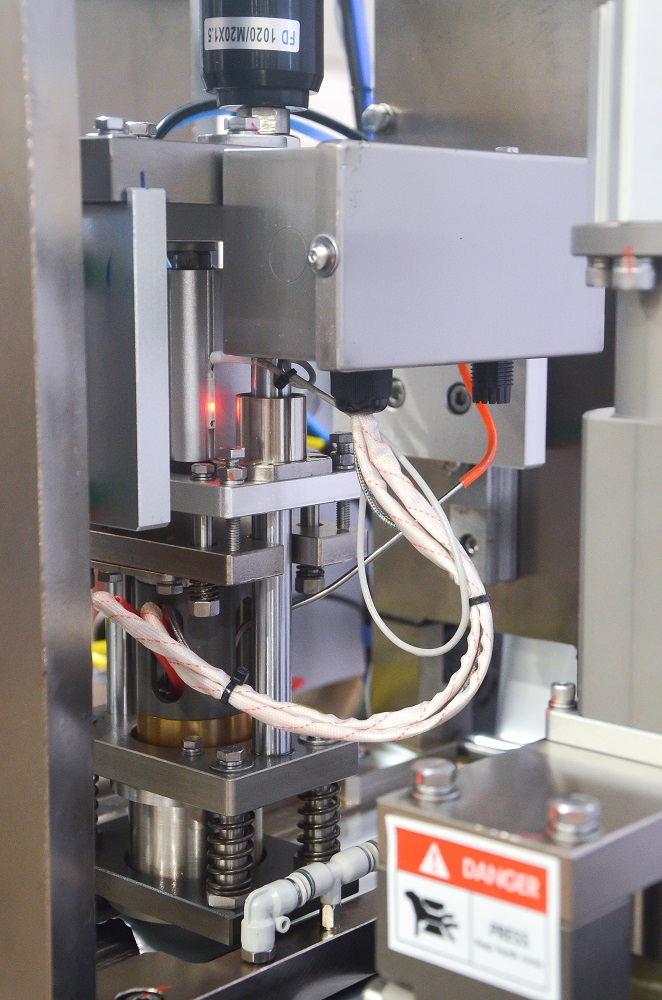

4. Outer film cutting sealing

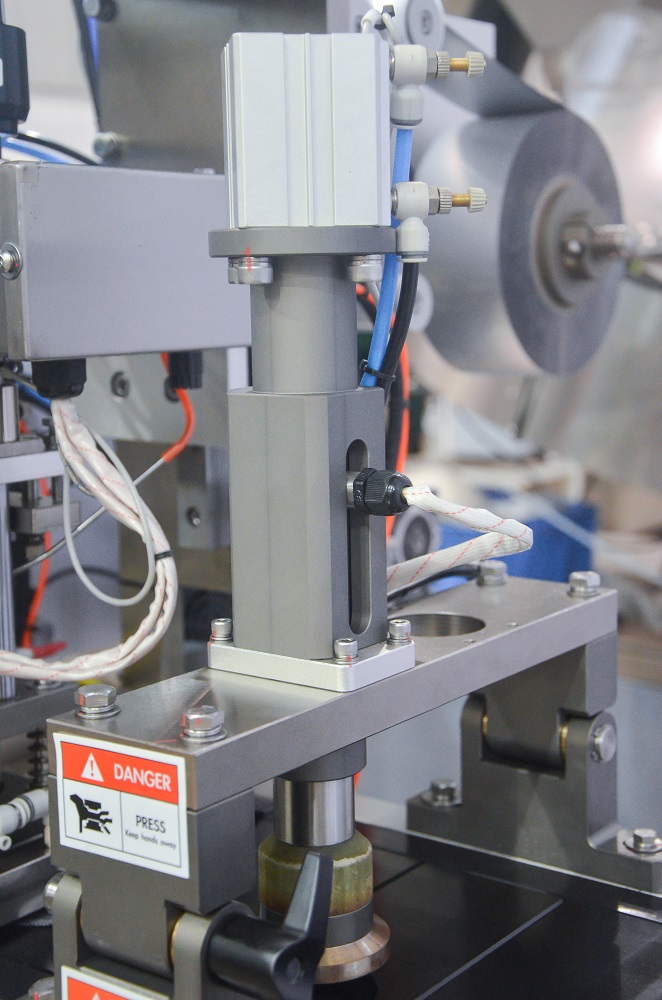

5. Second sealing

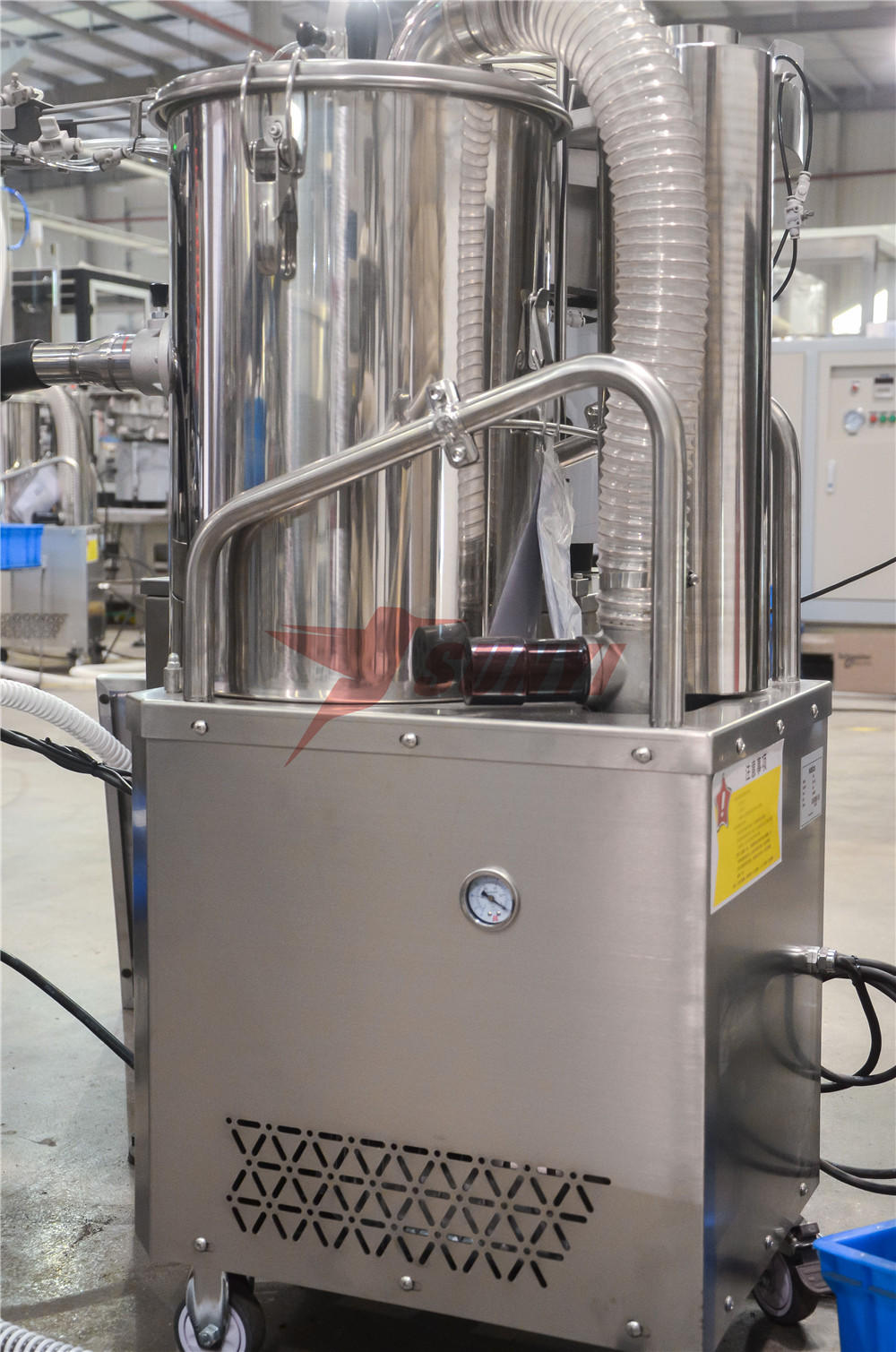

6. Vacuum cleaner
