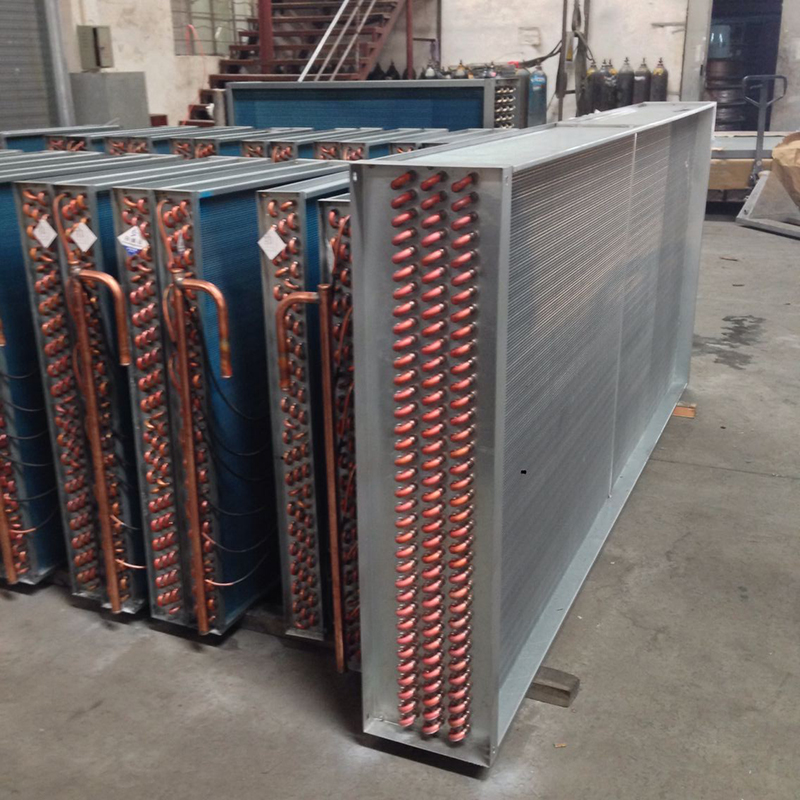

Engineering Copper Fin Booster Coils for High-Efficiency HVAC Reheat & Cooling
Custom Evaporator & Condenser Coils: Optimized for Chiller and Freezer Performance
We manufacture Copper Fin Booster Coils and Refrigeration Cooling Coils for demanding HVAC environments. Unlike standard aluminum fins, our all-copper design provides superior corrosion resistance and antimicrobial properties, making them ideal for hospital AHUs, marine chillers, and industrial freezers.
Advantages of Evaporator Coil Heat Exchanger
- Copper Fins: Solid copper fins offer superior thermal conductivity and natural antimicrobial protection.
- Booster Function: Designed as reheat coils in AHU systems to control humidity and air temperature.
- Corrosion Proof: All-copper construction eliminates galvanic corrosion, extending life in coastal areas.
- Heavy Duty: Thicker fin gauge (0.15mm+) withstands high-pressure cleaning without bending.
- Exact Fit: Custom dimensions and casing options ensure seamless replacement of Trane/Carrier coils.
- High Efficiency: "Copper-on-Copper" bond minimizes thermal resistance for maximum heat transfer.
- Pressure Tested: 100% Nitrogen leak testing at 3.0 MPa guarantees safety in high-pressure loops.
- Application: Ideal for hospital operating rooms, marine vessels, and food processing freezers.
- 1-Year Warranty: We warrant material quality and leak-free performance for 12 months.
- Fast Custom: We utilize automated manufacturing to produce custom copper coils in 10-14 days.
Technical Specifications
- Tube Material: Copper (9.52mm, 12.7mm, 15.88mm)
- Fin Material: Copper (Antimicrobial)
- Fin Type: Corrugated / Flat
- Fin Spacing: 4 - 12 FPI (Adjustable)
- Test Pressure: 3.0 MPa (30 Bar)
- Frame: SS304 / Galvanized Steel
- Rows: 1 - 10 Rows Deep
- Application: Evaporator / Condenser / Booster
- Medium: Water, Glycol, Refrigerant, Steam
- Connection: Flange / Thread / Sweat
Applications
- Hospital Surgical Room HVAC (Hygiene)
- Marine Vessel Air Conditioning (Salt Air)
- Pharmaceutical Clean Room Reheat
- Food Processing Blast Freezers
- Industrial Dehumidification Systems
- Chemical Plant Corrosion Areas
- Offshore Platform Cooling Units
- Museum Precision Climate Control
- Commercial AHU Booster Heating
- Wastewater Treatment Plant HVAC
Key Features
- Pure Copper: We use 99.9% purity copper for both tubes and fins, offering maximum lifespan.
- Hygiene Focus: Copper fins naturally inhibit bacteria growth, essential for medical/food HVAC.
- Retrofit Logic: We can match specific pressure drops and capacities of obsolete OEM coils.
- Heavy Frame: Casing made of 2.0mm SS304 or G90 galvanized steel prevents vibration damage.
Details of Materials
| Material |
Key Properties |
Typical Applications & Standards |
| Carbon Steel |
High mechanical strength, cost-effective |
Widely adopted for shells in industrial systems (e.g., ASME SA-516 Gr. 70), suitable for non-corrosive environments and moderate temperatures (<300°C). |
| Stainless Steel |
Excellent corrosion resistance (e.g., SS304/316), good thermal performance |
Ideal for chemical, food processing, and HVAC systems (ASTM A240), resistant to chloride-containing fluids (e.g., < 1000 ppm Cl⁻). |
| Nickel Alloys |
Superior resistance to extreme corrosion (e.g., Inconel 600/625, Hastelloy C-276) |
Selected for high-temperature (>800°C) or aggressive environments (e.g., sulfuric acid, seawater desalination), compliant with NACE MR0175/ISO 15156. |
| Copper Alloys |
High thermal conductivity (e.g., CuNi 70/30, Brass) |
Common in condensers and cooling systems with non-corrosive water (ASTM B111), limited to < 150°C and non-ammonia environments. |
| Titanium |
Exceptional corrosion resistance (e.g., Grade 2/Grade 7) |
Critical for seawater applications (e.g., marine, offshore platforms), resistant to chlorides, acids, and biofouling (ASTM B338 Gr.2). |
Component Details

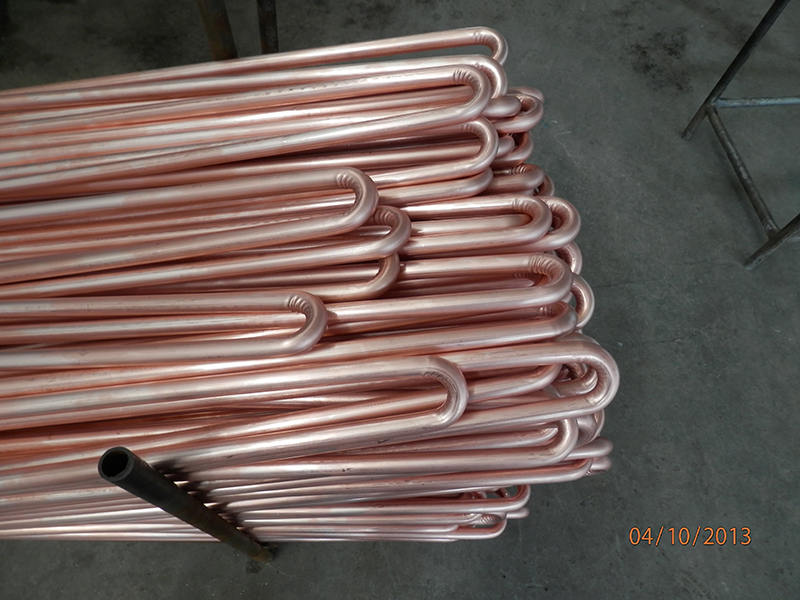

Main Part - Tube
- Standard tubes are 5/8", 1/2", 5/8", 20, 1" OD.
- 304, 316 stainless steel, copper, titanium, hot dip galvanized steel or aluminum.
- Tubes are arranged inline in the direction of airflow for maximum heat transfer with minimum air side pressure drop.

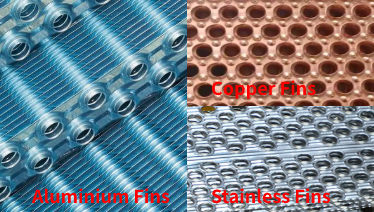

Main Part - Fin
- Standard fin material is aluminum, copper, stainless steel, titanium.
- Fins are die-formed into a corrugated (waffle) configuration to encourage turbulent airflow and improve heat transfer efficiency.
- Fins do have varied types of space.

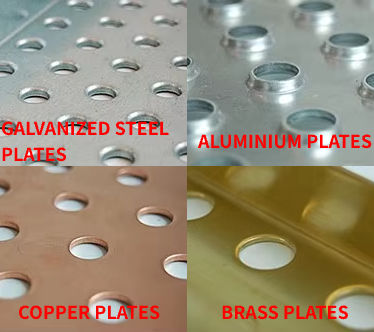

Main Part - Plate & Frame
- Standard cabinet/casing material is corrosion resistant galvanized steel.
- We also supply aluminum, stainless steel cabinet and casing.
Engineering Design
We exclusively utilize HTRI and EDR design software from a renowned European software provider.
With 18 years of strategic partnership, we have successfully designed, manufactured, and exported heat exchangers to over 50 countries worldwide.
Customer feedback consistently confirms that actual cooling performance aligns precisely with theoretical design values.

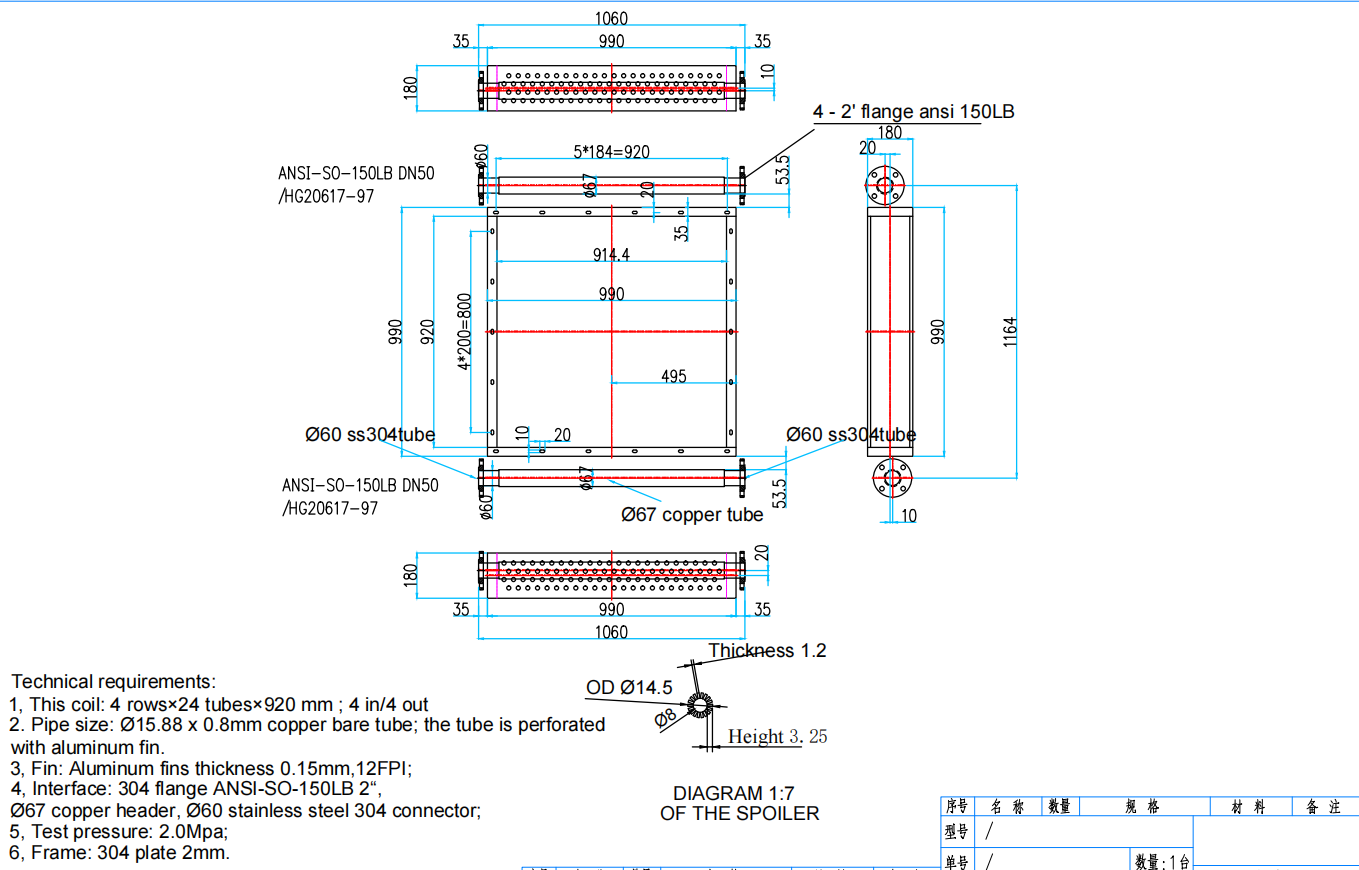

We can provide detailed drawing after your order. We can also provide Custom services.

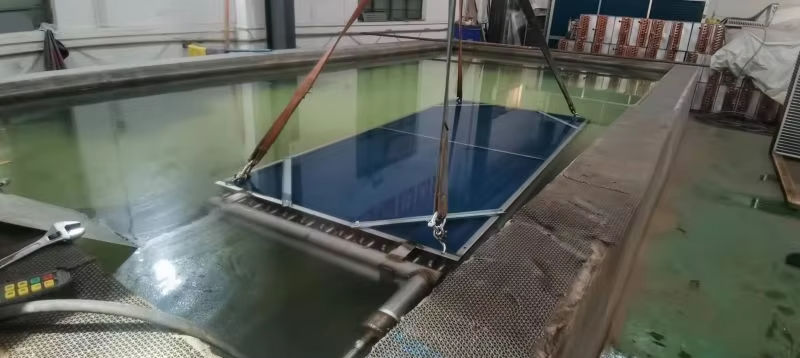

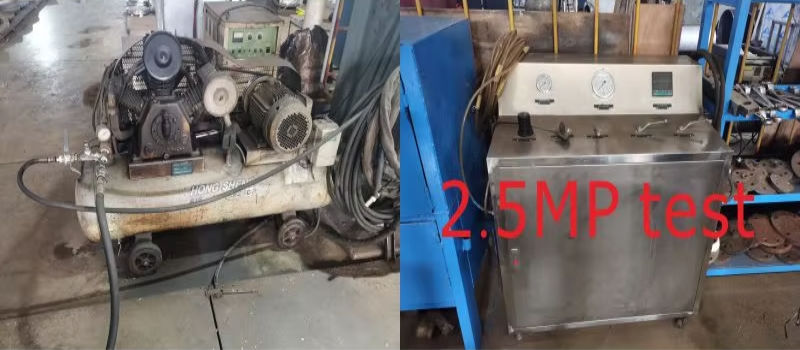

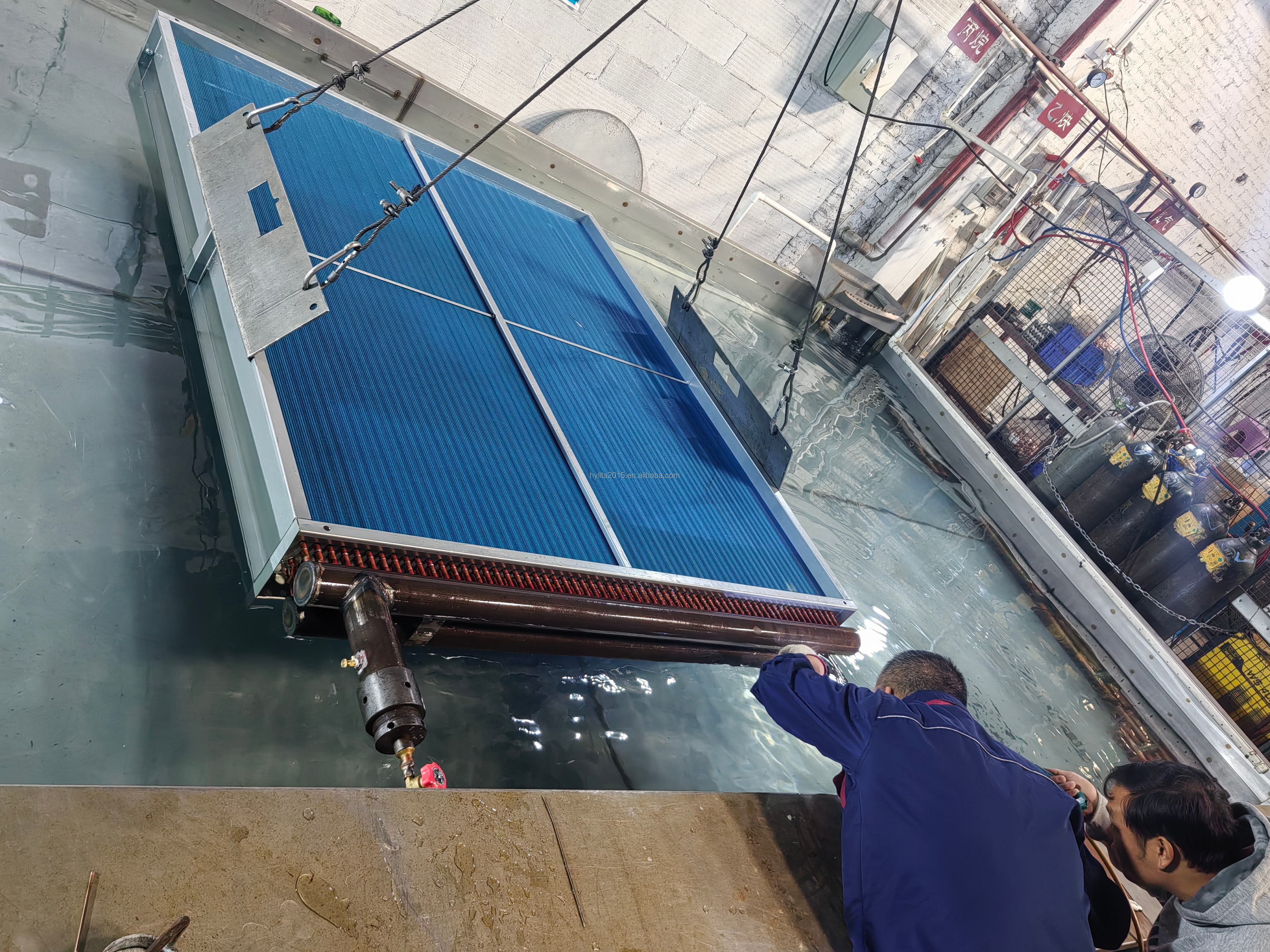

All heat exchangers undergo a rigorous pressure test: each unit is tested twice at 2.5 MPa and must hold the pressure for at least 15 minutes to verify pressure resistance and ensure no leakage.

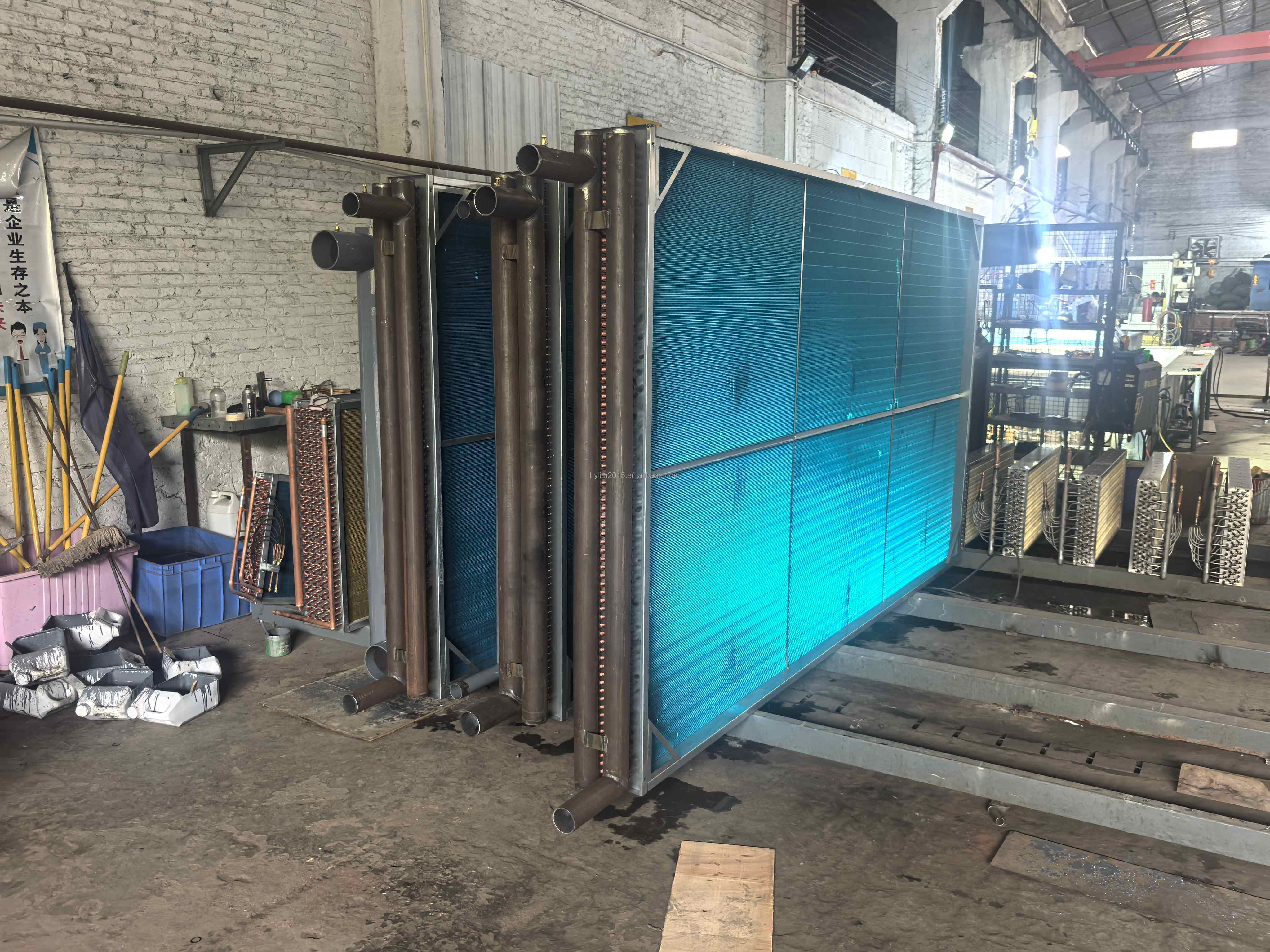

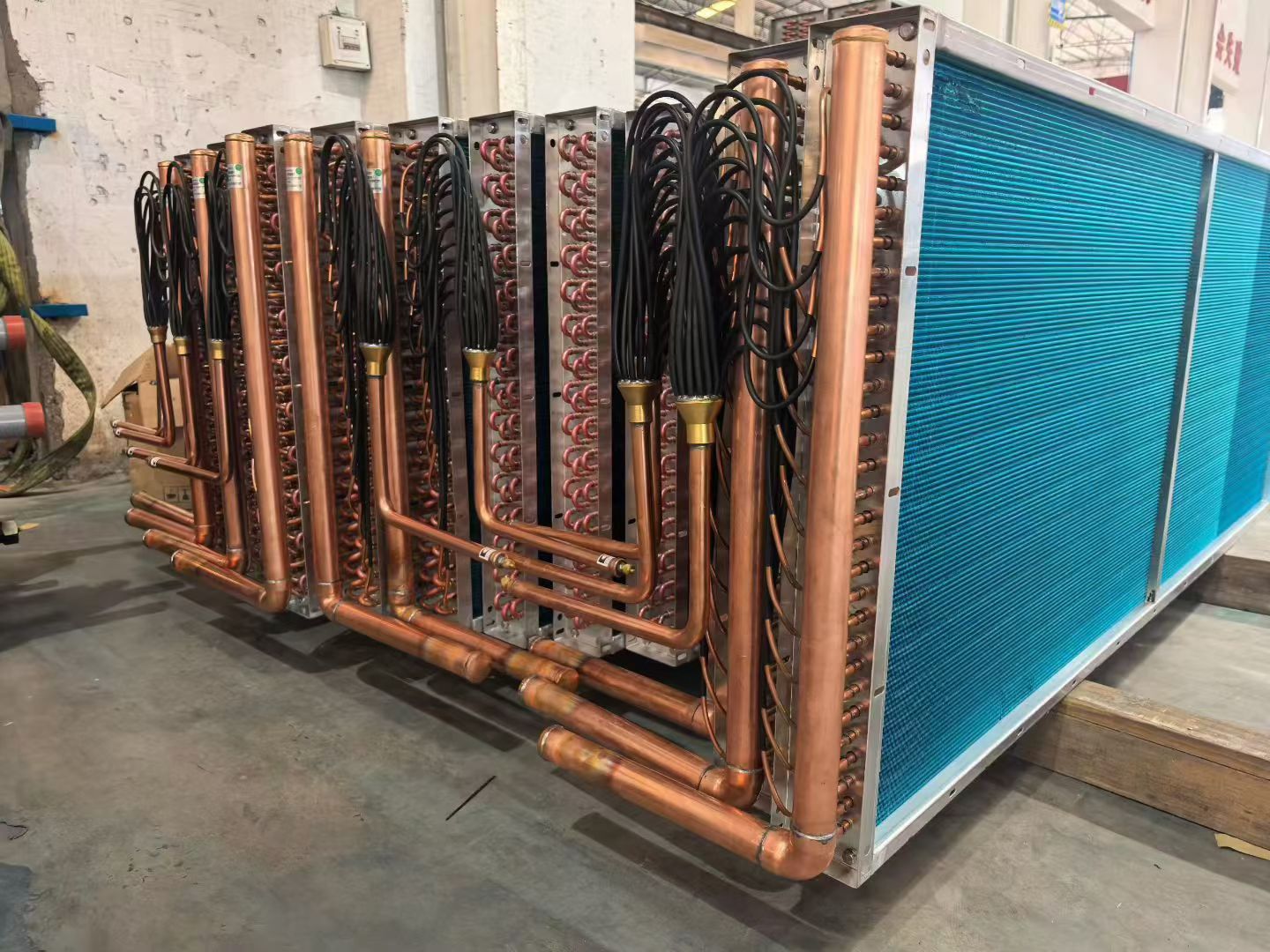

Customer Case Photos

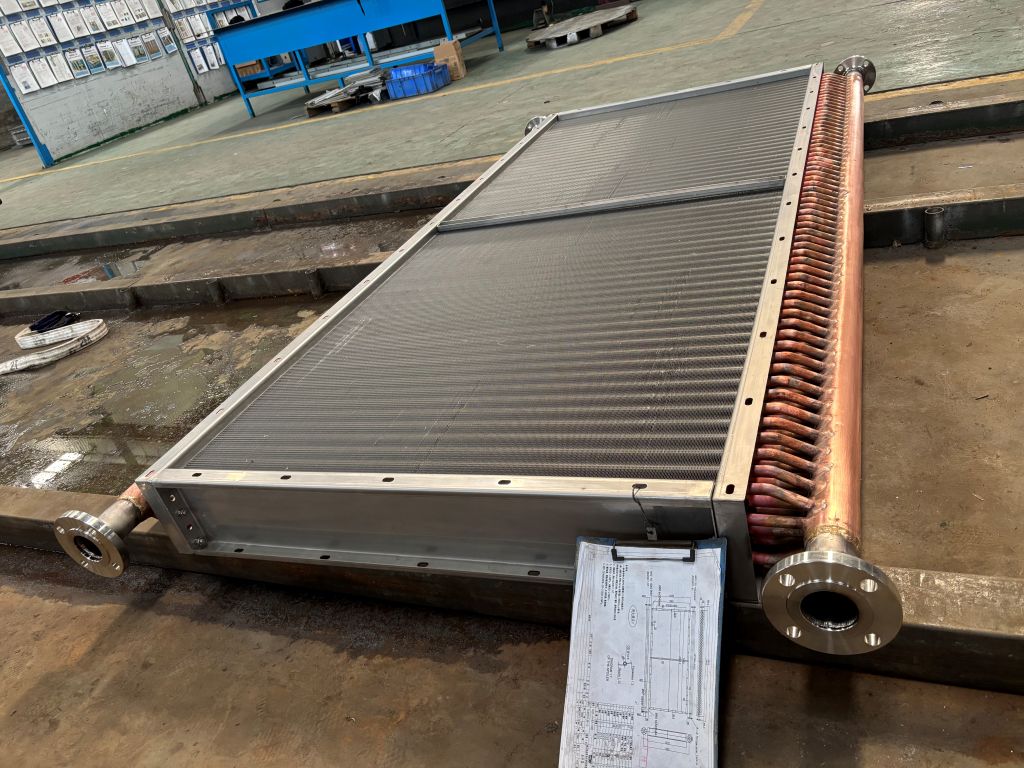

Country: Singapore
Application: Replacement condenser for offshore rig AC unit
Material: All Copper (Tube & Fin)

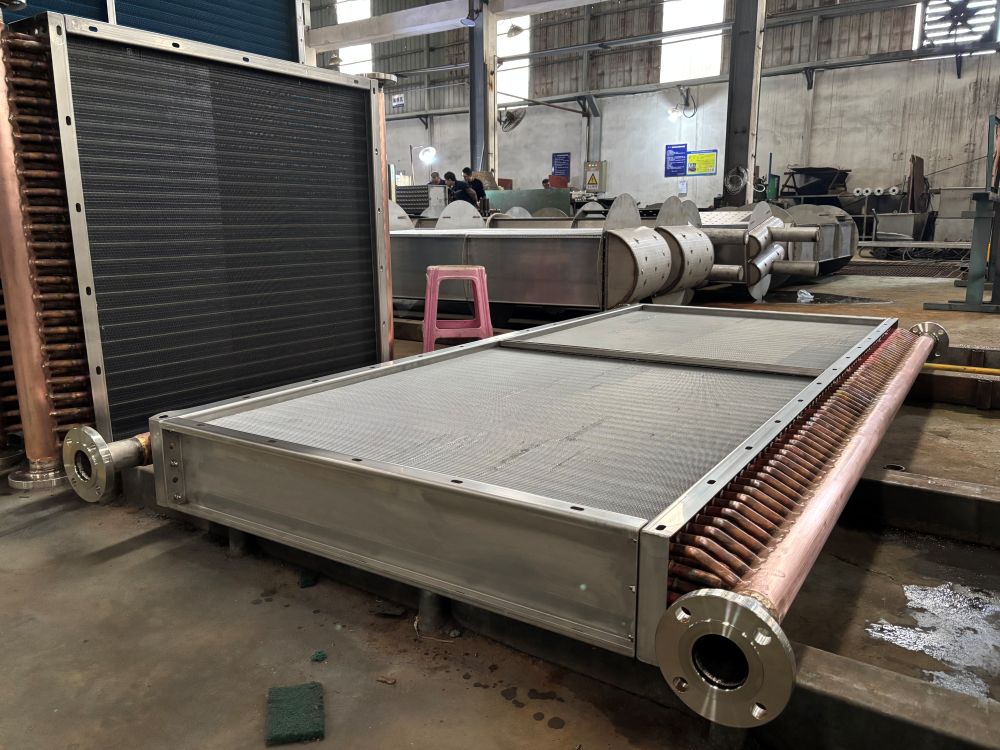

Country: USA
Application: Reheat booster coil for hospital operating theater AHU
Material: Copper Fin / SS304 Frame

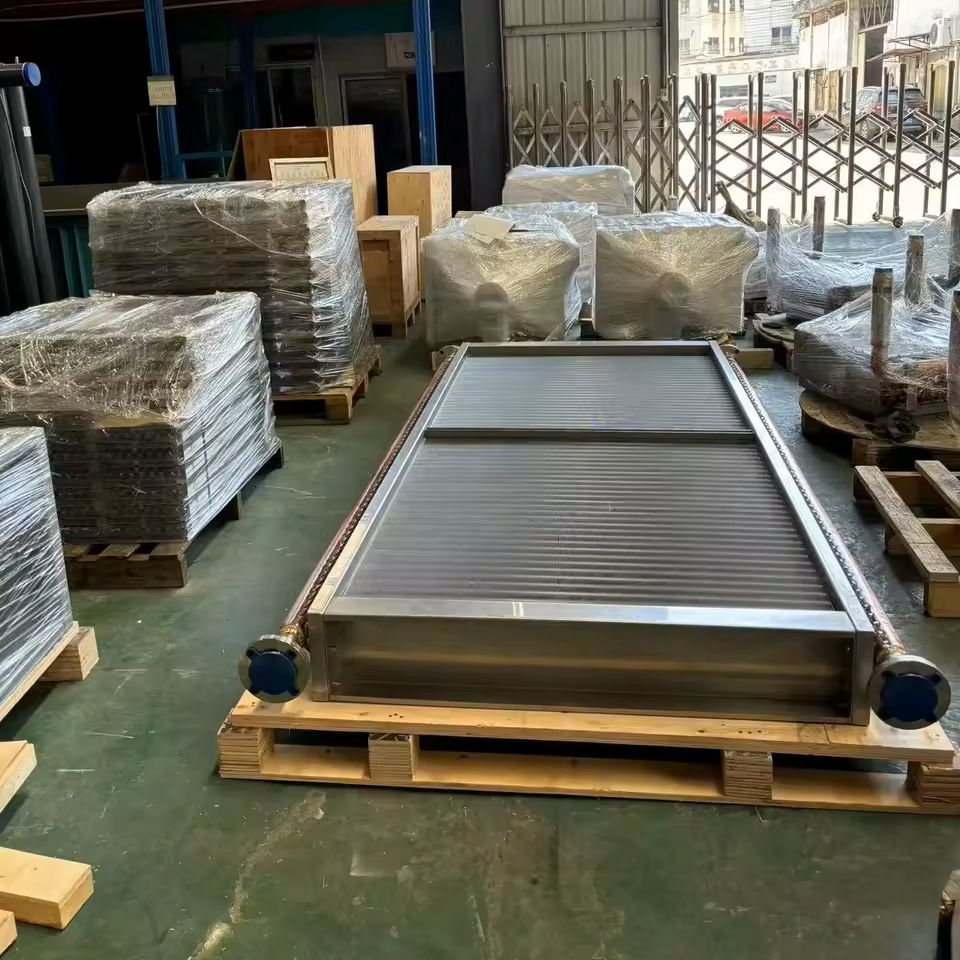

Country: UK
Application: Evaporator coil for fish processing blast freezer
Material: Copper Tube / Wide Pitch Copper Fin

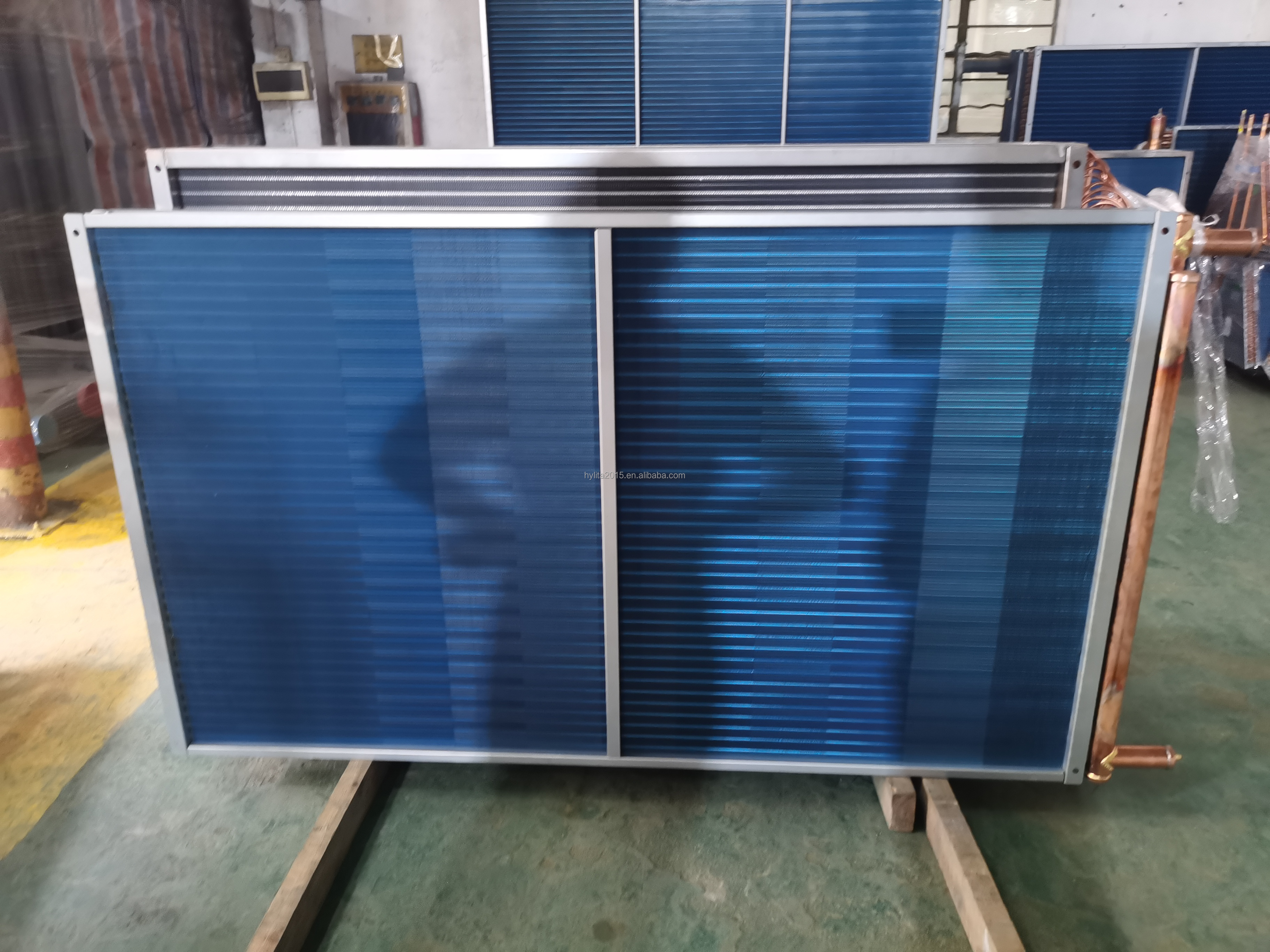

Country: Australia
Application: Corrosion-resistant radiator for seaside hotel
Material: Tinned Copper Fin
Country: Germany
Application: Glycol cooling coil for brewery fermentation
Material: 15.88mm Copper Tube / Copper Fin

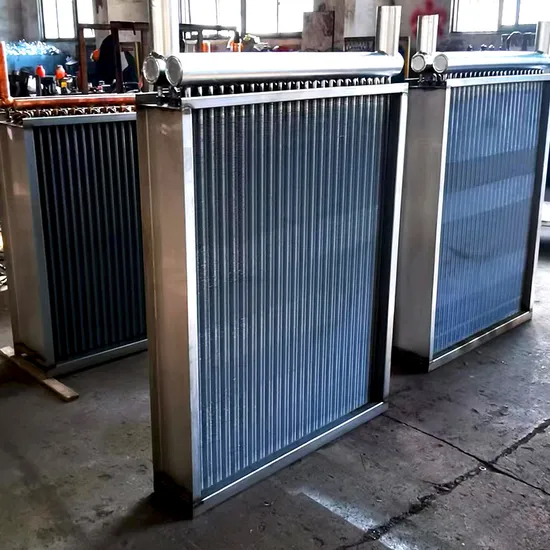

Country: Dubai
Application: High-ambient air cooled chiller condenser
Material: Heavy-wall Copper Tube

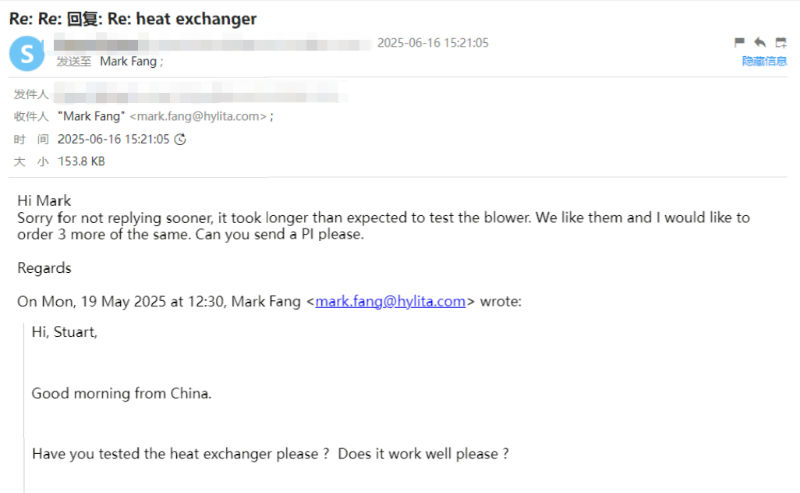

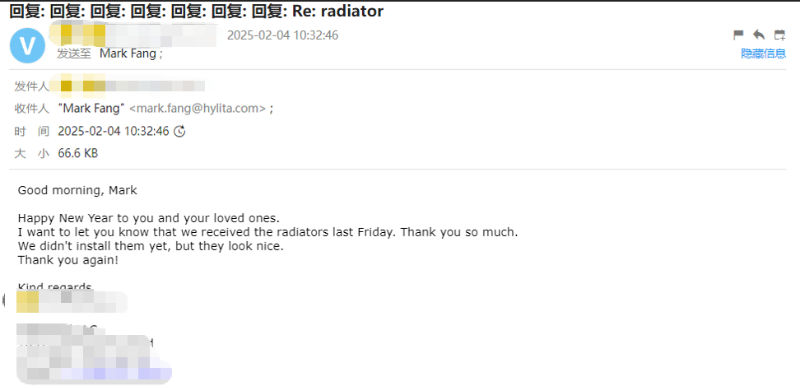

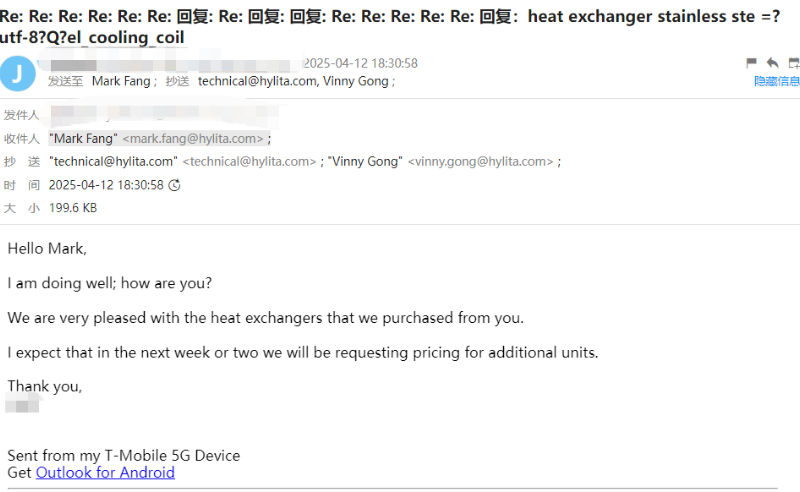

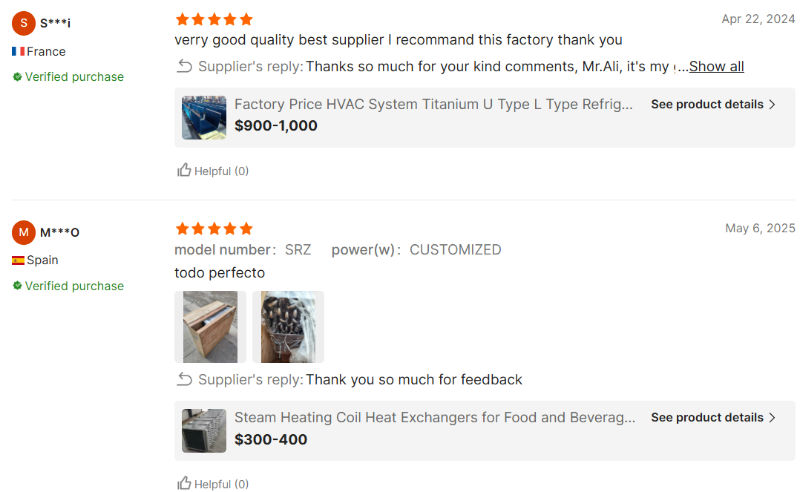

Customer Feedback

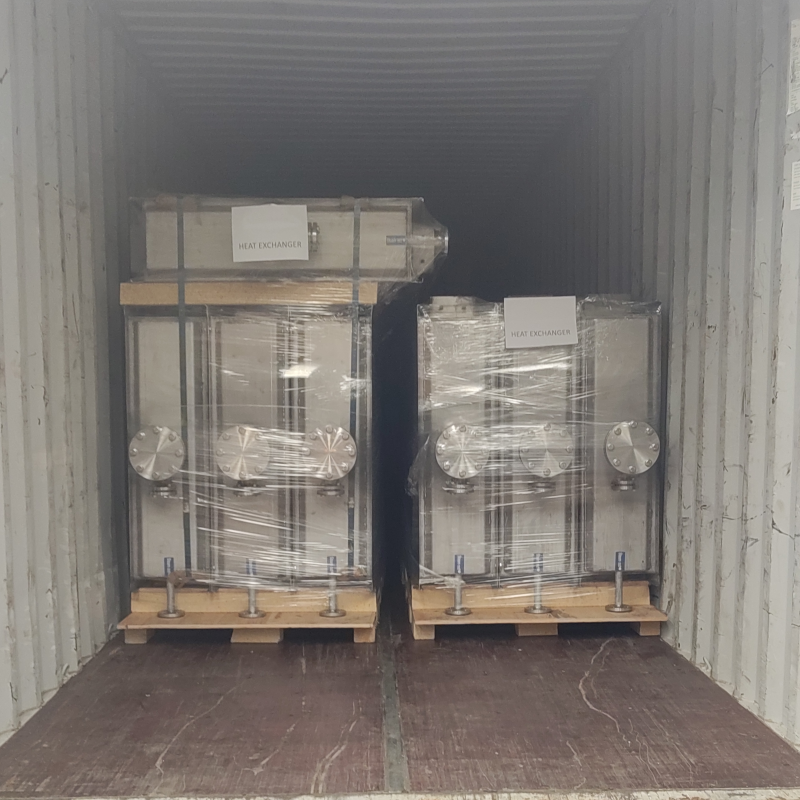

Packing & Delivery

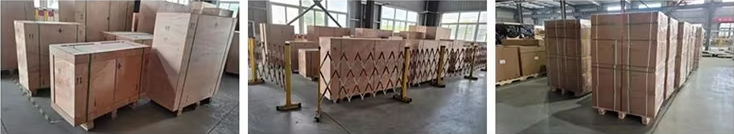

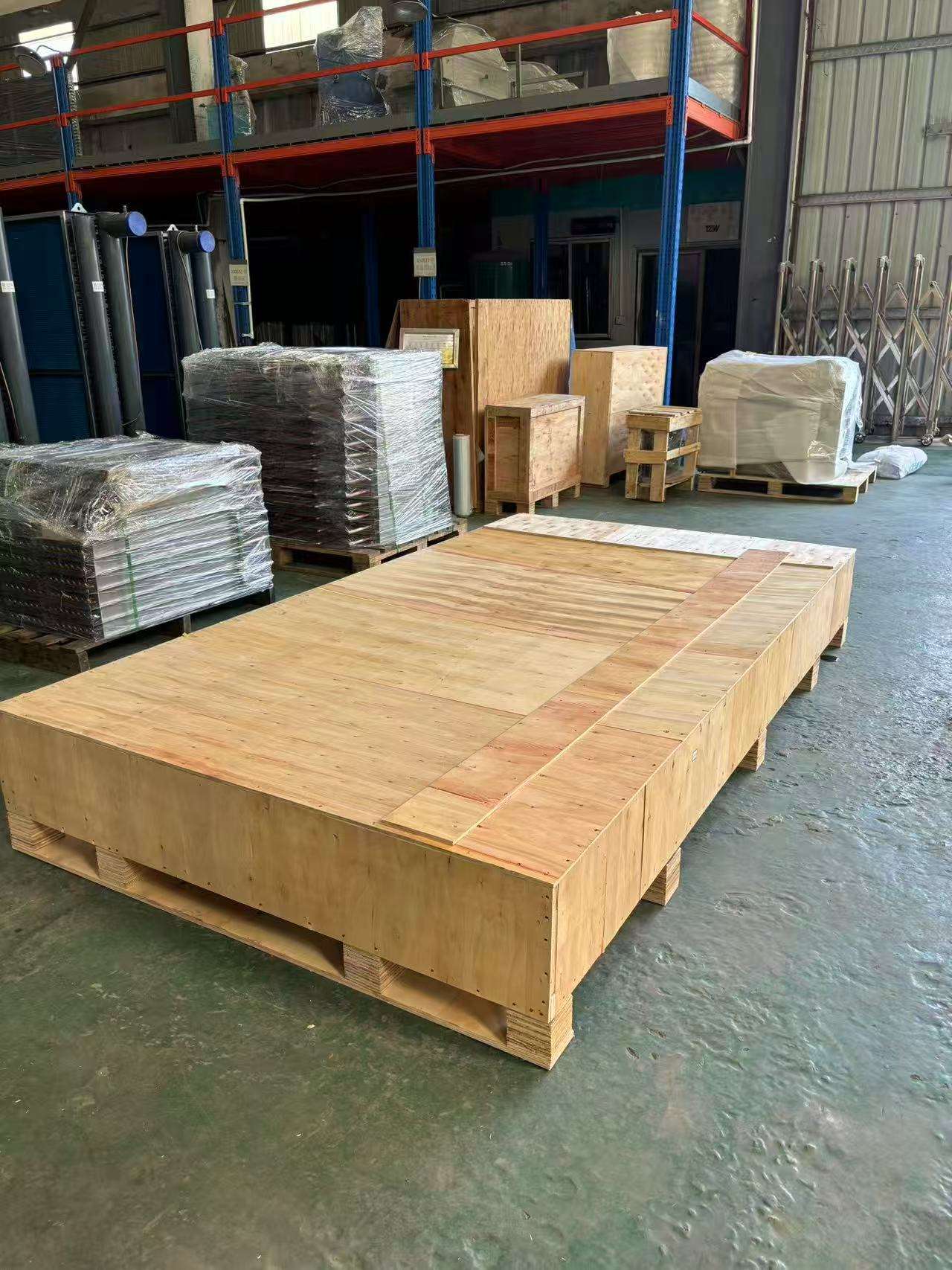

Standard packaging is wooden crates.
For exports to European countries, the wooden crates undergo fumigation treatment.
If container space is limited, we can switch to PE film packaging or accommodate special packaging requests from customers.
Why Choose Our Products
We supply a comprehensive portfolio of heat exchangers serving the industrial, food & beverage, HVAC, marine, air handling and cooling, petrochemical, power generation, and refrigeration sectors.
Tube Fin heat exchanger units are available in both direct-replacement models (100% compatible with OEM specifications) and fully customized configurations engineered to meet specific application requirements.
FAQ
How do you ensure product quality before shipment?

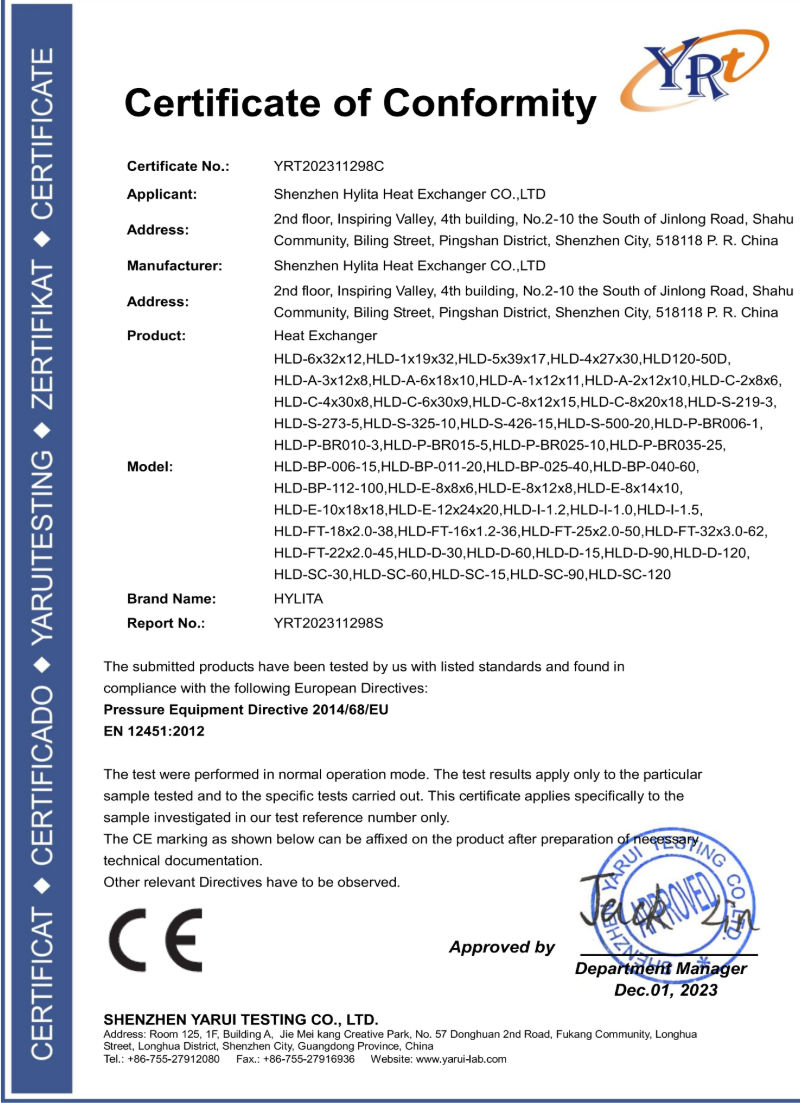

We utilize a strict quality control process: we have over 10 years of manufacturing experience, hold ISO 9001:2015, CE, and ROHS certifications, conduct 100% pressure testing on every single unit before dispatch, and have successfully served clients across more than 50 countries.
I don't have a technical drawing. Can you design a coil for me?
Yes! We utilize HTRI software for precise thermal calculations and sizing. Simply provide us with your operating parameters (such as temperatures and flow rates), and our engineering team will create a professional drawing for your review.
What is your Minimum Order Quantity (MOQ)?
We accommodate both large and small orders. Small order quantities and low MOQ requirements are welcome to suit your specific project needs.
How long is the warranty coverage?
We offer a standard 12-month warranty for all orders. For specific customized orders, extended coverage options up to 24 months are available upon consultation with our team.
Do you support OEM/ODM and custom branding?
Yes, full customization options are supported. We offer custom materials (including Copper, SS304, SS316, and Cu-Ni) as well as laser marking and custom nameplates to display your company branding correctly.
How will I be updated on my order's progress?
We guarantee complete transparency throughout the order lifecycle. We verify all specifications before starting production, send photos and videos of the manufacturing steps, and supply draft shipping documents for review prior to final issuance.
