HoneyComm Configurable 100m Long Range Broadcast Nordic RTLS Healthcare Person Tracking System Button BLE Ibeacon Sensor

1 / 5

HoneyComm Configurable 100m Long Range Broadcast Nordic RTLS Healthcare Person Tracking System Button BLE Ibeacon Sensor

Send Inquiry

Product Description

Bluetooth SOS Button Beacon

Easy-to-Click big button
Easy to Install
Product size: 59.3*34.3*12mm
Long broadcast distance
Support button trigger (SOS button/ Remote control/ Panic button etc.)
Replaceable battery, up to 1 year battery life
Chipset: nRF52 series
LED indicated Light are available

Application Fields:

SOS/Panic Button in hospital
SOS/Panic Button for elderly at home or elderly care in nursing home
SOS/Panic Button in workplace

HCBB50 is a Bluetooth Beacon with SOS button based on low-power Bluetooth chip and powered by CR2032 replaceable battery and the battery life is up to 1 years (in the case of 0 dBm transmission power and 1s broadcast interval).

HCBB50 Can broadcast Bluetooth name, Bluetooth MAC address, UUID, Major, Minor, RSSI @ 1 m, battery level, SOS information, where Bluetooth name, UUID, Major, Minor, transmission power, broadcast interval can be set through the mobile phone APP (HC Connect). All broadcast content can be customized according to customer needs.

HCBB50 broadcast distance is up to 100 meters long (open space visual distance). It is widely used in SOS alarm, nursing home, elder care and other application scenarios.

Product Parameters

Size	59.334.312mm	BLE Version	BLE4.2/5.0
Material	ABS	Protocol	iBeacon/Eddystone
Weight	14g (with battery)	OTA	YES
Battery	Replaceable CR2450 coin battery	Button	1 button
Battery Life	1 Years (0dBm/1s, Ambient temp: 25°C)	LED	1 LED
Range	Up to 100 meters in open space	Working Temp	-40C ~+70C
Chipset	nRF52 series

Product Views

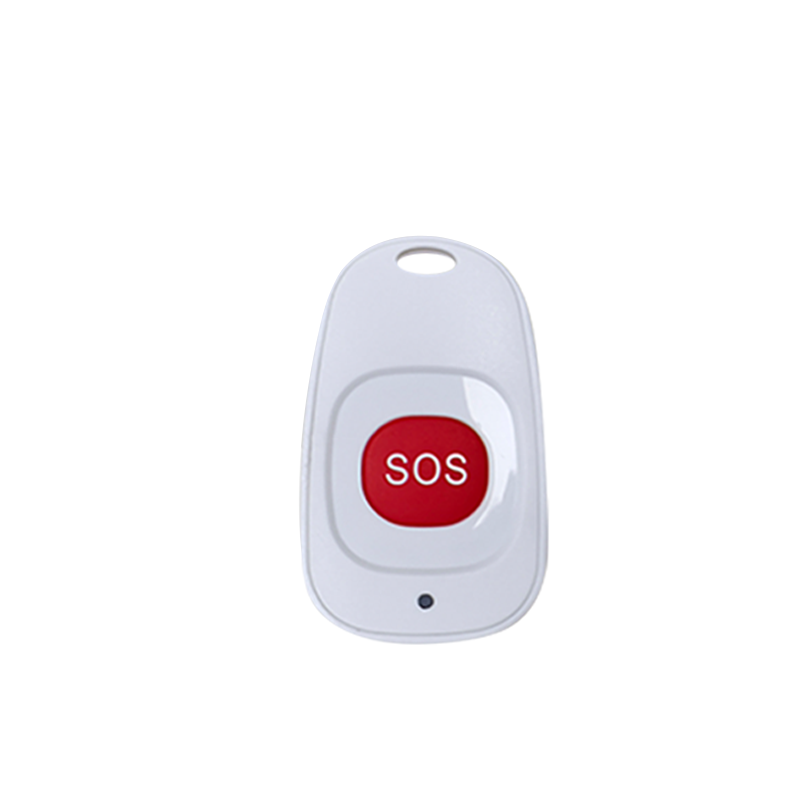

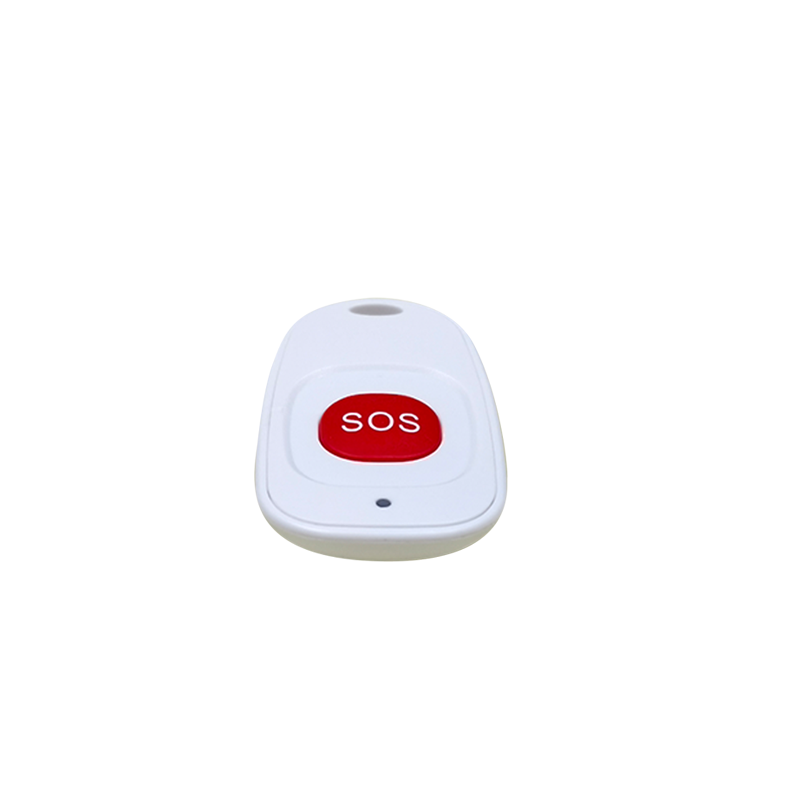

Front View of SOS Beacon

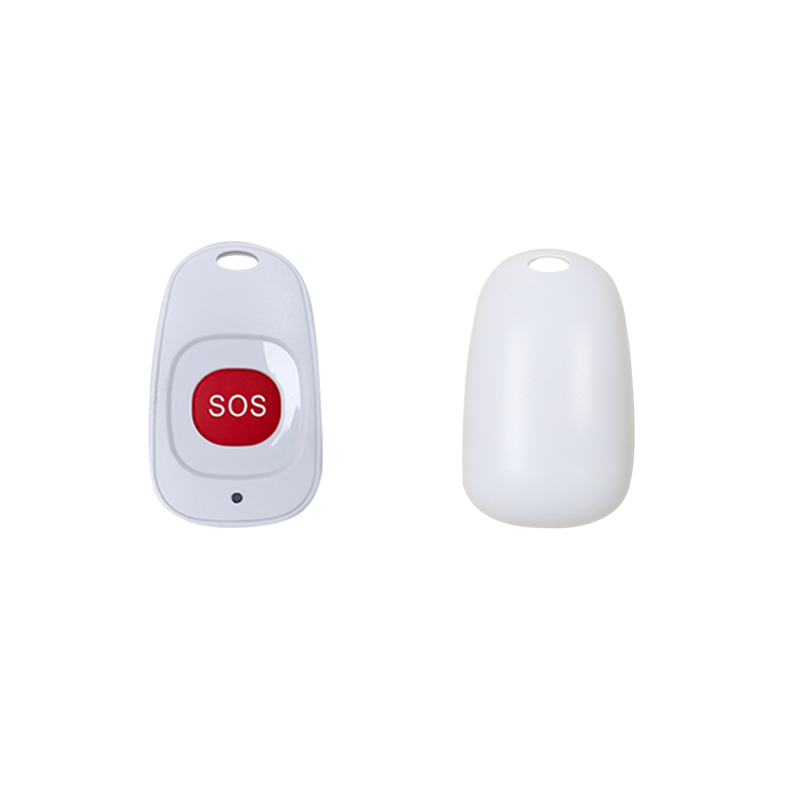

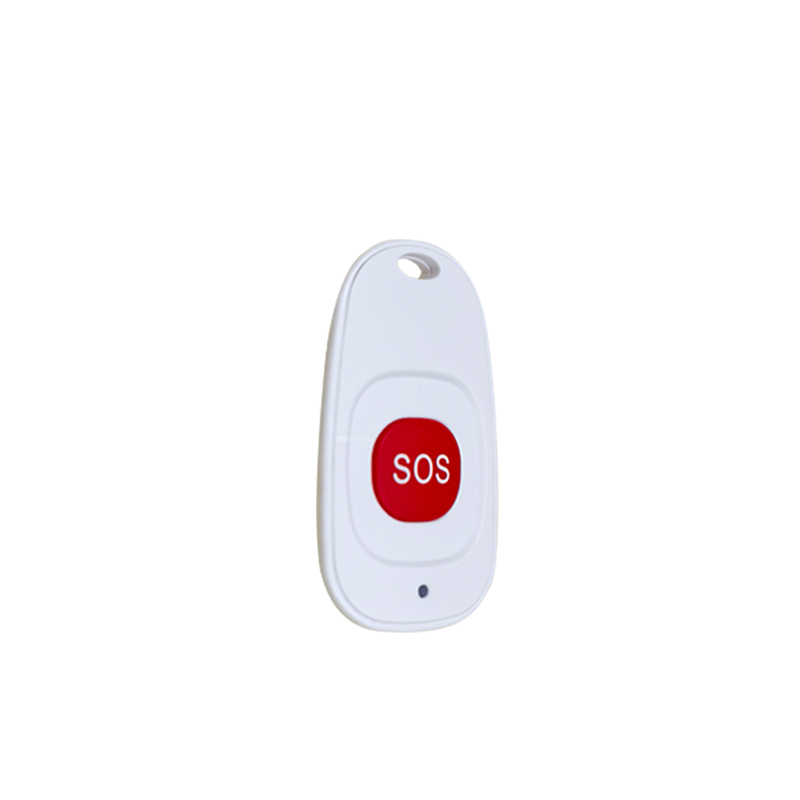

Bluetooth Beacon with SOS Button

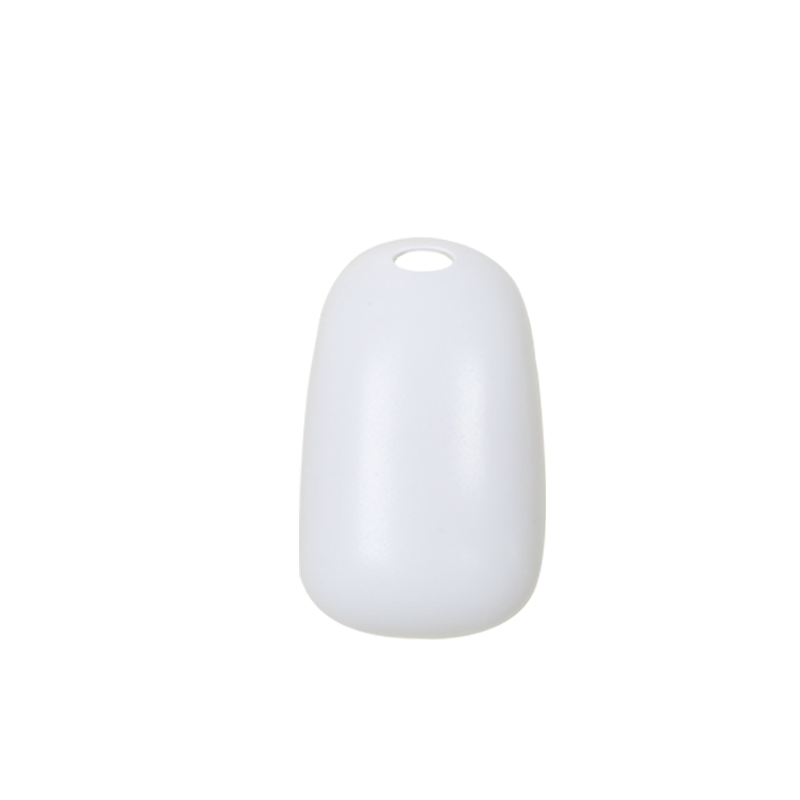

Back View of SOS BLE Beacon

Technical Specifications

Specifications Detail
Communication method	BLE4.2/5.0
Operating mode	Broadcasting data
Transmit power	-40dBm~+4dBm (default 0 dBm)
Broadcast interval	100ms~10s (default 1s)
Working frequency	2400MHz~2483.5MHz
Transmission distance	100 m (open visual distance)
Working temperature	-20°C~70°C
Working humidity	From 10% to 90% without condensation

Production & Quality Showcase

How to get samples?

You can find the product you want and place an order which is ready to ship.
Contact us about qty, model and shipping method.
We are ok to receive sample payment via paypal or reliable platform.
Sample order generally spend 1-2 workdays to ship because flashing firmware and 100% inspection before delivery.
Sample packaging use very small bag with electrostatic protection and small paper hard box.
Generally, using DHL, FEDEX, UPS, TNT/EMS or post air mail for international express delivery.

How do I gain technical support?

Contact us via Email, Skype, Whatsapp or Wechat to get support.
Once customer buying samples from us, we will keep supporting them till the project finished.
We have good resource and technical support from chipset original factory.

Customize HW, FW and OEM board are available?

If our standard module do not meet your demands, we will evaluate and help to customize. MOQ 1Kpcs and 5pcs free samples.
If you do not have power engineering team, we will be your partner with charging a bit fee.
If our module has been adopted on your board, we also can help on manufacturing your board and our modules together.

Why Choose Us?

7*24 Hours Quick Response
Professional, Continuous and Patience Technical Support
Driver, SDK and Development kits Available
20+yrs RF-design experience in HW and FW
6 Production Lines in SMT/EMS
3 out of 1000 defective rate, help customers save costs
Efficient production capacity helps customers seize market opportunities in a timely manner
Second source supply-chain to avoid delivery delay
100% Inspection before delivery
Flashing firmware without any extra fee
Rich OEM/ODM experience with strong engineering team
Low MOQ and samples are available
Digital Enterprise Manages Customer Projects and Orders
Incoming raw materials must be sampled
Regular maintenance and update of fixed assets
Strict electrostatic protection requirements for dust-free warehouses and production lines

Frequently Asked Questions

What is the battery life of the SOS button beacon?

The SOS beacon is powered by a replaceable battery (CR2032/CR2450 options available). Under standard configurations, such as 0 dBm transmission power and a 1-second broadcast interval, the battery life can last up to 1 year.

What parameters can be customized on the beacon?

You can customize the Bluetooth name, UUID, Major, Minor, transmission power, and broadcast interval. These parameters are easily configurable through our mobile phone application.

What is the maximum transmission range of the beacon?

The beacon has a transmission distance of up to 100 meters in open space visual distance.

Do you support hardware and firmware customization?

Yes. We support custom hardware (HW), firmware (FW), and OEM boards. If standard options do not meet your project requirements, we can evaluate and customize them with a minimum order quantity (MOQ) of 1,000 pieces, along with 5 free samples.

How do you ensure product quality before shipping?

We implement a strict 100% inspection process before delivery. Additionally, we enforce rigorous electrostatic protection standards in our dust-free warehouses and production lines, maintaining a low defect rate of less than 3 out of 1000.

What kind of technical support is provided?

We provide professional and continuous technical support from project kickoff to completion. This includes the provision of drivers, SDKs, development kits, and direct technical backing from the original chipset manufacturers.
