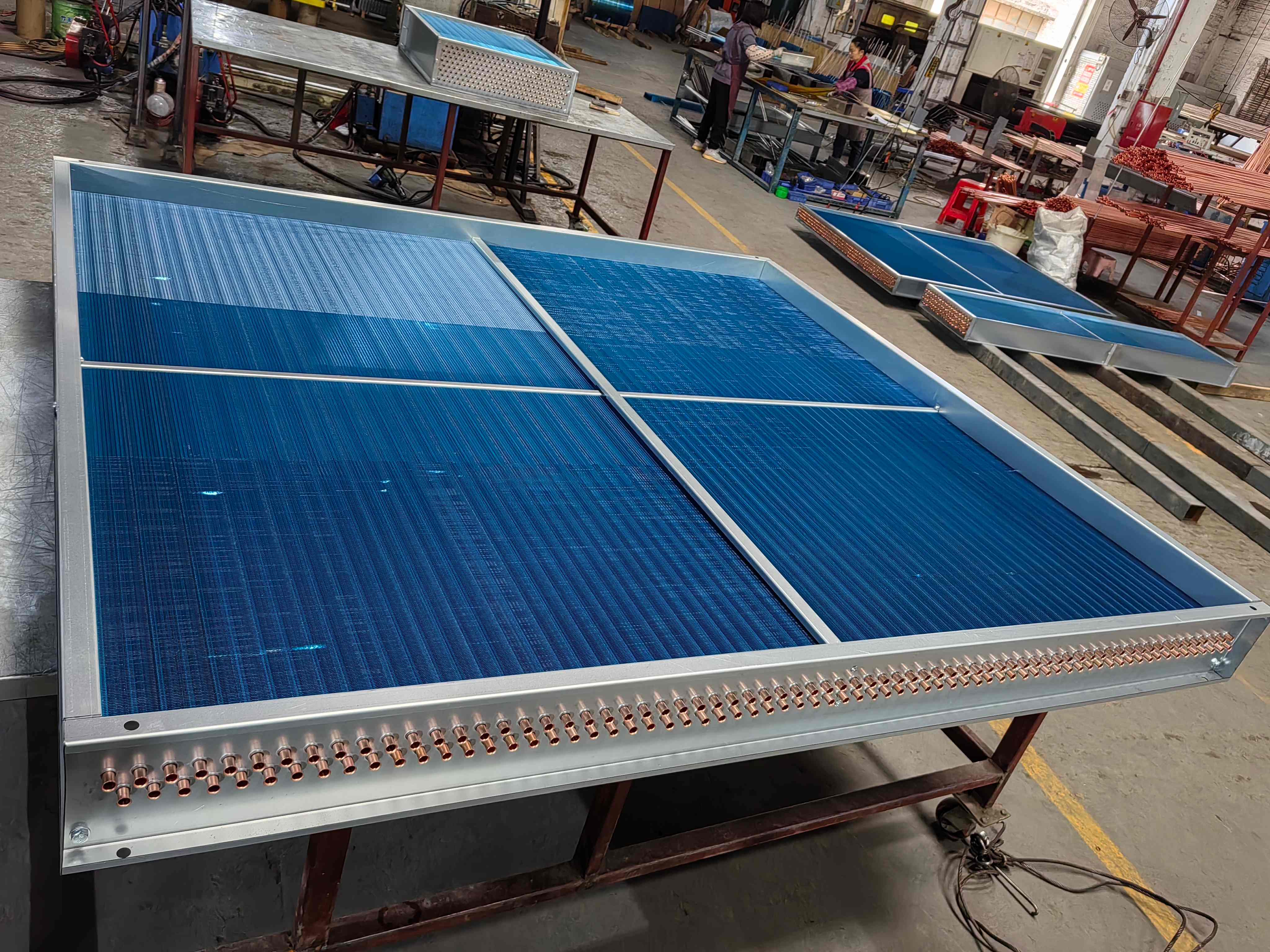

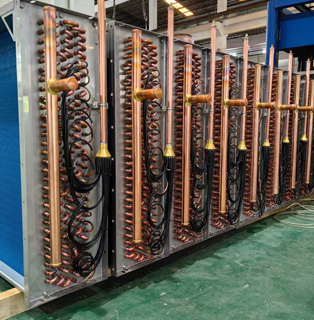

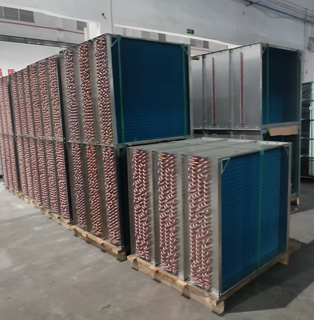

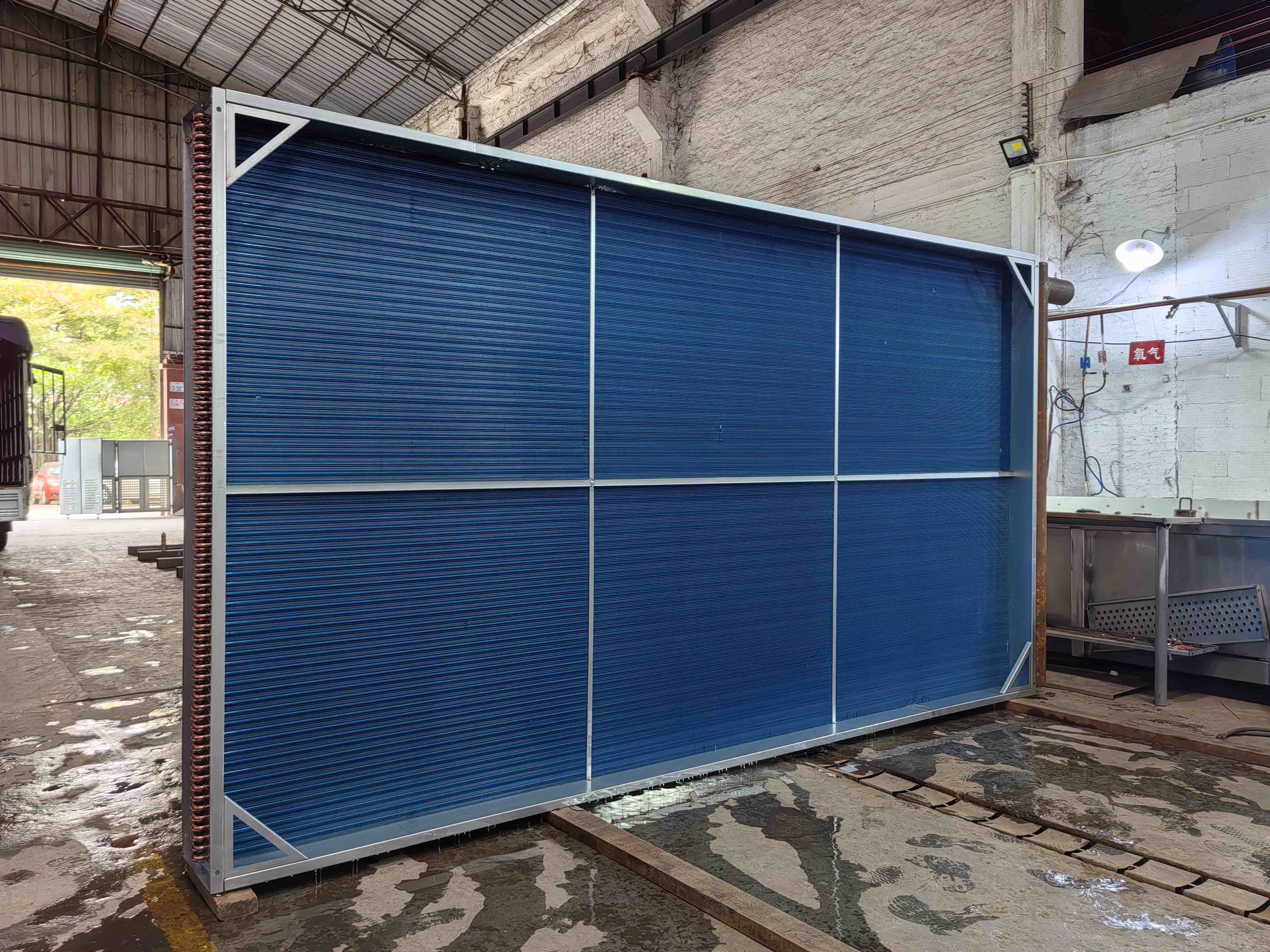

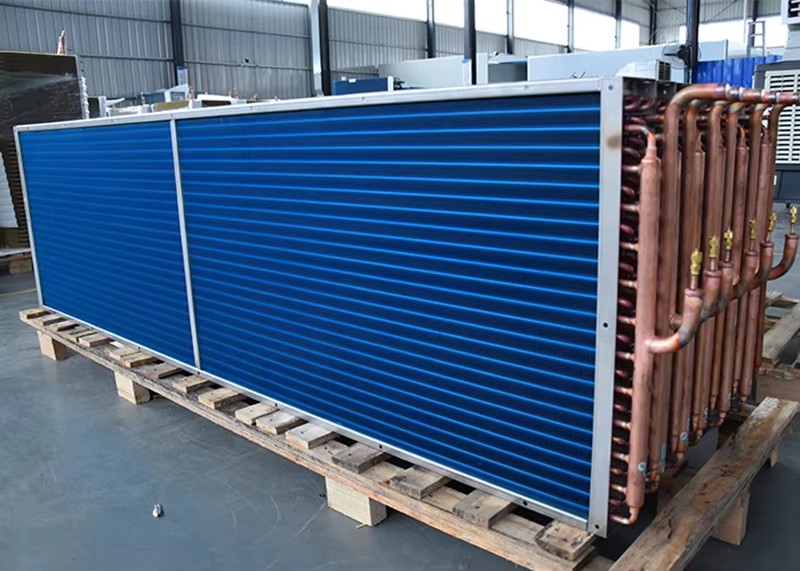

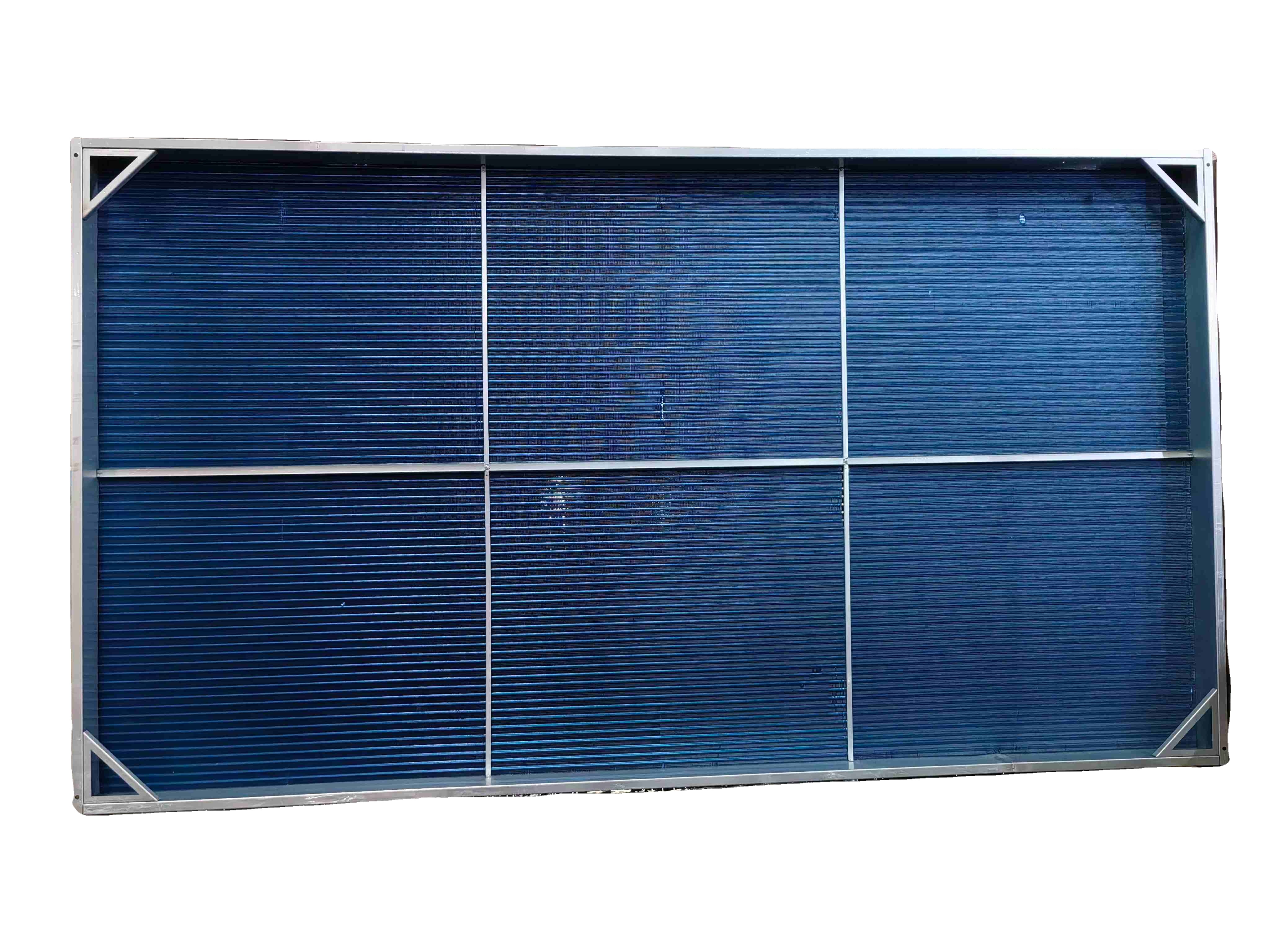

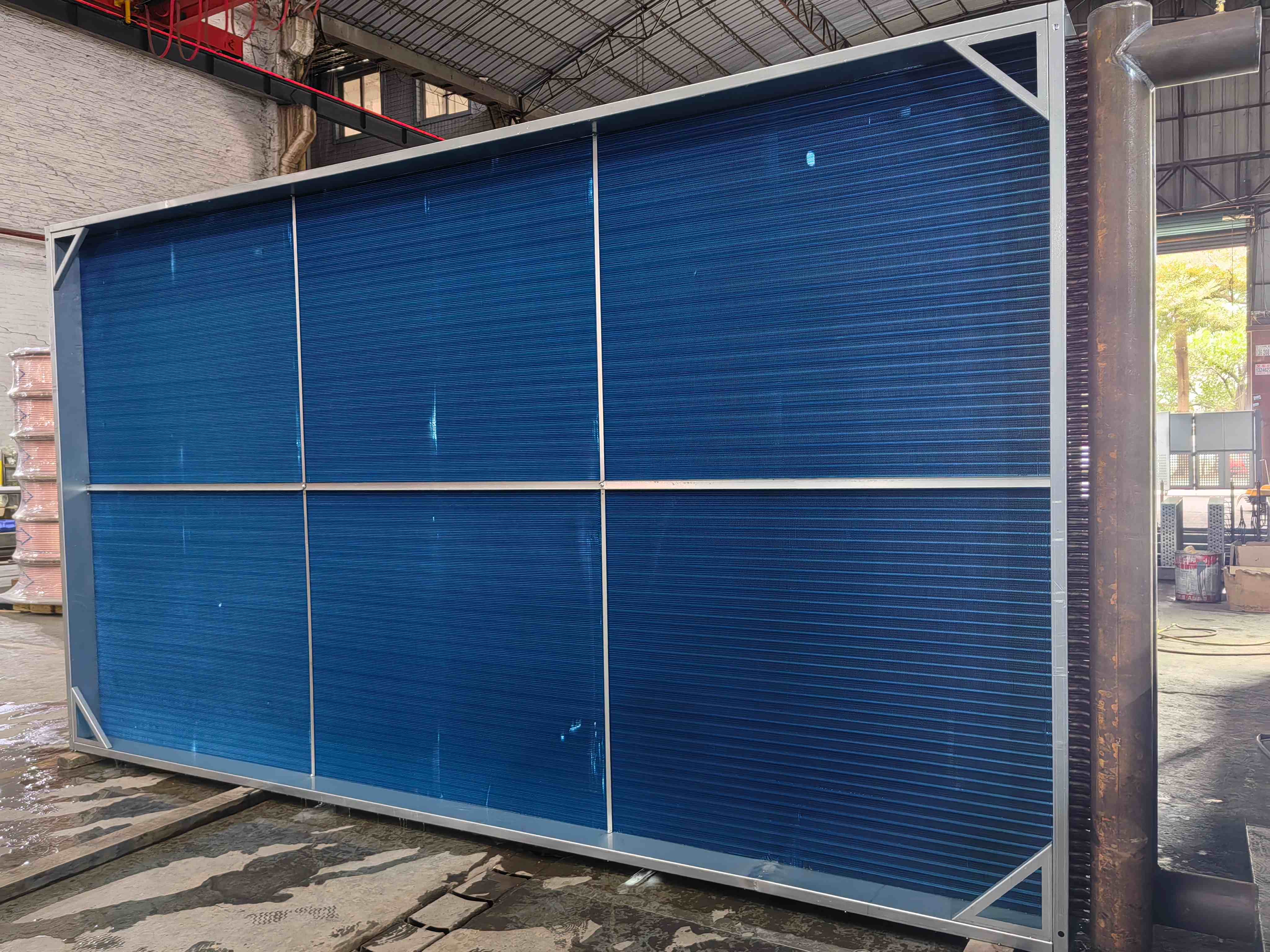

Tube Fin Condenser and Evaporator Heat Exchanger
Tube Fin Condenser and Evaporator Heat Exchanger is one of Our Main Products.
It is widely used in HVAC, refrigeration, cold storage, and industrial cooling systems to deliver high-efficiency heat transfer and stable performance under demanding conditions.
Advantages of Tube Fin Condenser and Evaporator Heat Exchanger
1
Energy Efficiency
30-50 Percent higher efficiency achieved by optimized tube-to-fin contact maximizes heat transfer.
2
Compact System Design
Small footprint fits tight mechanical spaces and equipment cabinets.
3
Stable Thermal Performance
Maintains consistent operation under continuous high load conditions.
4
Custom Dimensions
Coil dimensions fin density and tube layout can be tailored to project needs.
5
Reliable Manufacturing Quality

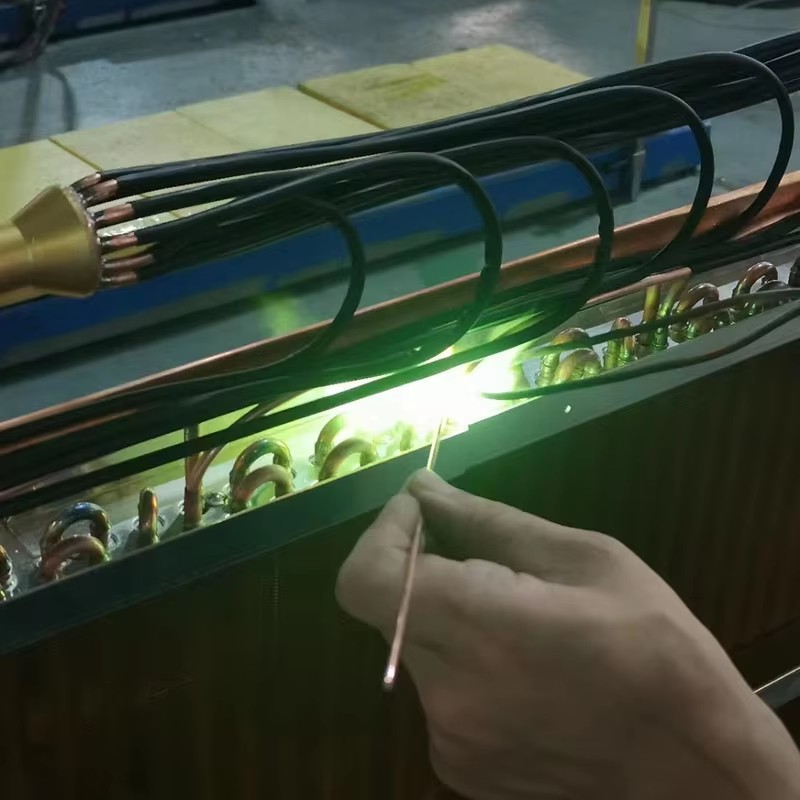

Precision brazing and strict leak testing ensure long term reliability.

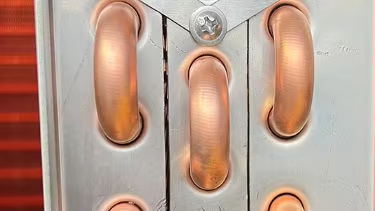

Heat Exchanger Tubes:
- Copper, Stainless steel, Aluminium, Hot deep carbon steel, Titanium
- 7 mm, 5/16“, 3/8“, 12 mm, 1/2“, 5/8“, 20mm, 25mm
- Smooth, Smooth thick-walled, Grooved, Super grooved (deeper grooves)
Heat Exchanger Fins:
- Aluminum
- Copper
- Stainless steel
- Hot deep carbon steel
- Titanium Hydrophilic, Epoxy coated, bare coating

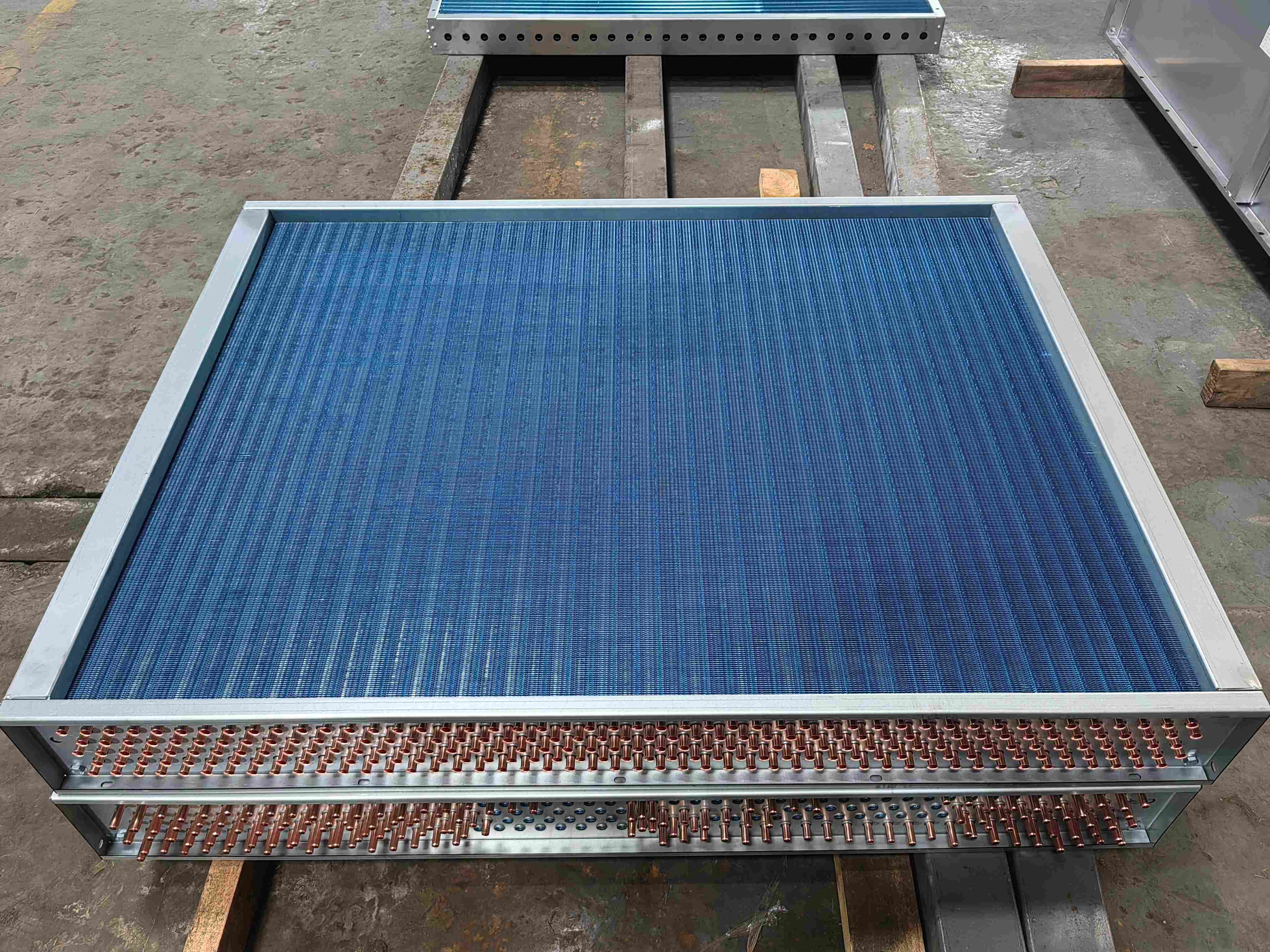

Heat Exchanger Plate & Frame:
- Thick. 1 – 3 mm
- Galvanized steel
- Aluminium
- Stainless steel
- Copper
- Brass
Get to Know the Evaporator and Condenser:
Evaporators are heat exchangers used to enable another fluid from waste gases or similar fluids to pass from liquid state to gas state at high temperatures.
Condensers are heat exchangers produced for the purpose of condensing secondary refrigerant or gas fluids by utilizing the energy of the process air.
Key Attributes & Features
- Superior Heat Transfer Coefficient: Uniquely designed fins continuously disturb the fluid boundary layer, effectively increasing the heat transfer coefficient. This, combined with ultra-thin, high-conductivity fins, ensures the equipment achieves industry-leading high efficiency and significant energy savings.
- Space Optimization: Utilizing extended secondary heat transfer surfaces, our tube-fin exchangers achieve an ultra-compact structure. Heat transfer area density can reach up to 1000 m² per cubic meter, ensuring maximum capacity in minimal space.
- Significant Weight Advantage: The compact structure and high-strength aluminum alloy construction drastically reduce unit weight, lowering freight costs and simplifying on-site installation. Models in steel, copper, and composite materials are also mass-produced to meet custom material specifications.
- Multi-Fluid Adaptability: Easily applies to Gas-Gas, Gas-Liquid, Liquid-Liquid, and Phase-Change heat transfer. Our flow path design supports complex conditions like Counter Flow, Cross Flow, and Multi-Pass flow.
International Project Engineering Cases
Kuwait Project

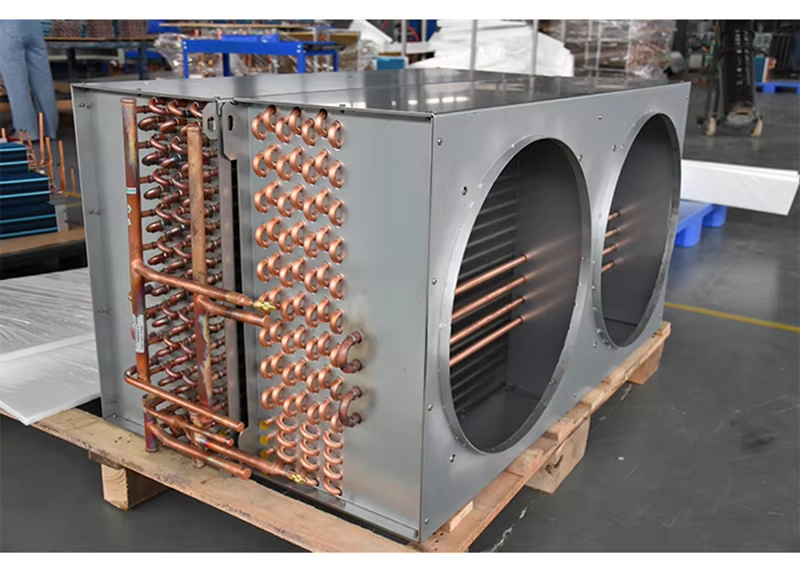

France Project
Czech Republic Project
Portugal Project

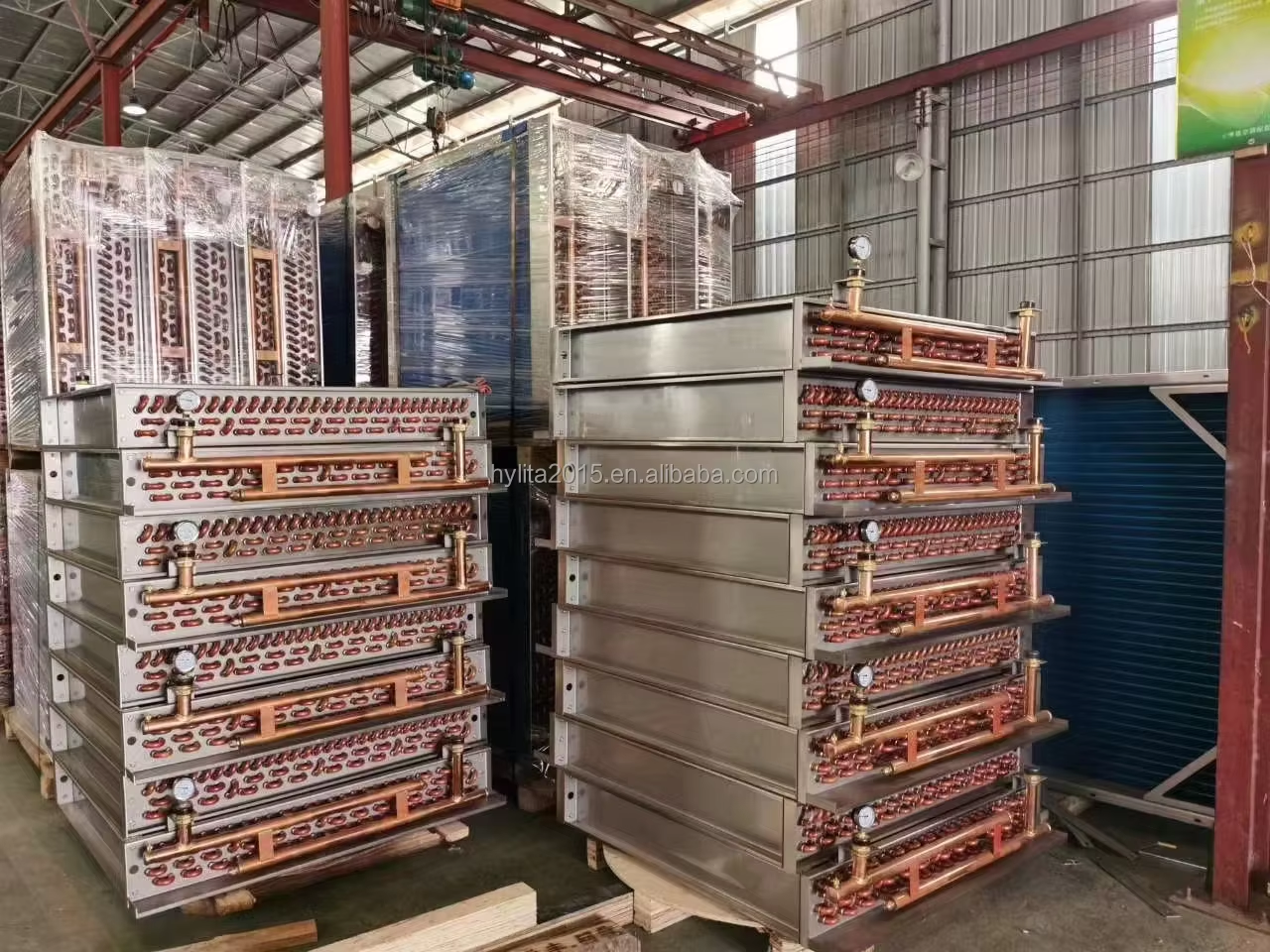

Vietnam Project

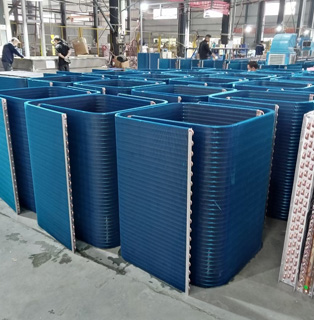

Republic of Korea Project
Cambodia Project

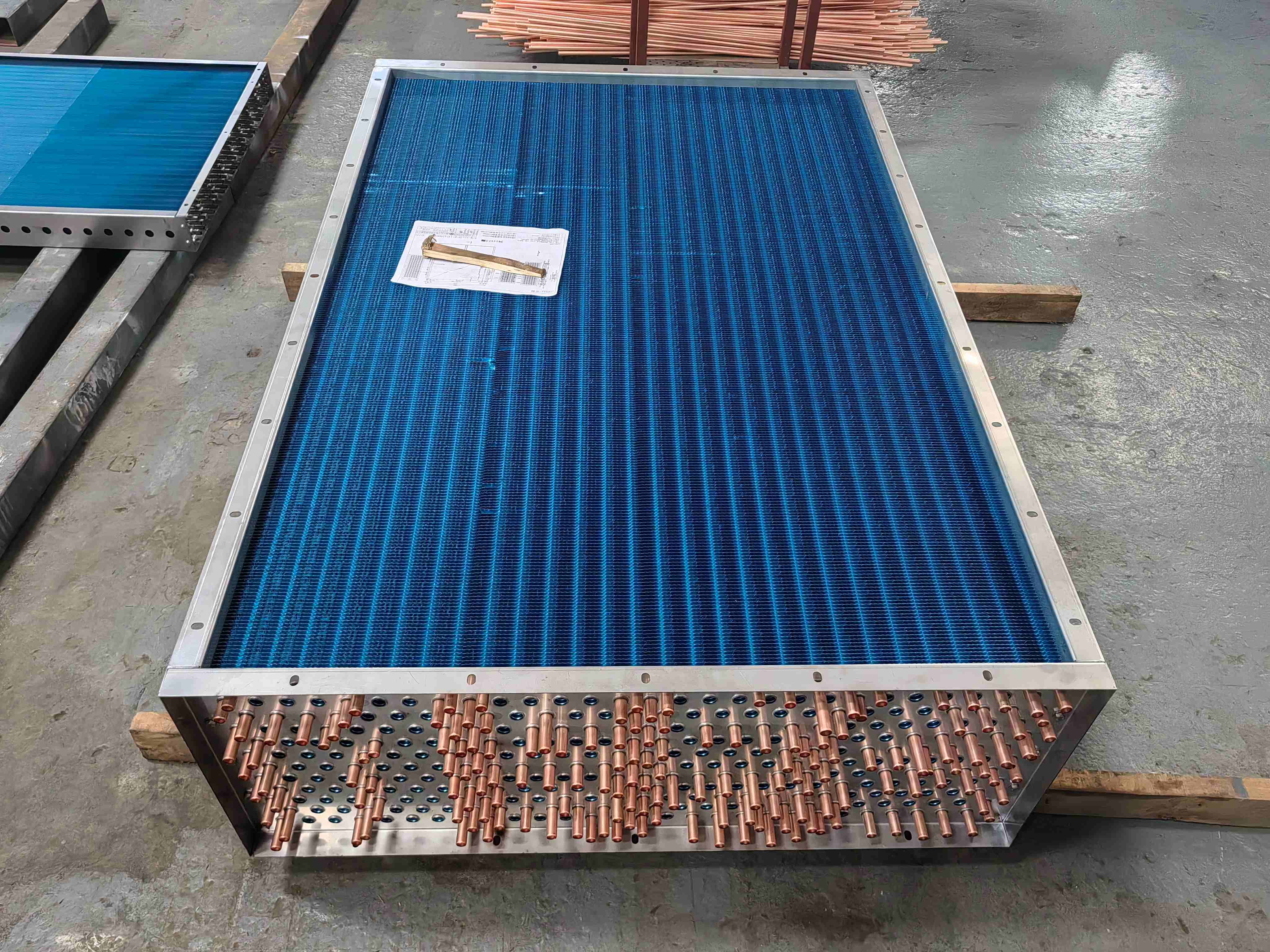

United Arab Emirates Project

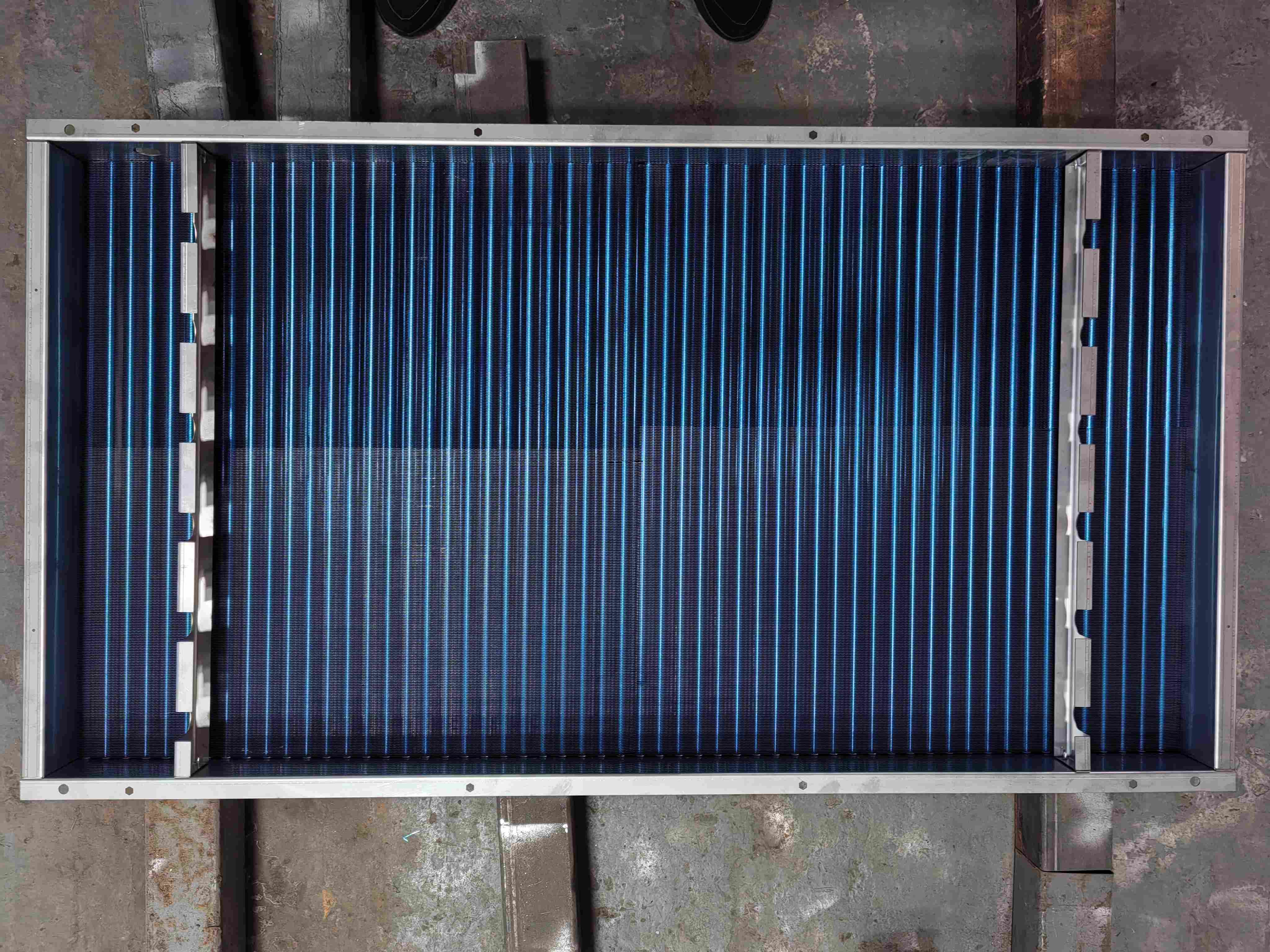

Turkey Project
Professional Applications of Tube Fin Condenser and Evaporator Heat Exchanger:
- Chemical Reactors – Precise Feed Gas Preheating
- Industrial Hydraulic Systems – Hydraulic Oil Cooling
- Lubricating Oil Systems – Oil Temperature Control
- Petrochemical Processing – Crude Oil Preheating
- Power Generation – Turbine Lube Oil Cooling
- HVAC & Refrigeration – Chilled Water Condensing
- Food & Beverage – Pasteurization & Sterilization
- Waste Heat Recovery – Thermal Energy Utilization
- And more...
Industry Coverage & Product Offerings:
We supply a comprehensive portfolio of heat exchangers serving the industrial, food & beverage, HVAC, marine, air handling and cooling, petrochemical, power generation, and refrigeration sectors.
Shell & Tube Heat Exchangers units are available in both direct-replacement models (100% compatible with OEM specifications) and fully customized configurations engineered to meet specific application requirements.

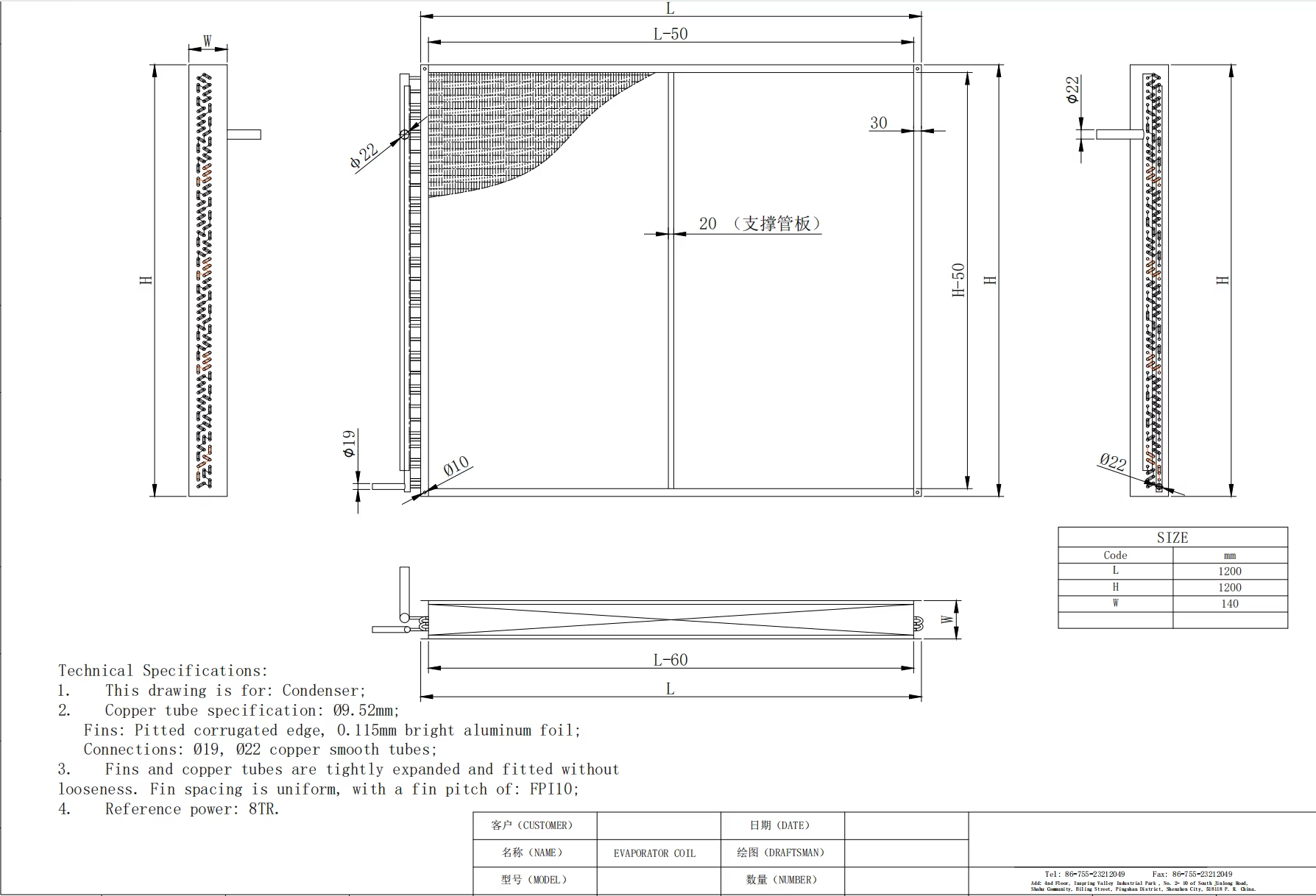

Engineering Design
We exclusively utilize HVAC design software from a renowned European software provider.
With 8 years of strategic partnership, we have successfully designed, manufactured, and exported dry coolers to over 30 countries worldwide.
Customer feedback consistently confirms that actual cooling performance aligns precisely with theoretical design values.
We can provide detailed drawing after your order. We can also provide Custom services.
Material Specifications & Applications
| Material |
Key Properties |
Typical Applications & Standards |
| Carbon Steel |
High mechanical strength, cost-effective |
Widely adopted for shells in industrial systems (e.g., ASME SA-516 Gr. 70), suitable for non-corrosive environments and moderate temperatures (<300°C). |
| Stainless Steel |
Excellent corrosion resistance (e.g., SS304/316), good thermal performance |
Ideal for chemical, food processing, and HVAC systems (ASTM A240), resistant to chloride-containing fluids (e.g., < 1000 ppm Cl⁻). |
| Nickel Alloys |
Superior resistance to extreme corrosion (e.g., Inconel 600/625, Hastelloy C-276) |
Selected for high-temperature (>800°C) or aggressive environments (e.g., sulfuric acid, seawater desalination), compliant with NACE MR0175/ISO 15156. |
| Copper Alloys |
High thermal conductivity (e.g., CuNi 70/30, Brass) |
Common in condensers and cooling systems with non-corrosive water (ASTM B111), limited to < 150°C and non-ammonia environments. |
| Titanium |
Exceptional corrosion resistance (e.g., Grade 2/Grade 7) |
Critical for seawater applications (e.g., marine, offshore platforms), resistant to chlorides, acids, and biofouling (ASTM B338 Gr.2). |

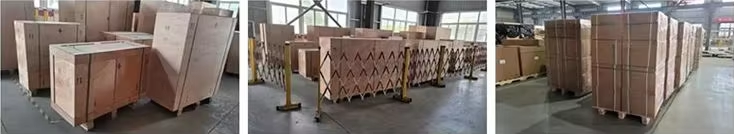

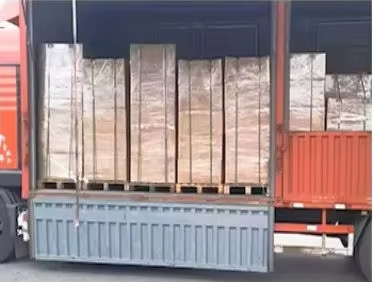

Packing & Delivery
Standard packaging is wooden crates. For exports to European countries, the wooden crates undergo fumigation treatment. If container space is limited, we can switch to PE film packaging or accommodate special packaging requests from customers.
Frequently Asked Questions
Are secure online orders supported for purchase protection?
Yes, online trade assurance orders are welcome to protect your transactions and ensure high-quality service.
What is the Minimum Order Quantity (MOQ)?
We accommodate custom demands and welcome small orders to suit your project requirements.
What is the warranty period for the heat exchanger orders?
We offer a standard one-year warranty on all products. Extension to a two-year warranty is available for specific custom orders.
What support services do you provide during the order process?
We confirm all technical details before payment, provide regular progress updates with photo and video references, and supply draft documents for review before formal shipping documents are issued.
How do you manage product quality control?

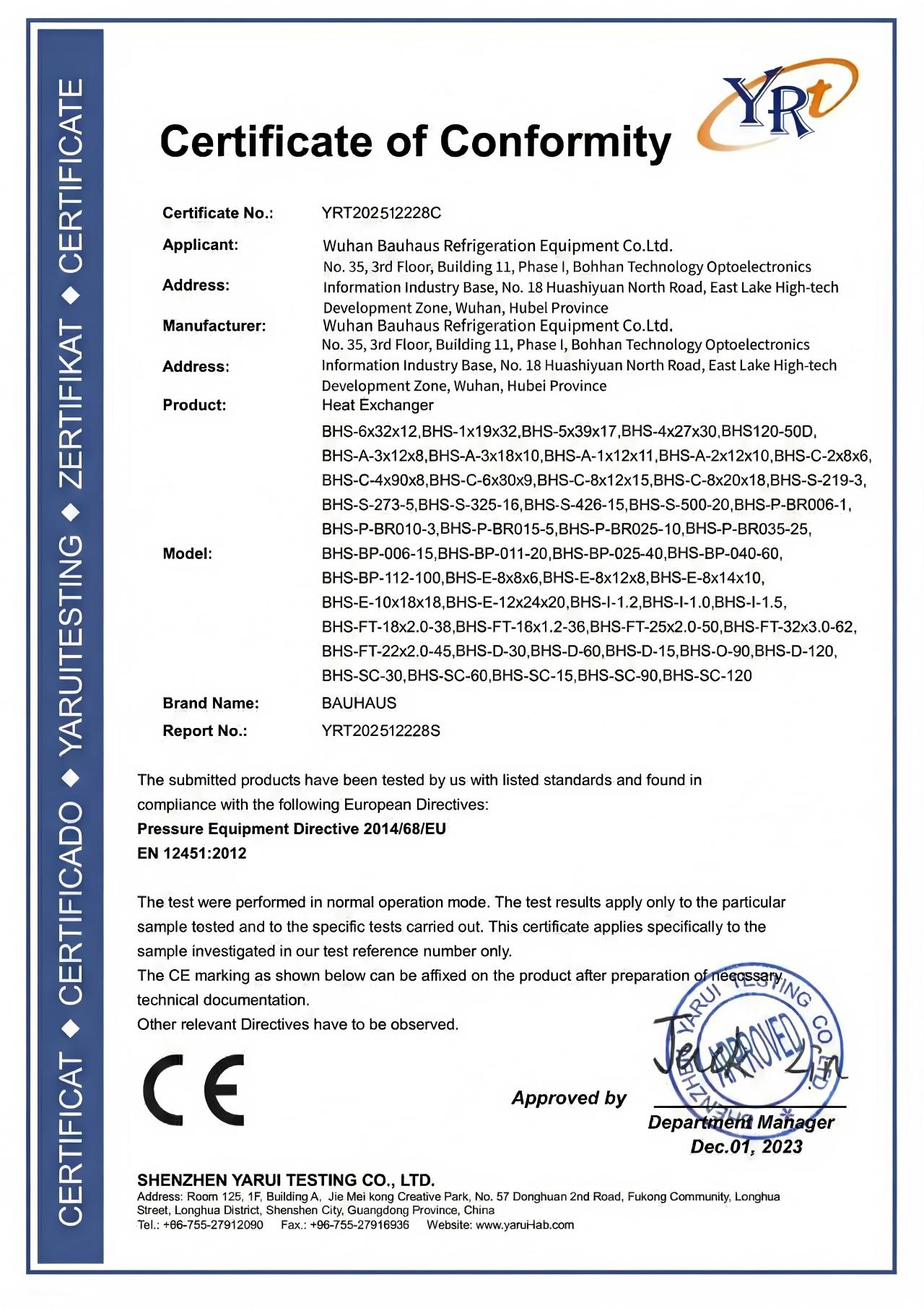

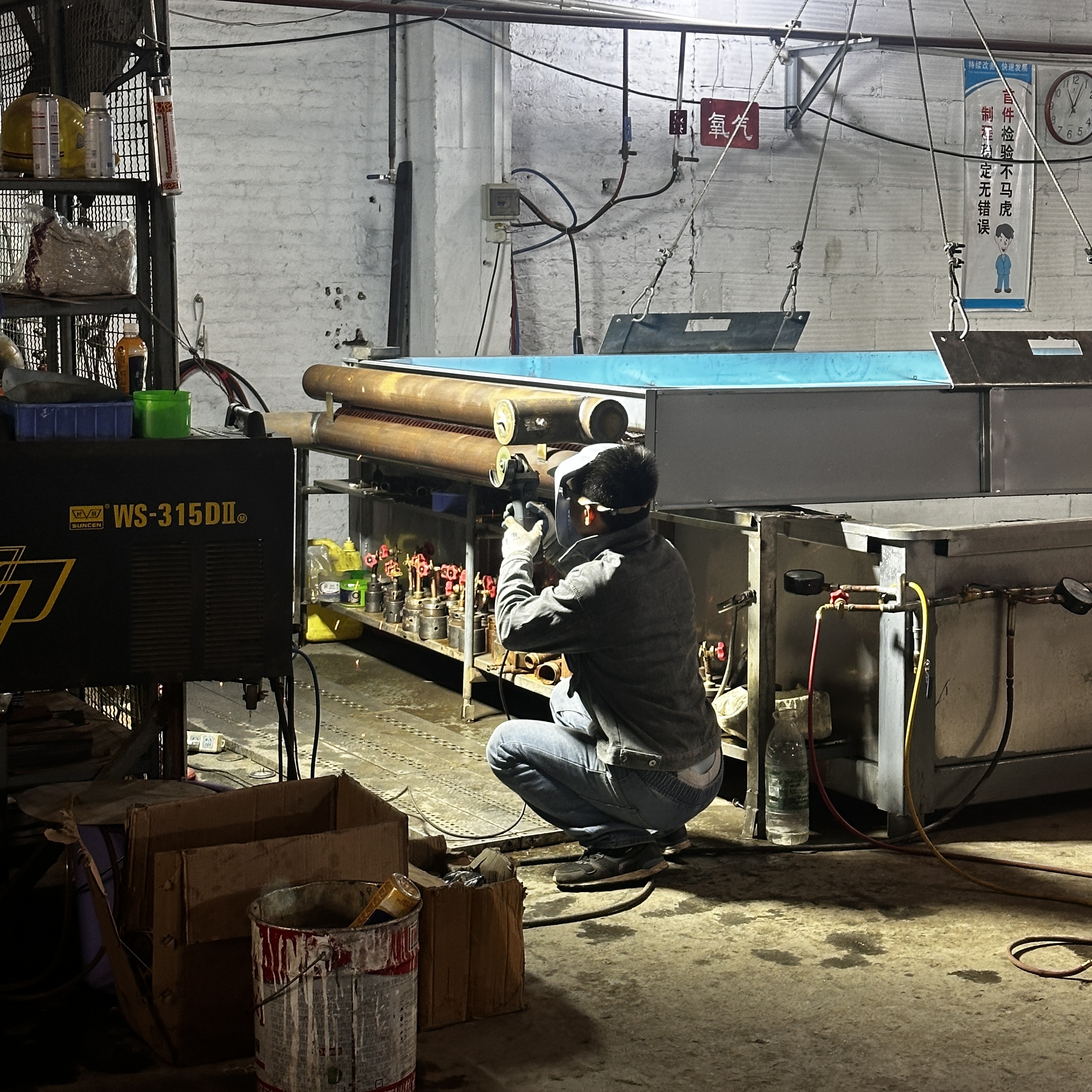

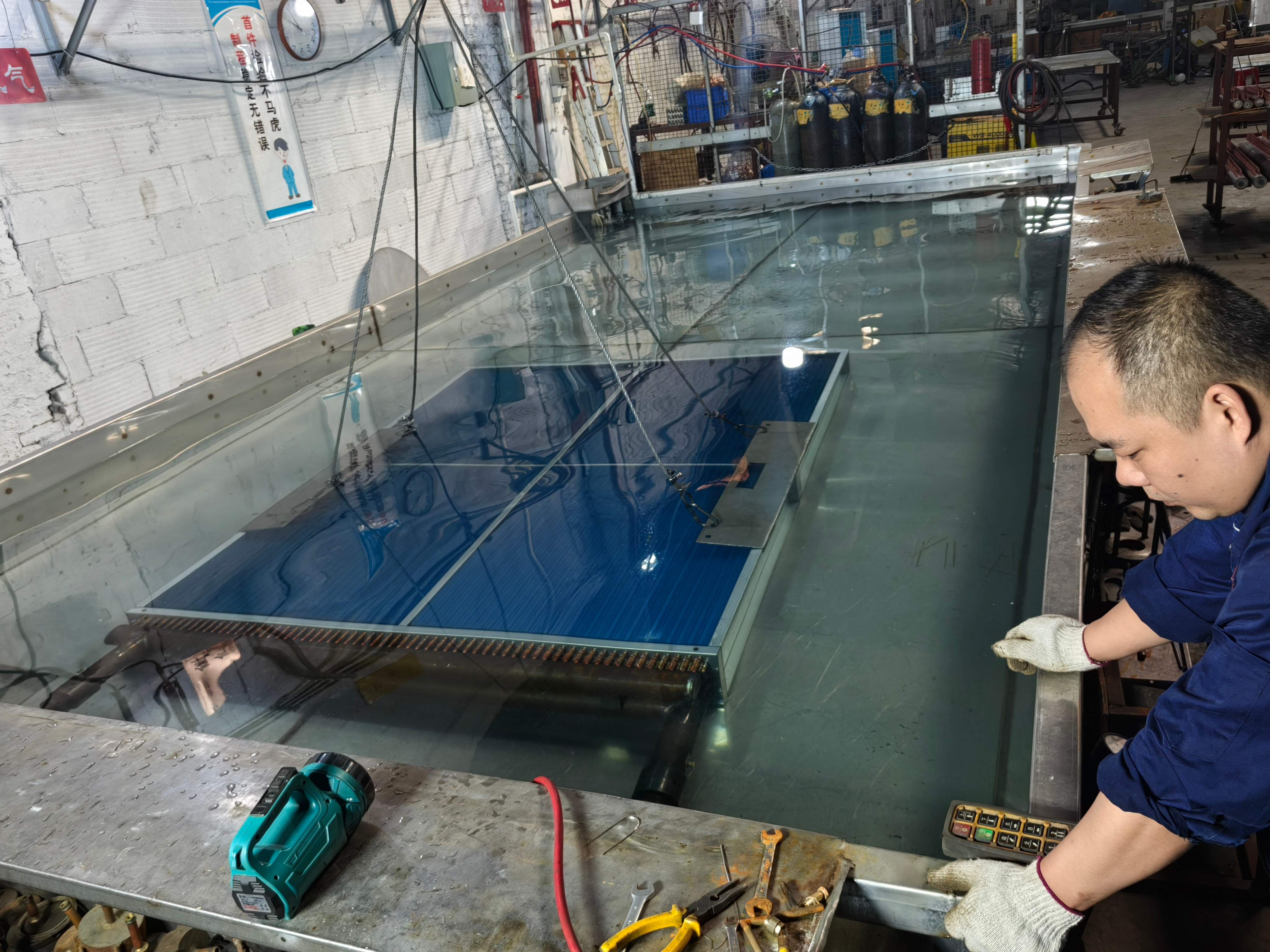

Our production is ISO 9001 certified. We follow strict quality controls, and all units undergo 100% leak and pressure testing before shipment.
What are your main heat exchanger products?
We specialize in air heat exchangers, surface coolers, evaporator and condenser coils, shell and tube heat exchangers, plate heat exchangers, finned tubes, and relevant heat exchange accessories.
