Send Inquiry

Product Description

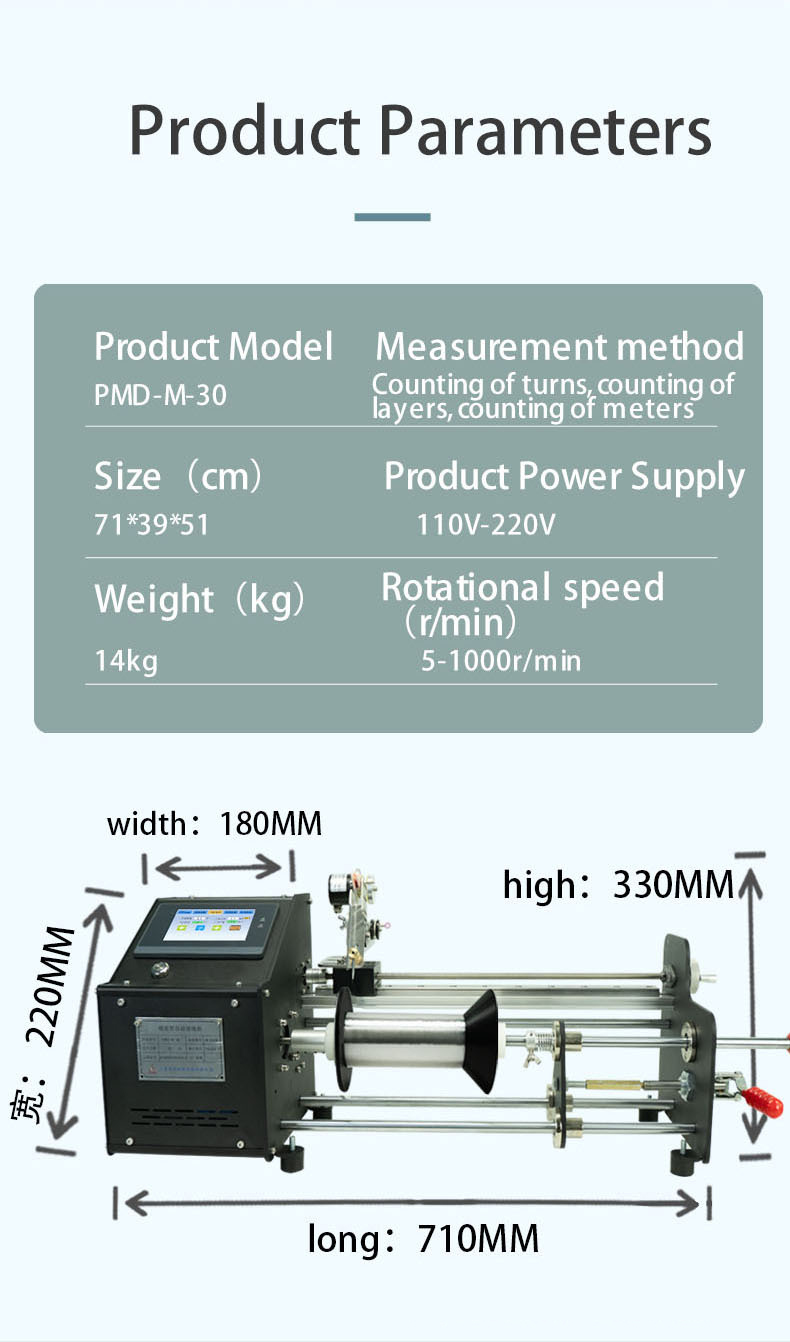

Technical Specifications

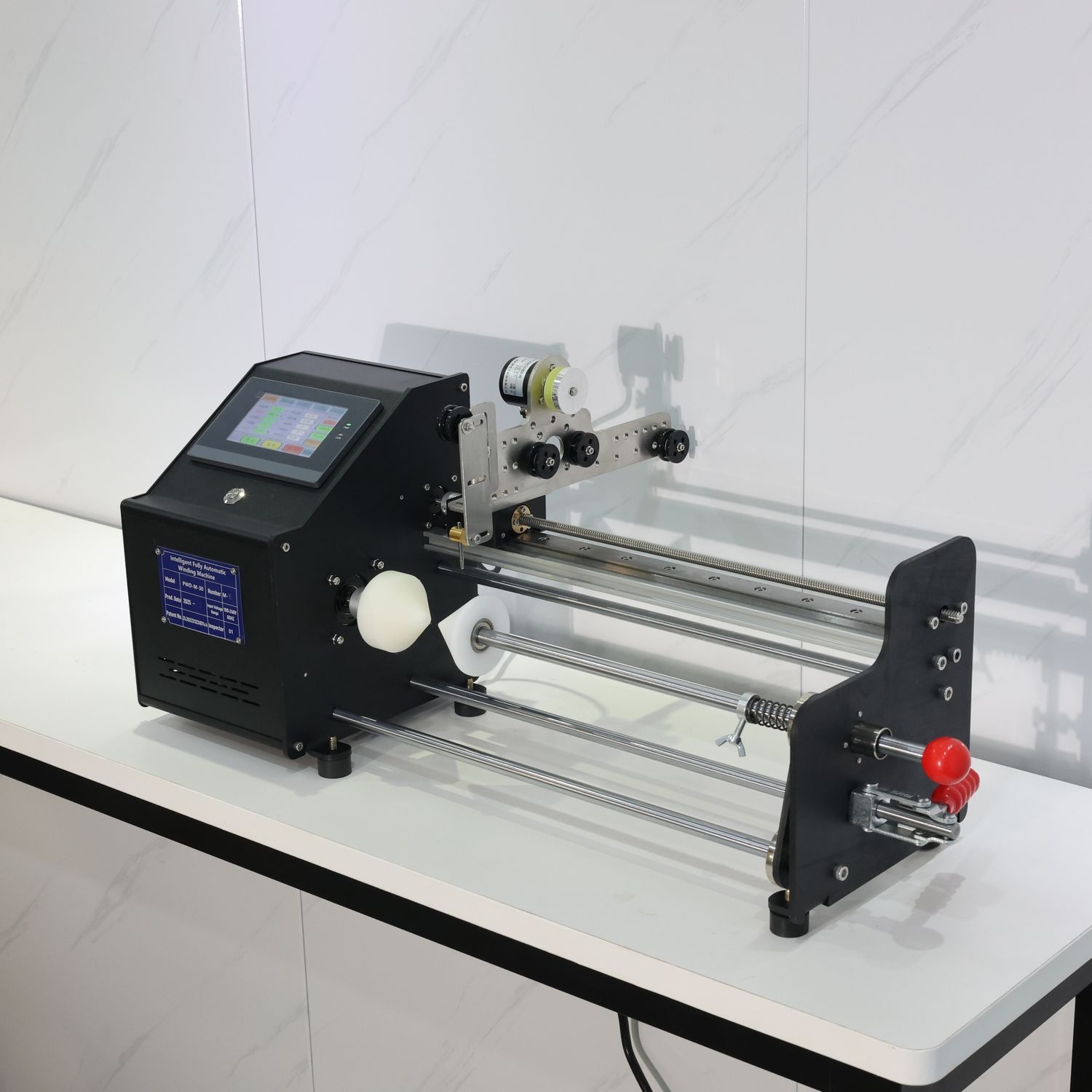

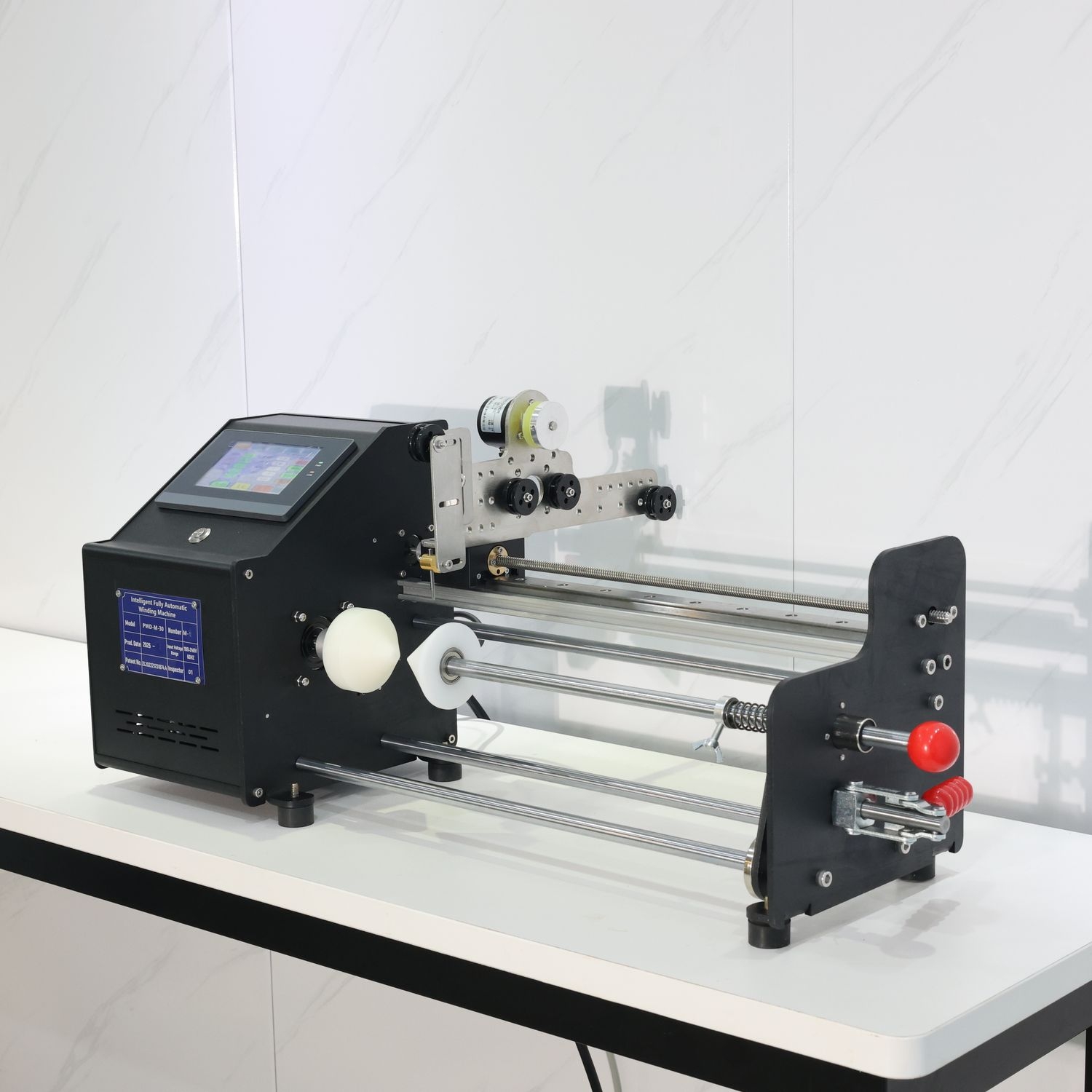

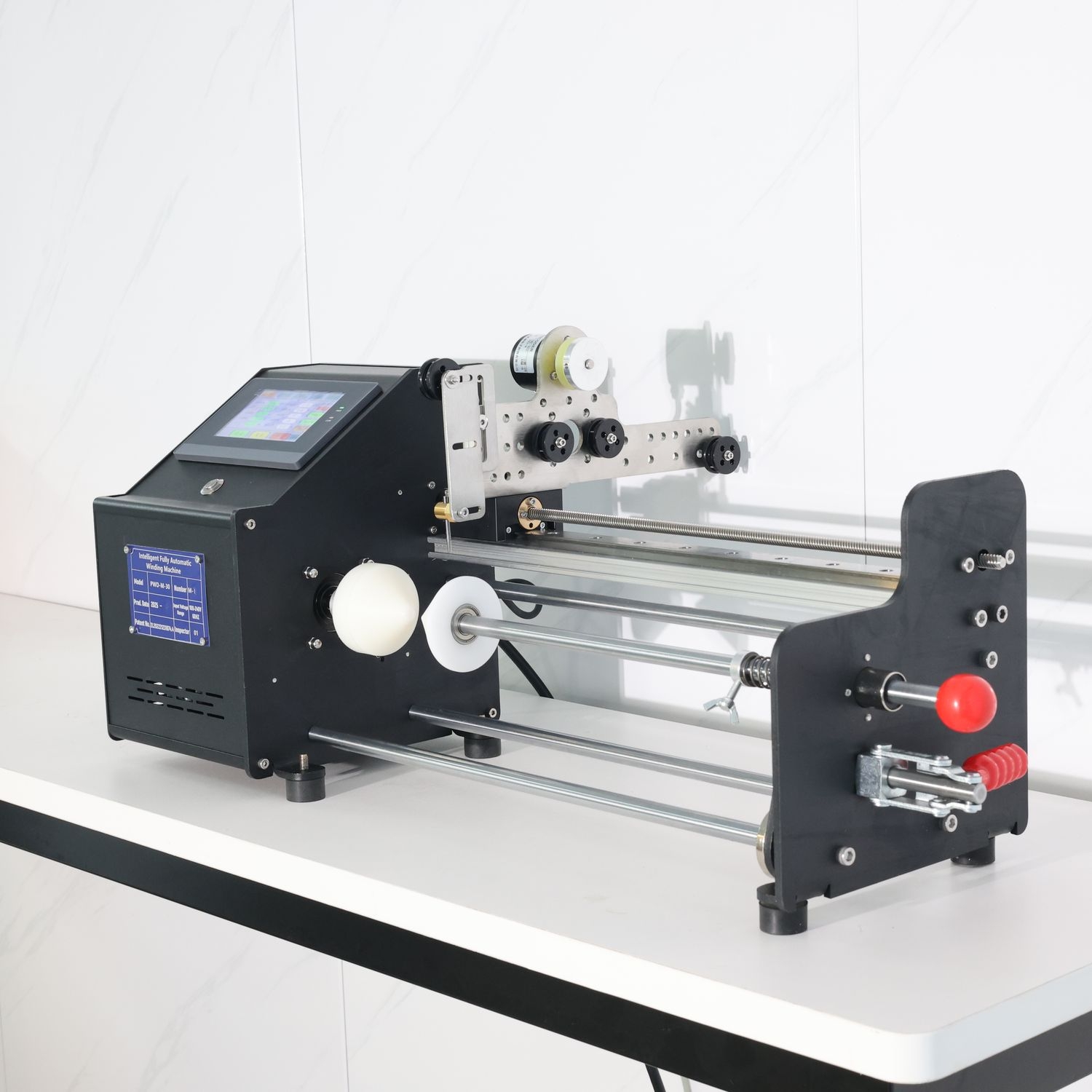

Product Name Fiber Optic Winding Machine
Model PWD-M-30
Operation Mode Touch screen intelligent control system (Chinese/English/Russian interface)
Effective Stroke 200mm (support customized extension)
Spool Fit Maximum diameter ≤ 150mm
Speed Range 5~1000r/min (high-speed version can reach 2000r/min)
Winding Length Up to 5000m
Metering Accuracy Independent encoder real-time meter/lap/layer counting
Tension Control Compatible with mechanical or magnetic tensioners
Power Input 100-220V wide voltage
Size 700mm (L) × 220mm (W) × 250mm (H)
Weight 14kg
Core Features
Intelligent Control

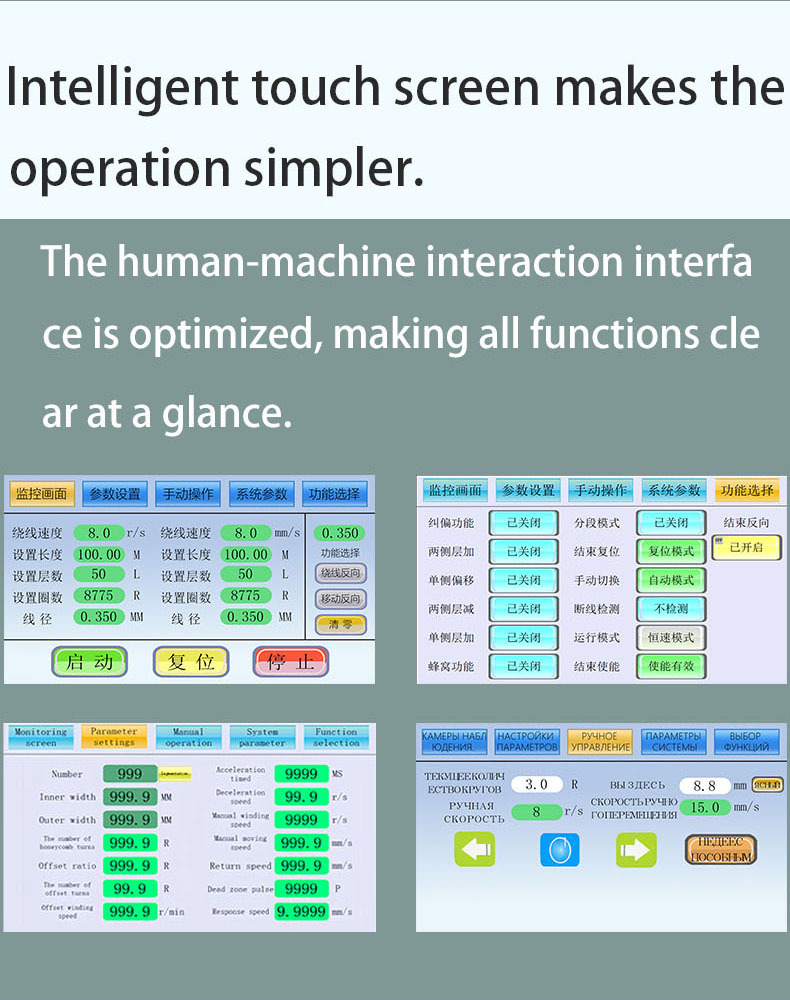

  • PLC CNC system touch screen interaction
  • Real-time speed adjustment / adjustment of inner width during winding
  • Custom programs (support for private customization)
All-Round Winding
  • Unilateral layer addition/layer reduction · Horn shaft wound
  • Honeycomb winding · Layer winding method · Layer reduction winding method
  • Parallel winding method · Multi-section winding of same/different specs
Triple Protection

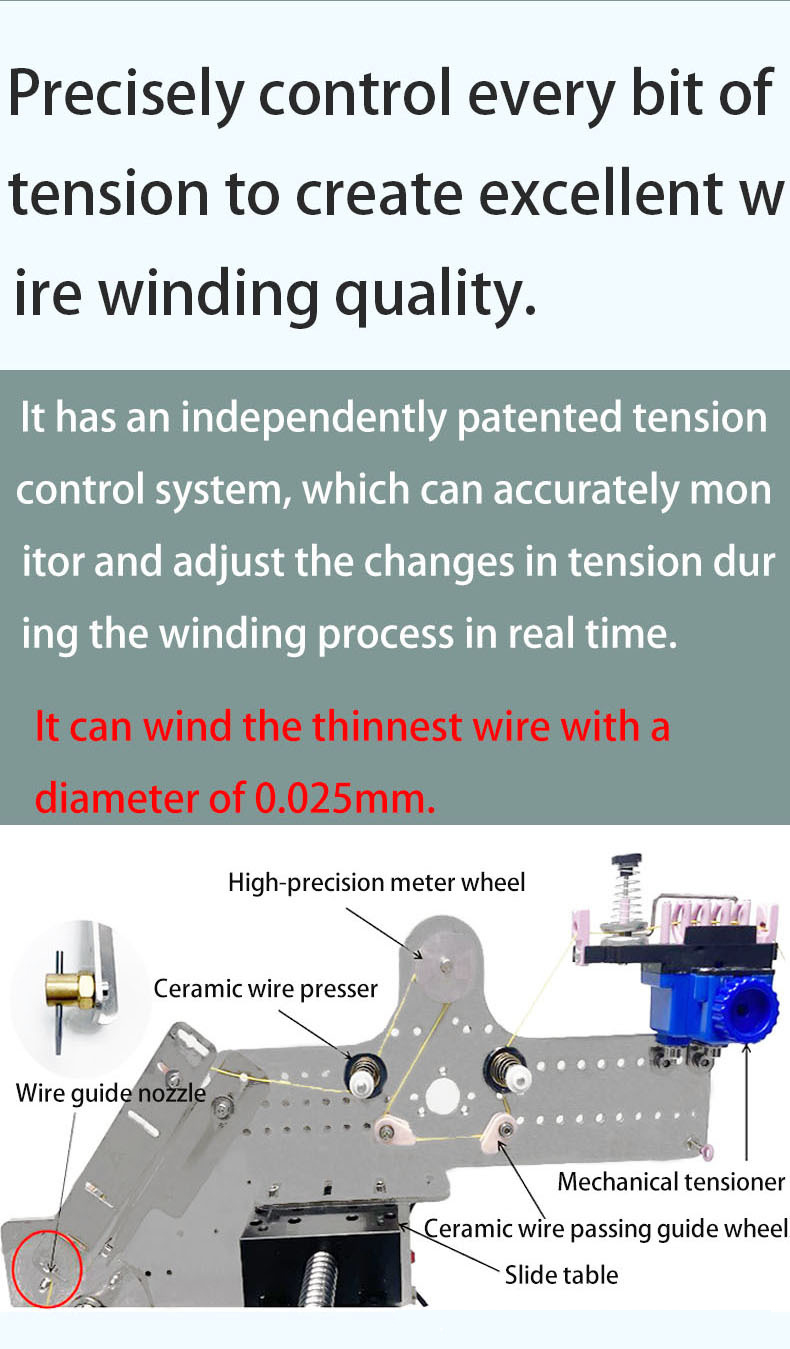

  • Emergency stop: automatic detection of tension to prevent wire breakage
  • S-type acceleration and deceleration: buffer inertia reduction at start/end
  • All-ceramic wire ring: zero-wear wire guard structure
Industrial Design
  • Black metal body · Compact impact-resistant construction
  • Magnetic/mechanical dual-mode tensioner is freely optional
Applicable Scenarios
Applicable Wires:

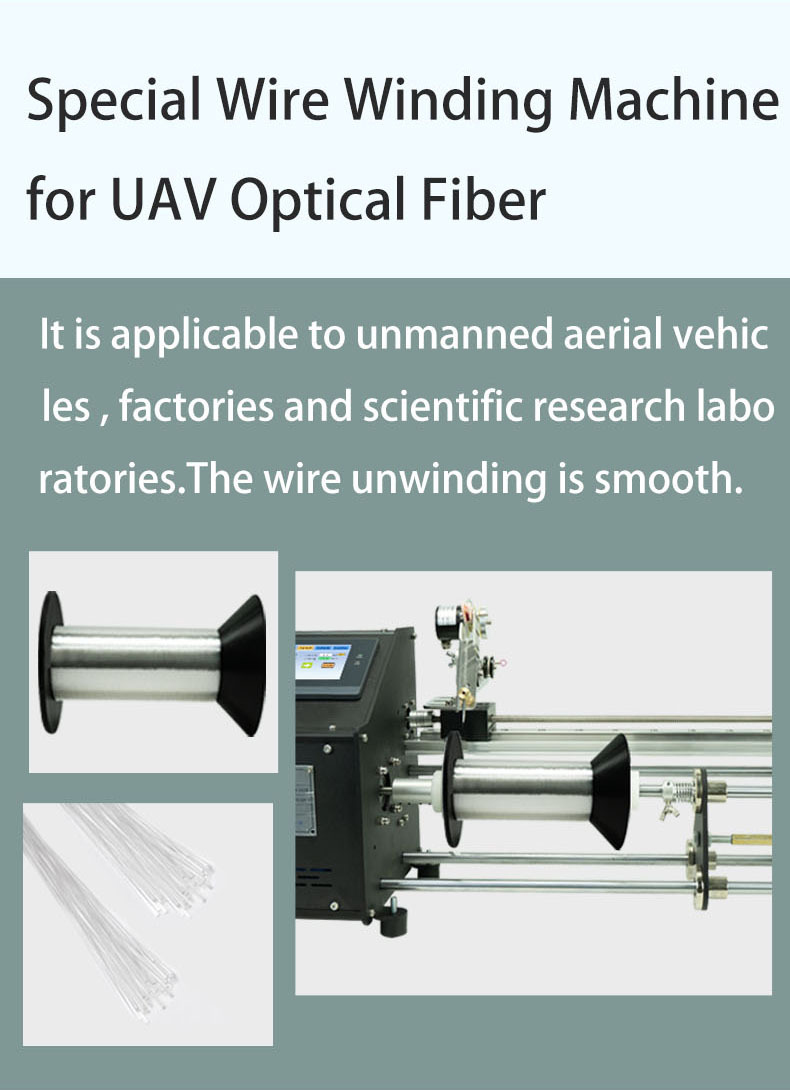

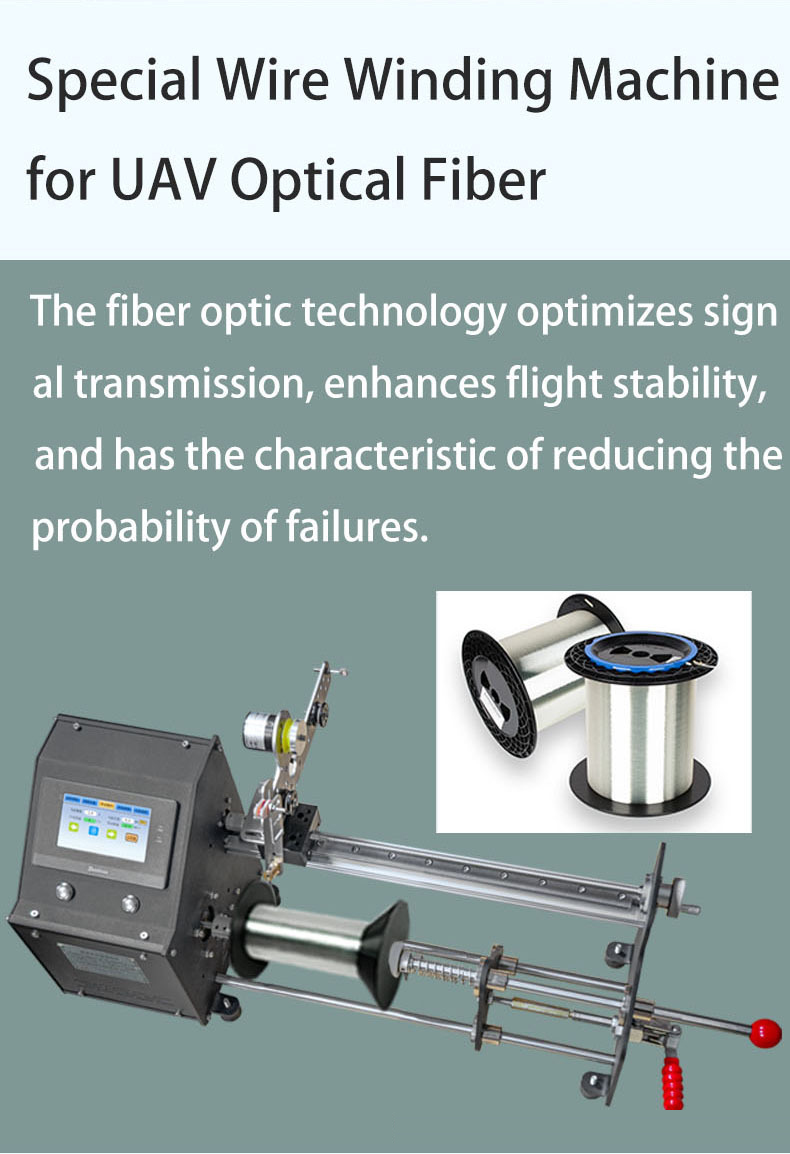

Enameled Wire Fishing Line Cotton Wire Optical Fiber Steel Wire Welding Wire Hand Rope Other fine & soft wires
Application Fields:
Mass Production of Electronic Components UAV Component Manufacturing Industrial Wiring Harness Processing Precision Instrument Winding
Technical Advantages
Triple Accurate Measurement Winding length / number of layers / turns
5~2000r/min Range Stepless speed regulation
Emergency Stop & Acceleration S-type acceleration and deceleration double protection
Ceramic Guides Fully protect the integrity of the wire
Product Gallery

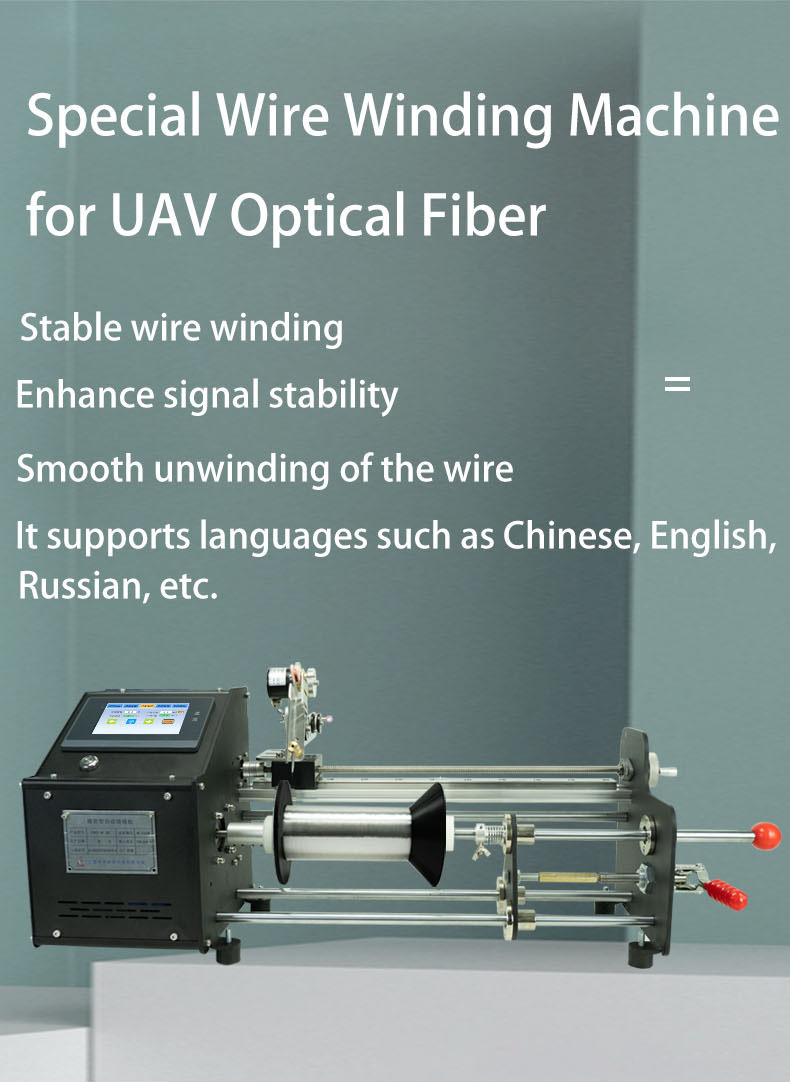

PWD-M-30 Wire Coiling System Touch Screen Interface Triple Safety Features Electronic Component Production
PWD-M-30 Wire Coiling System Touch Screen Interface Triple Safety Features Electronic Component Production

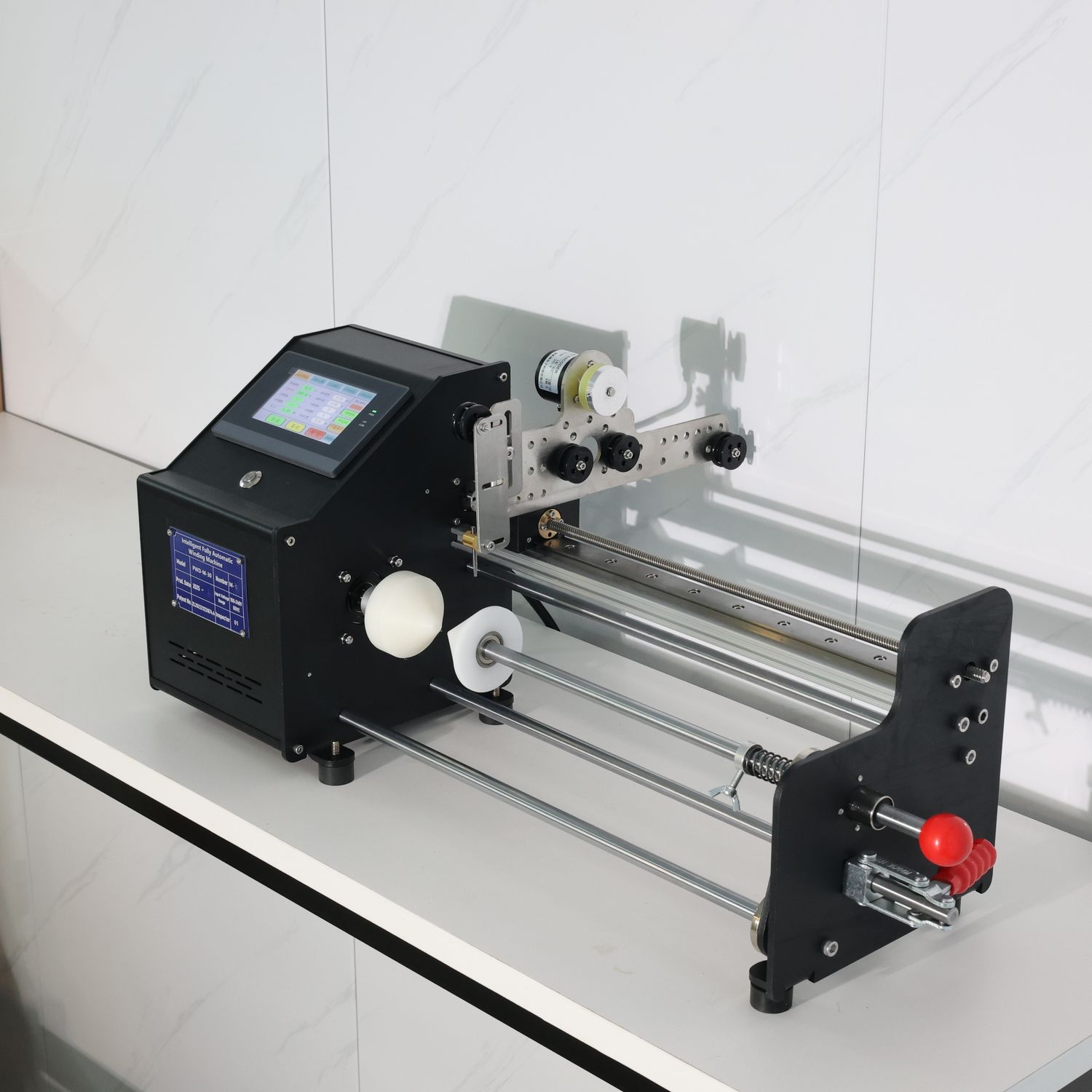

PWD-M-30 Wire Coiling System Touch Screen Interface Triple Safety Features Electronic Component Production

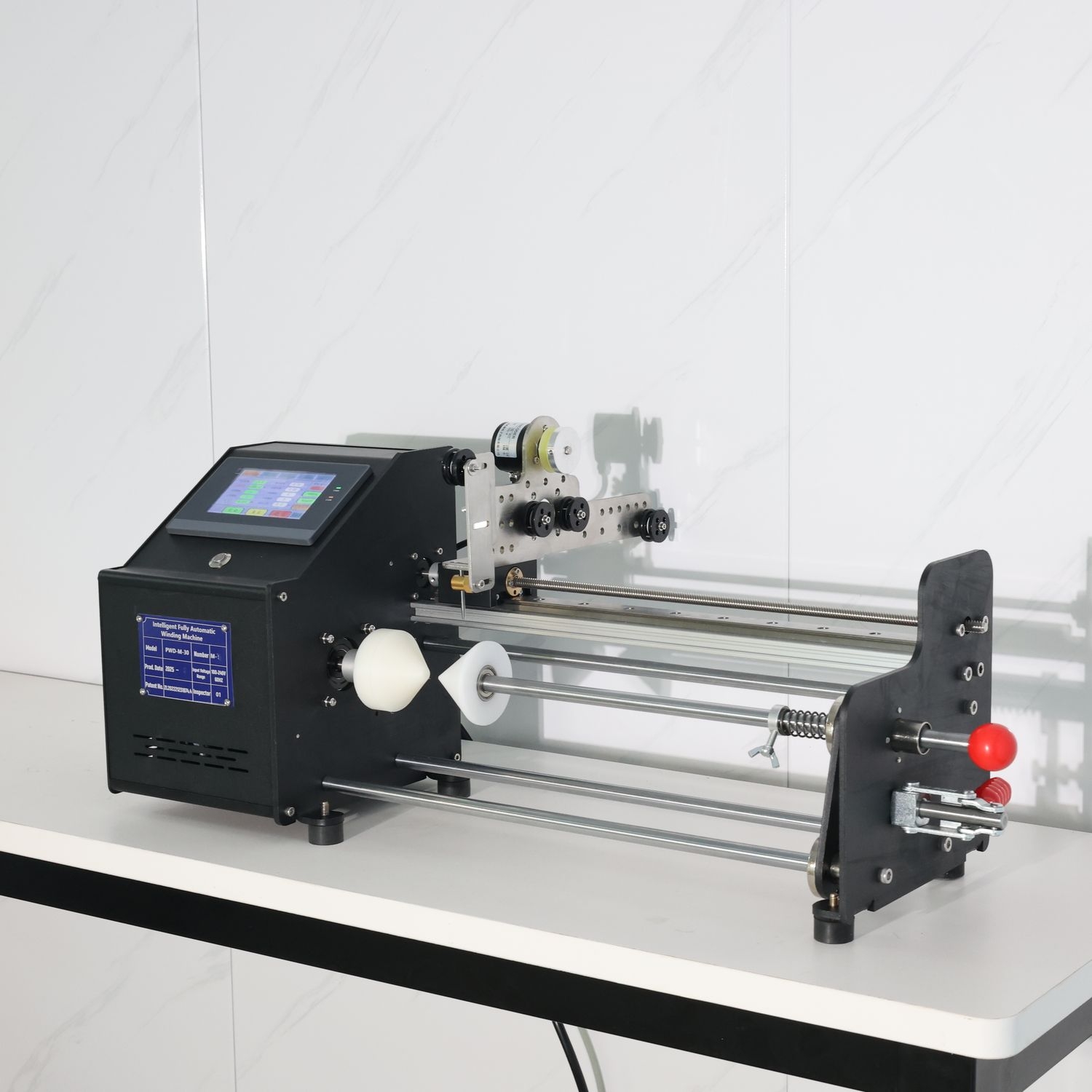

PWD-M-30 Wire Coiling System Touch Screen Interface Triple Safety Features Electronic Component Production

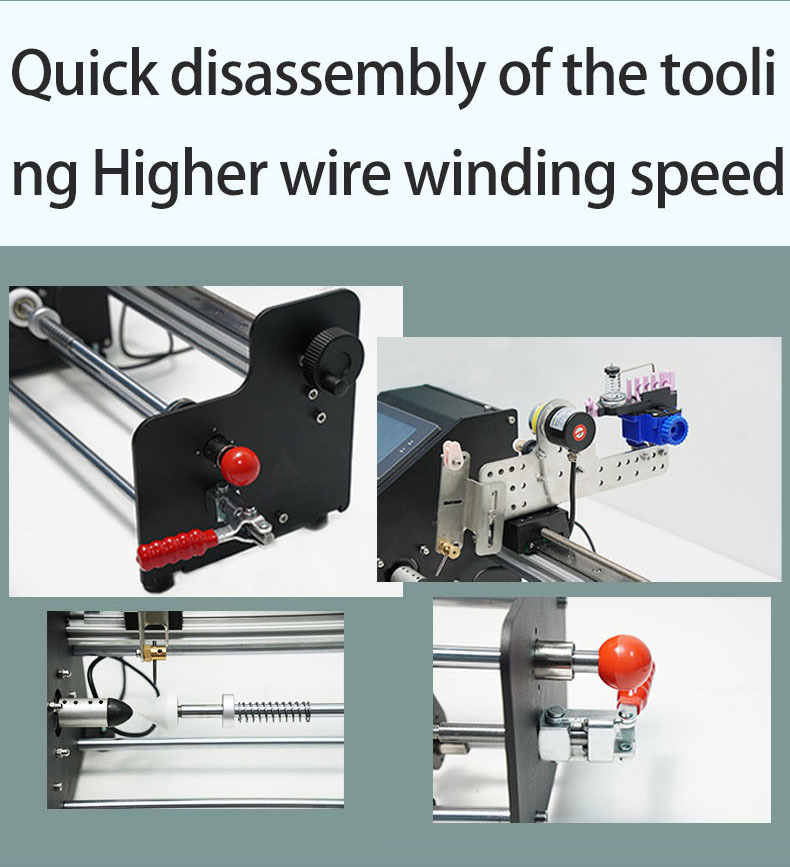

PWD-M-30 Wire Coiling System Touch Screen Interface Triple Safety Features Electronic Component Production
PWD-M-30 Wire Coiling System Touch Screen Interface Triple Safety Features Electronic Component Production
PWD-M-30 Wire Coiling System Touch Screen Interface Triple Safety Features Electronic Component Production
PWD-M-30 Wire Coiling System Touch Screen Interface Triple Safety Features Electronic Component Production
PWD-M-30 Wire Coiling System Touch Screen Interface Triple Safety Features Electronic Component Production
Frequently Asked Questions
What types of wire is the PWD-M-30 winding machine compatible with?
The machine is highly versatile and compatible with a wide range of fine and soft wires, including enameled wire, fishing line, cotton wire, optical fiber, steel wire, welding wire, hand rope, and similar materials.
What is the maximum winding speed and distance for this model?
The PWD-M-30 has a standard speed range of 5 to 1000 r/min (with a high-speed version option reaching up to 2000 r/min) and supports a total winding length of up to 5000 meters.
How does the machine prevent wires from breaking during operation?
It features a triple protection system that includes automatic tension detection with an emergency stop if resistance limits are exceeded, S-type acceleration and deceleration buffers, and an all-ceramic wire ring design to ensure zero-wear wire guidance.
Does the PWD-M-30 support custom winding modes?
Yes, the machine supports multiple winding configurations, including unilateral layer addition/reduction, horn shaft winding, honeycomb winding, layer winding, layer reduction winding, parallel winding, and multi-section winding methods for same or different specifications.
Can the effective stroke of the machine be customized?
The standard effective stroke is 200mm, but customized extension setups are fully supported to match specific manufacturing requirements.
