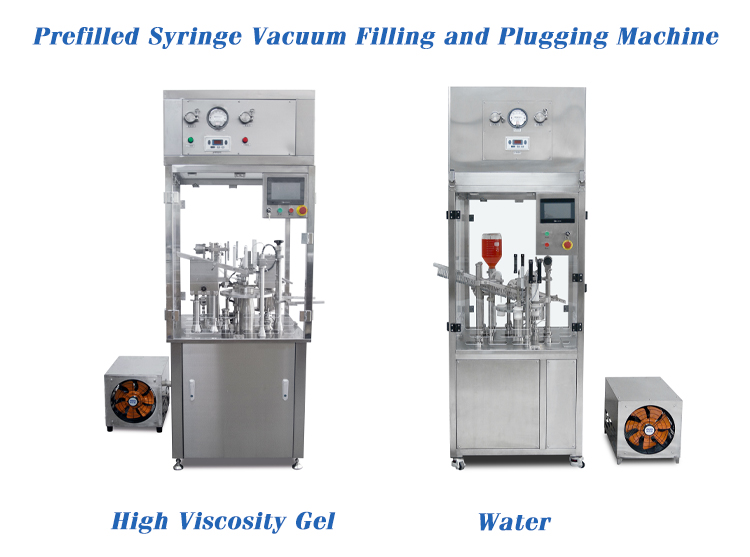

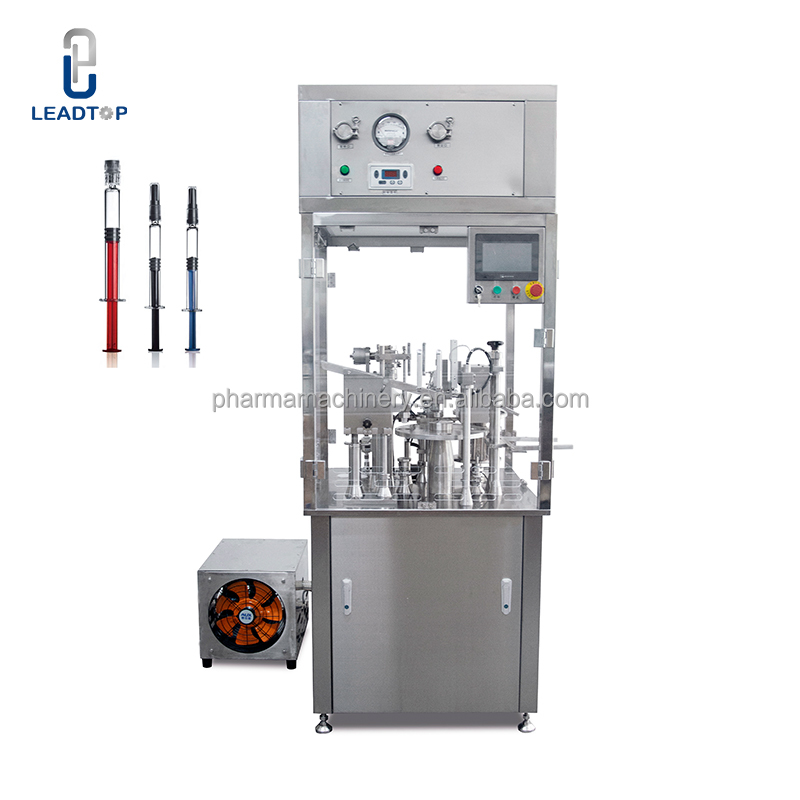

This product is specially designed by our company for the filling of prefilled syringes. It is an automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs smoothly, is easy to operate, and is equipped with intelligent detection devices. It has high automation, high work efficiency and easy maintenance. It is an ideal equipment for filling and plugging prefilled syringes.
| Mode | PFS-1Pro | PFS-1 |
| Applicable Materials | Liquid and ointment | Liquid and ointment |
| Applicable Syringe Specifications | 0.5, 1, 2.25, 3, 5, 10ML | 0.5, 1, 2.25, 3, 5, 10ML |
| Number of Filling Heads | 1 | 1 |
| Number of Capping Heads | 1 | 1 |
| Filling Accuracy | ≤±1-2% | ≤±1-2% |
| Production Capacity | 420-720 p/h | 600-720 p/h |
| Total Power | 2KW | 2KW |
| Voltage | 380V/220V 50-60Hz | 380V/220V 50-60Hz |
| Compressed Air | 0.55-0.75Mpa 15L/S | 0.55-0.75Mpa 15L/S |
| Dimensions | L808×W758×H1760mm | L808×W758×H1760mm |
| Equipment Weight | 300KG | 300KG |
If You Need Other Types Of Syringe Filling Machines, Please Send An Inquiry To Get More Information.

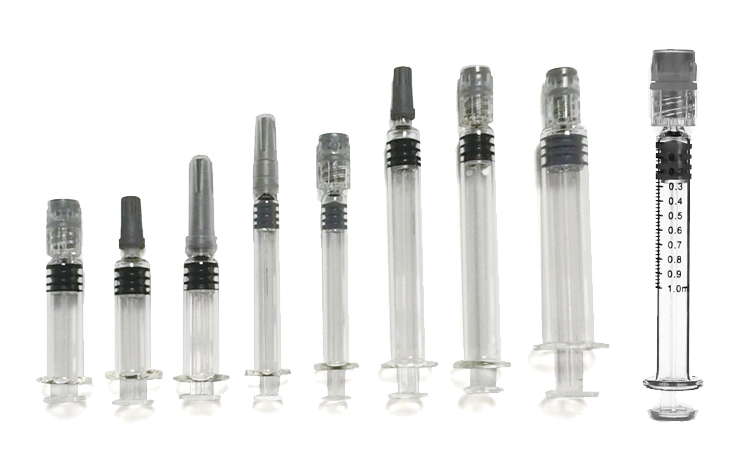

This product is widely applicable to SCF (prefilled syringe) syringes from BD, BG, SCHOTT and major domestic manufacturers. Other types of syringes can also be customized.
The surface is made of SUS304 stainless steel, and the contact parts are made of SUS316L stainless steel and silicon rubber, which fully meets the requirements of GMP specifications.

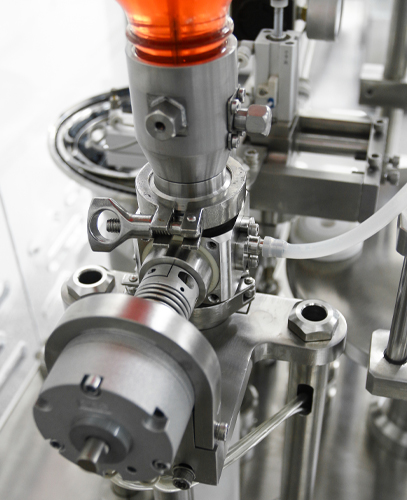

The ceramic plunger pump realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high temperature, and has high filling accuracy.
The conveying and sorting of the rubber plugs are realized by the vibratory feeder, which is made of SUS316L stainless steel clean plate with bright surface treatment and no clean dead corners.
It adopts internationally renowned electrical components and implements interference-free modular control. Synchronous actions are all controlled by servo motors. Automatic filling and stoppering are implemented, which is accurate, reliable and easy to operate.
The operation of the motor is controlled by the PLC programming controller. The human-computer interaction interface monitors and displays the working status of each station in real time, and automatically alarms and displays the fault location in real time, and the fault prompts.
A variety of filling doses and filling methods are available, and a variety of material front-end functions are optional.
The injection needle is used for filling with the liquid level rising to prevent splashing of liquid.
The vacuum filling system is suitable for viscous materials to ensure that the liquid fills the filling space without bubbles or faults, and improves the qualified rate of finished products.
The vacuum stopper system avoids particles generated by the vibration and friction of the rubber stopper, and ensures that the rubber stopper is in close contact with the liquid surface.
Modular design, easy to locate, easy to expand, can be used as a stand-alone machine, can also be connected to the nesting machine, rotating rod machine, labeling machine, light inspection machine and other equipment to form a production line.
Optional hundred-level laminar flow hood to achieve high-demand clean production.

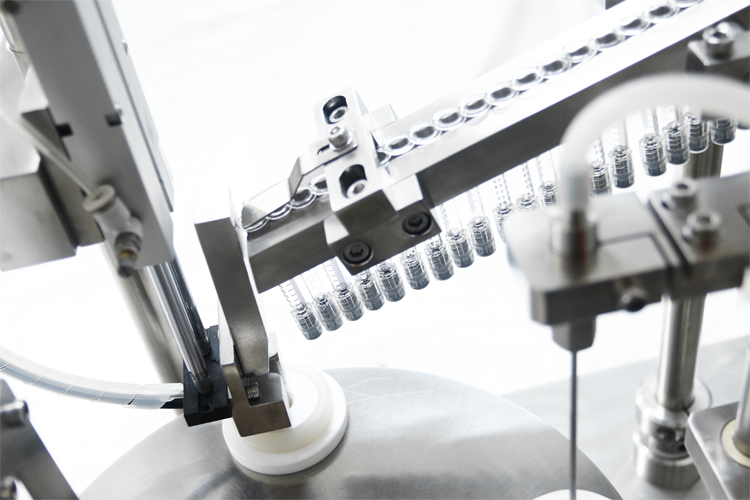

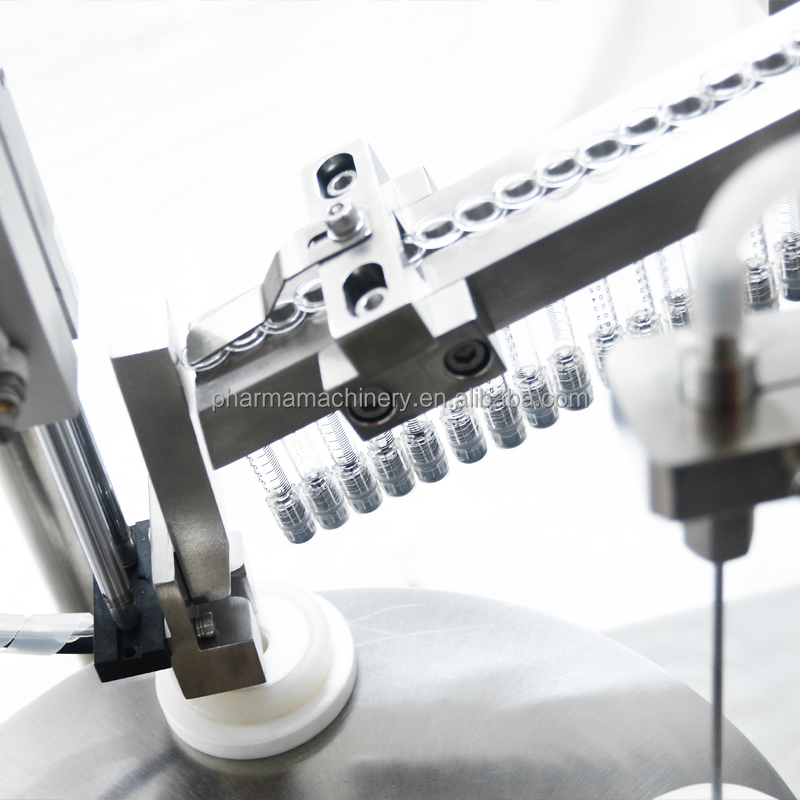

Enter the filling dial from the slide. Insert a syringe into the dial wheel and turn it to the corresponding work station.
Controlled by peristaltic pump, high precision and easy cleaning.

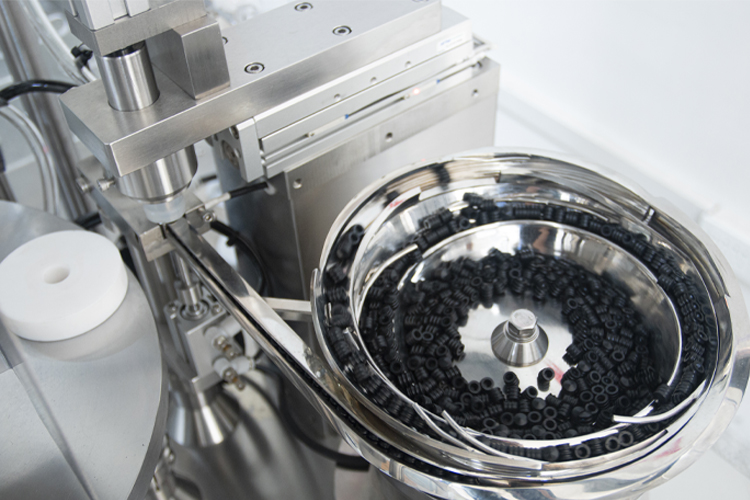

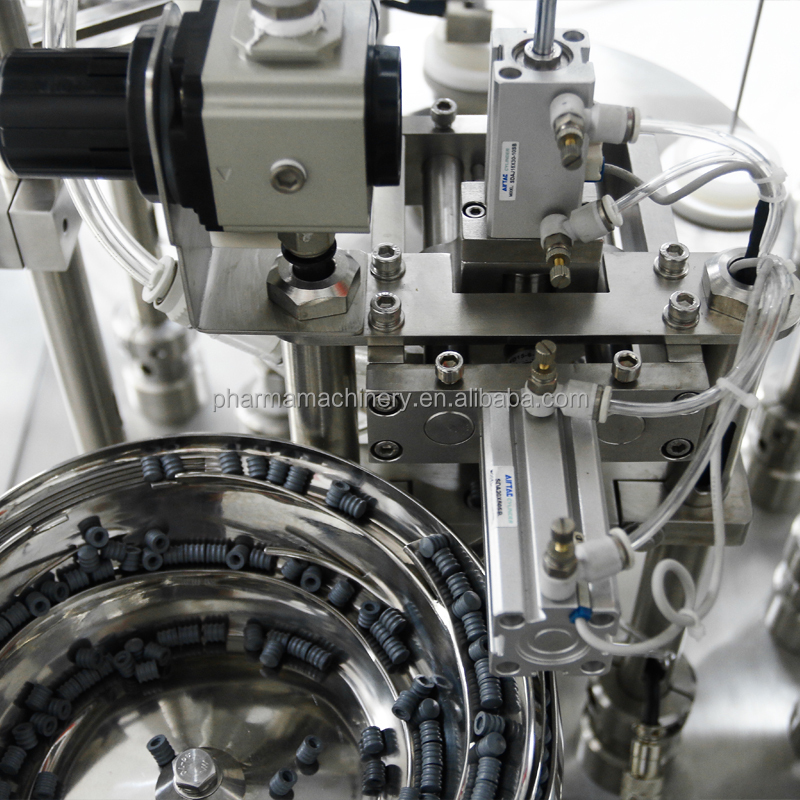

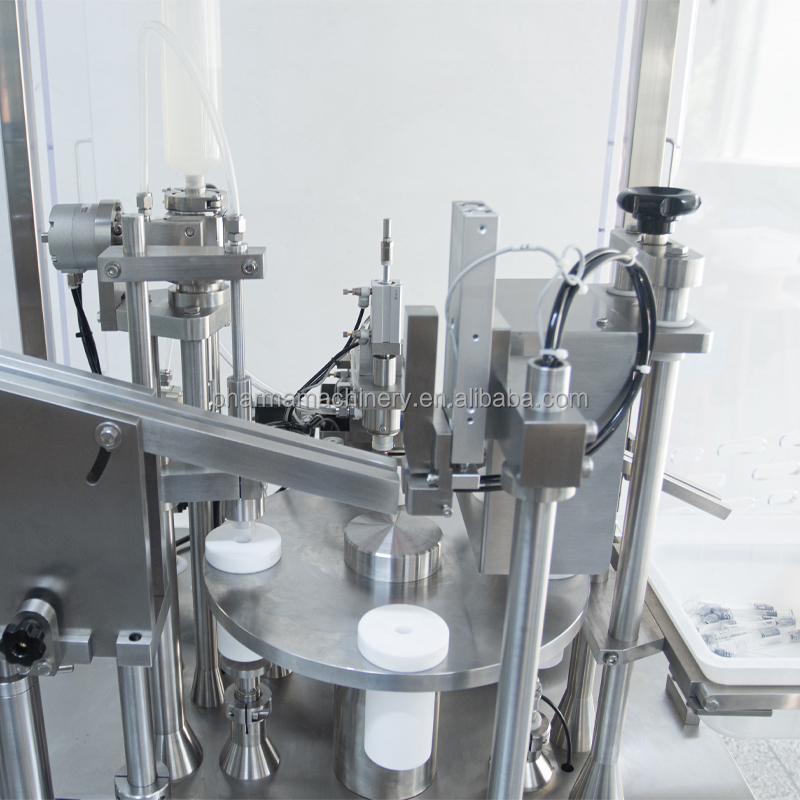

Sorting out the plugs from vibrating tray, through the loading plug tunnel, sucking the plug on the plugging station, then vacuum pressed plugging.

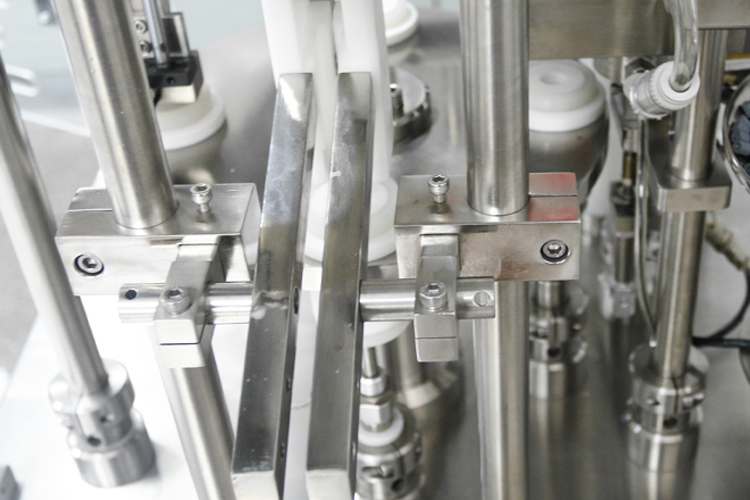

Automatic output finished product.
If You Want To Know More About The Machine Details, Please Send An Inquiry To Get It.
Since year 1996, we have started manufacturing chemical and food packaging machines such as Ampoule Filling and Sealing Machine, Blister Packaging Machine, Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. We design different types of packaging lines for customers, including standard or non-standard models. Our machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service + Trusted brand.
ISO, CE, SGS, BV Certified Company.

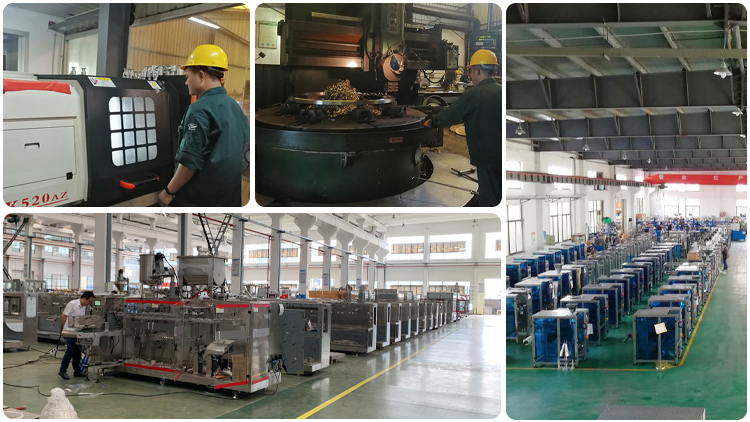

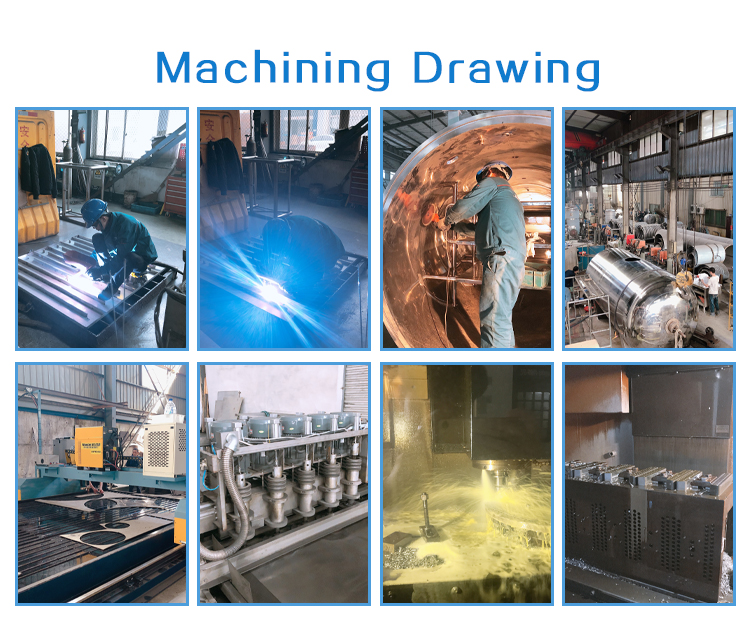

Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering experience, can customize the equipment and packaging line to your satisfaction.
