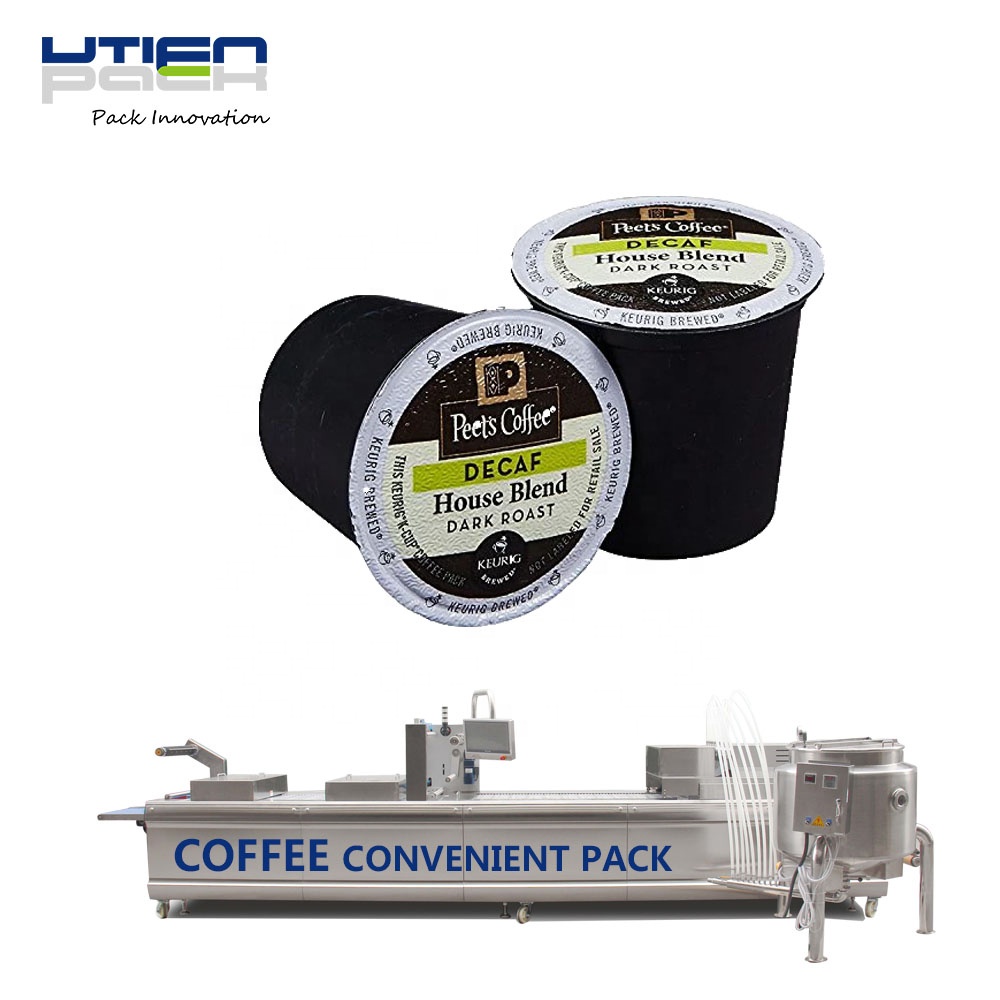

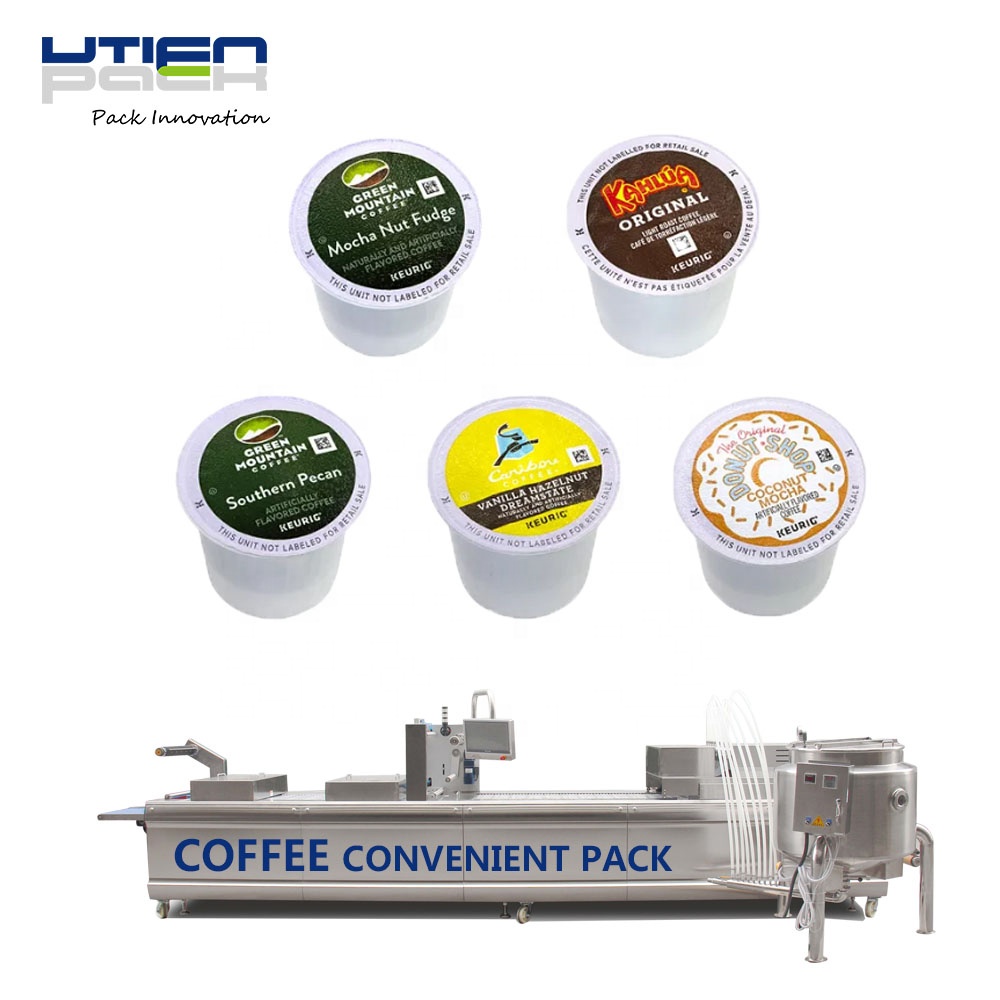

Auto Filling Packing Machine for Coffee Pod Capsules Pod,10-30g

Machine description

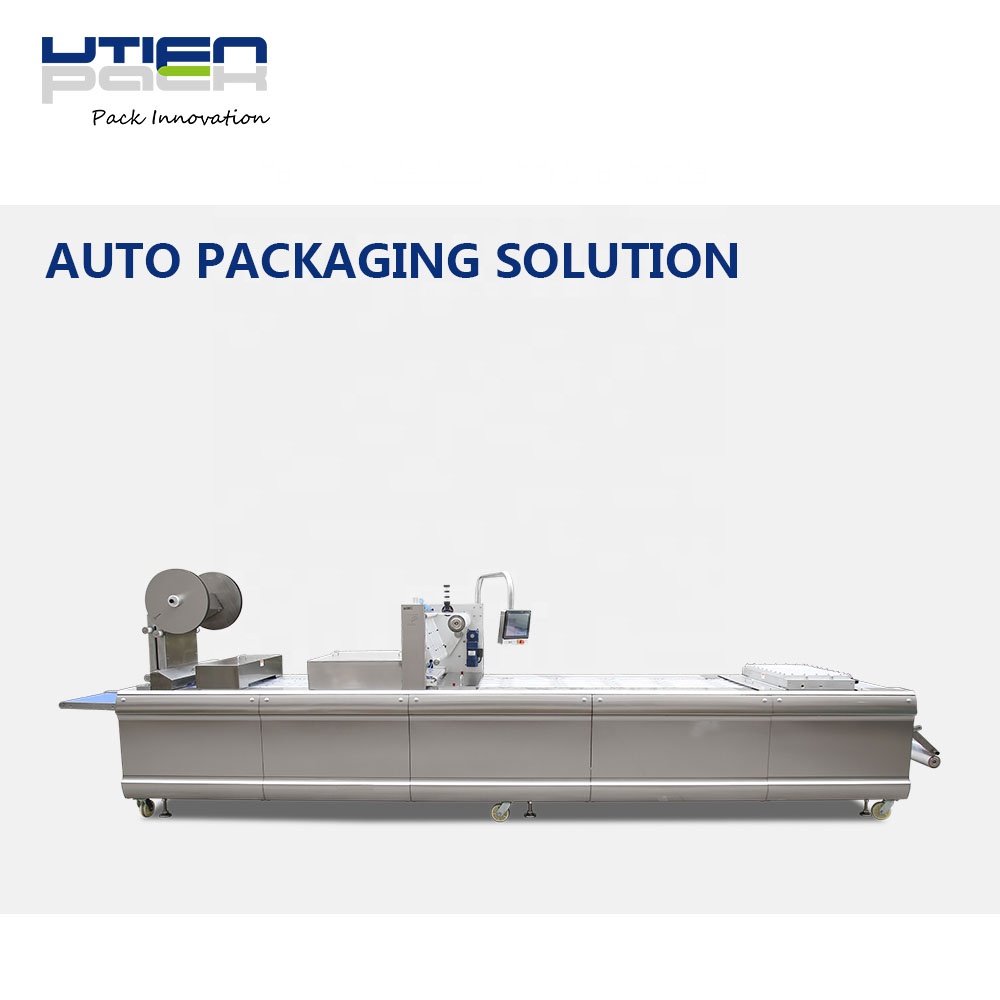

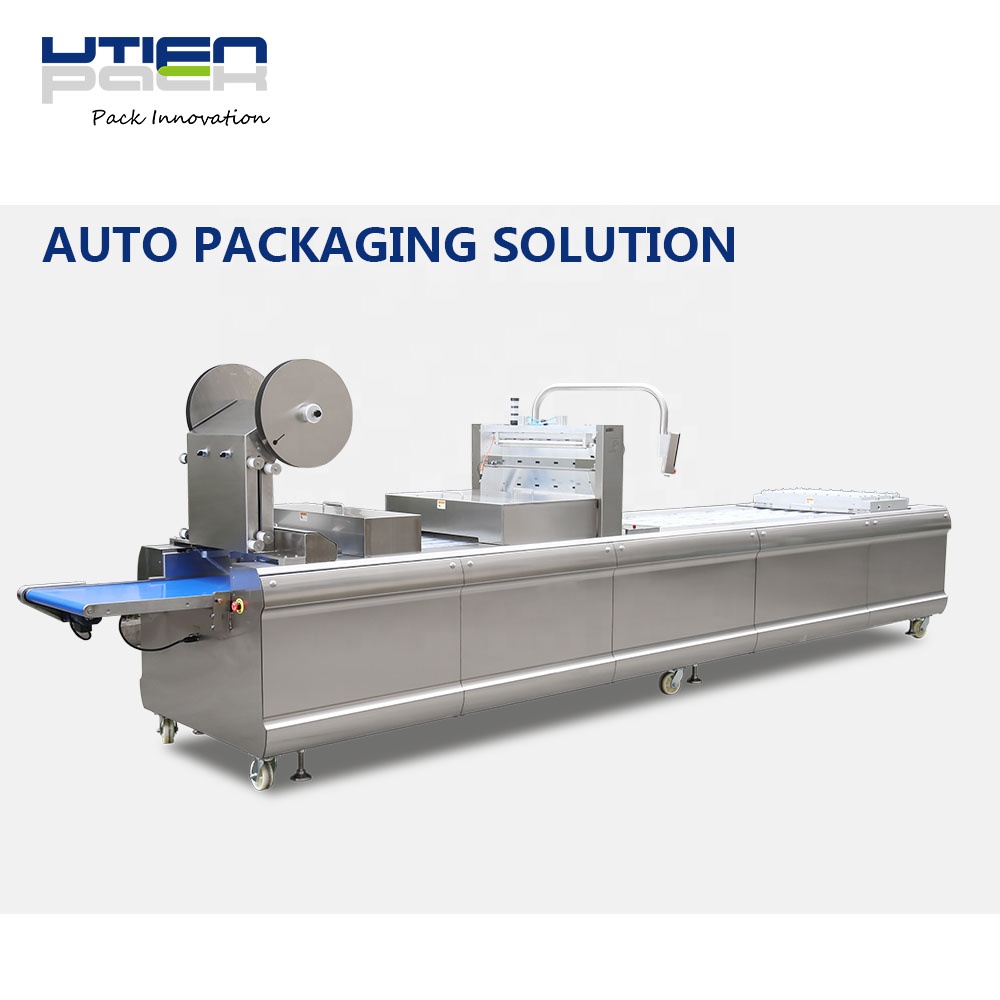

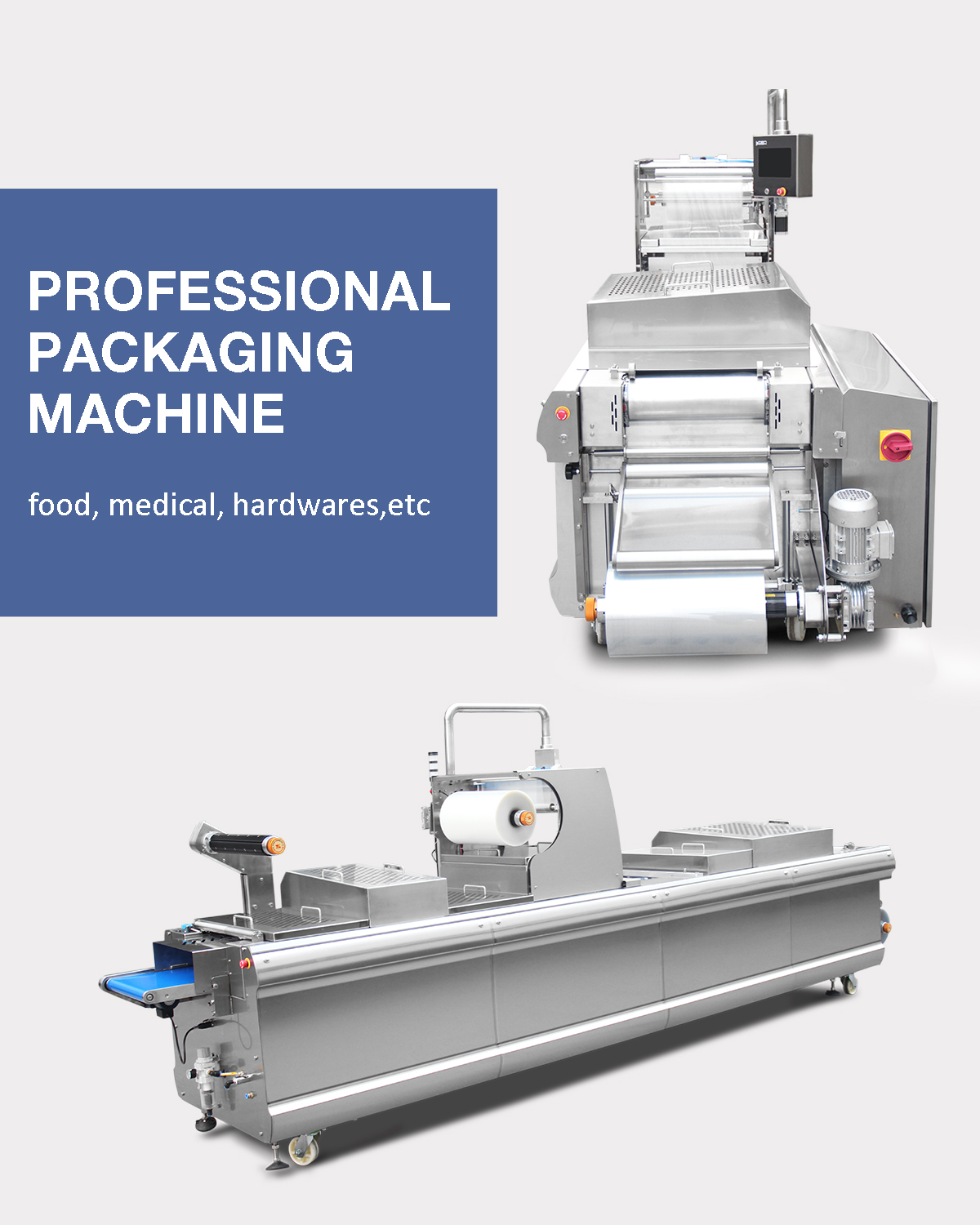

Liquid/powder thermoform filling packaging machine

It's an automatic food thermoform packaging machine. It's able to finish the whole process from package forming, filling/loading, sealing to final cutting.

For liquid or powder, it's able to handle products of different density and weight. It's been widely applied in coffee, chocolate, ice-cream, jam, honey, butter, cream cheese, olive paste, halva, tomato paste, powder, liquid cream, mayonnaise, ketchup, yoghurt and dessert, coffee cream, syrup, spreads, dipping, peanut butter, chili sauce, tomato liquid paste.

With special technology, it's helpful to increase your capacity, lower your cost, and make your product more fresh and appealing.

Liquid/powder thermoform filling packaging machine

Advantages

High capacity — produce over 10,000 small packs per day
Cost effective — saving over 30% cost than traditional packing
Easy operation — by finger touch on PLC screen
Reliable quality — spare parts of international top brands
Flexible design — Various package shapes, volume and output

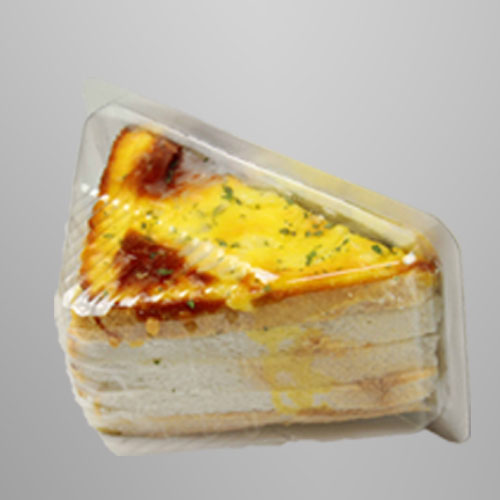

More application

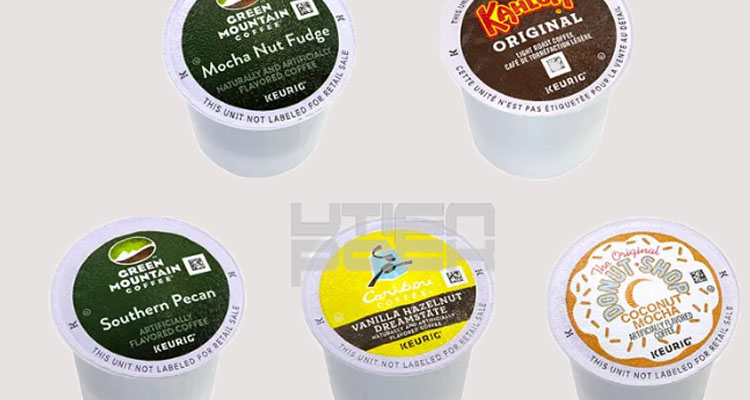

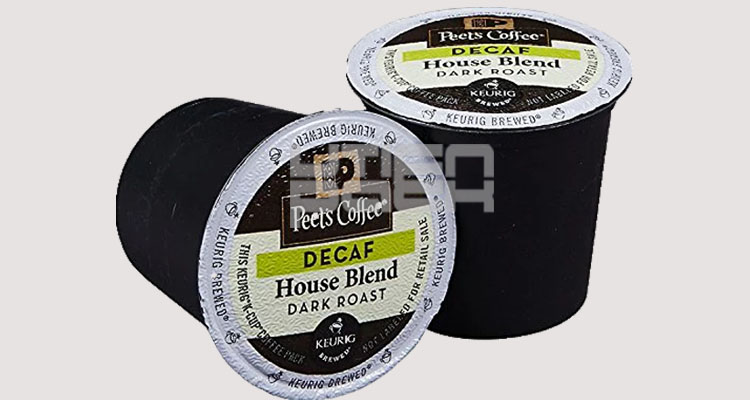

Package details

A. Nice appearance

• Customizing packages shapes

• Bottom stamping of date/lot/logo

• Smooth rims without burrs

B. Long shelf life

• Various packaging options are offered for the top freshness.

C. Easy tear corner

• Special tear corner is designed for quick and safe opening the cups.

Machine details

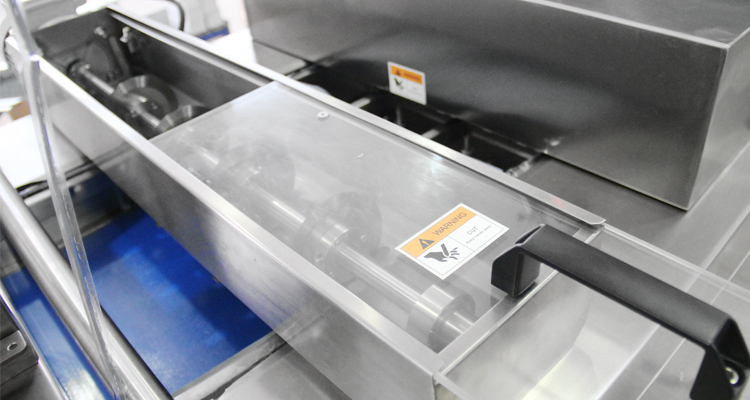

1. TOP SAFETY

Safety is our top concern in machine design. To ensure the security of worker and machine, many sensors are installed under the cover, inside the door and other removable parts to make sure the machine can auto-stop while the covers and doors are open.

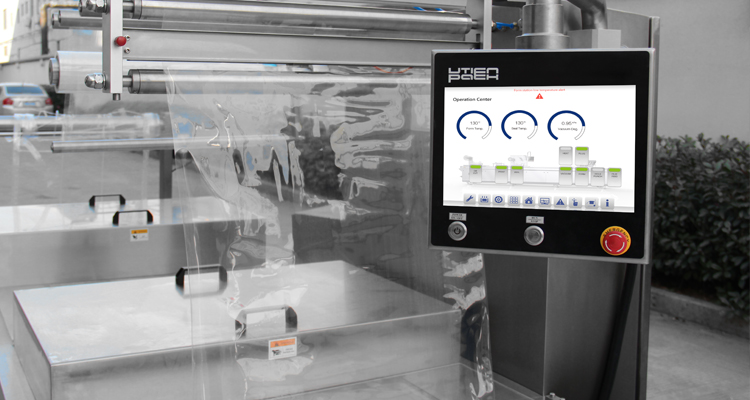

2. HIGH AUTOMATION

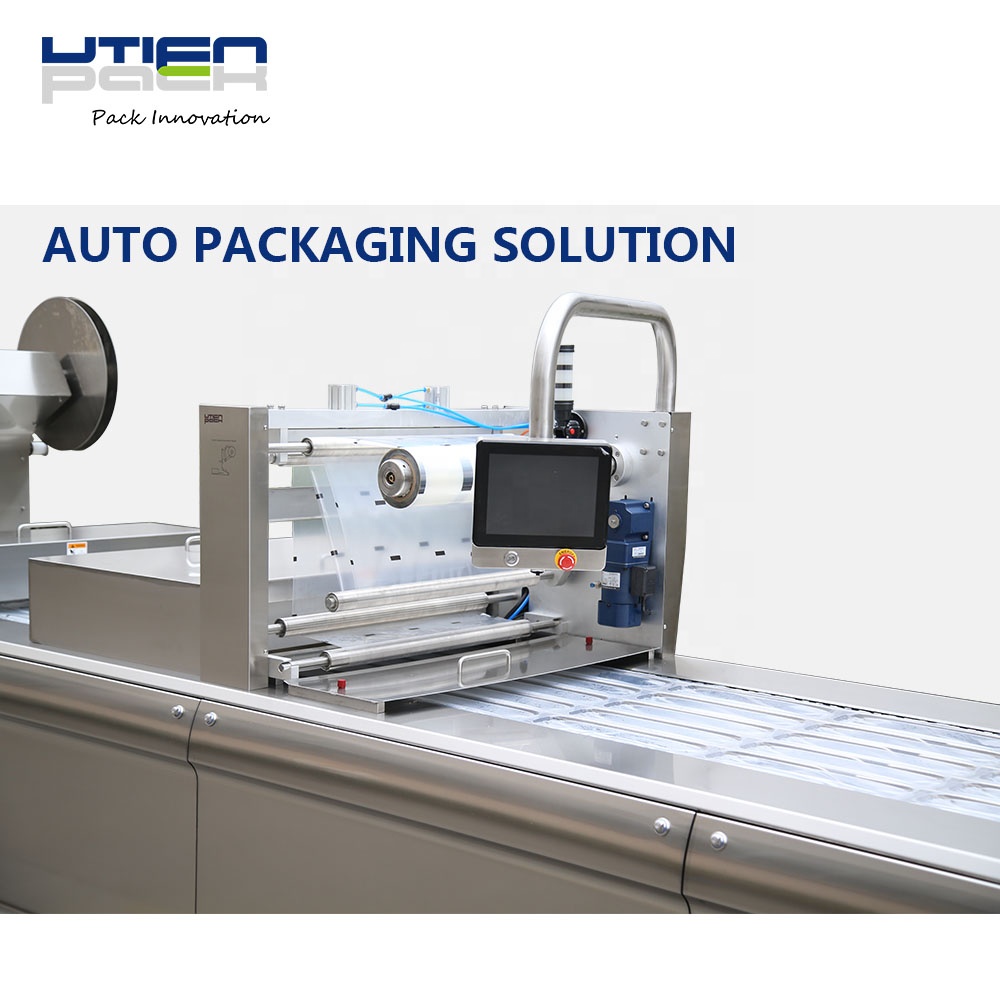

The machine is fully automatic from package forming to final product output. And it can be fully controlled by 10'' PLC touch screen.

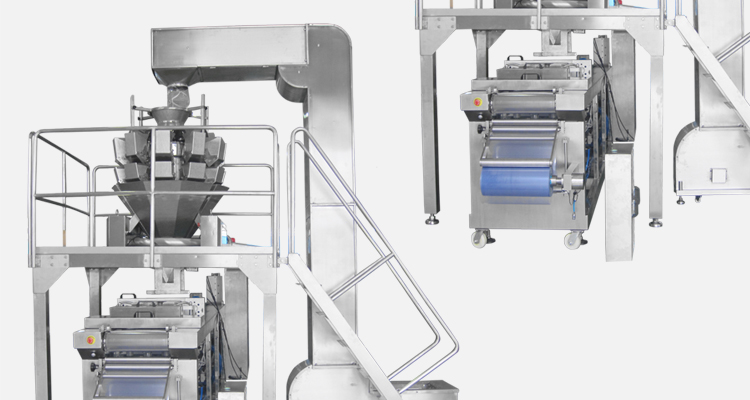

3. INDIVIDUAL DESIGN

We have a team of engineers to design every machine detail for customers' satisfaction. Also we're capable to apply other third party equipment to make a better auto packaging line.

TECHNICAL DATA

MACHINE PARAMETERS
Dimension	600013001870mm
Weight	2000kg
Working height	1000mm
Operating panel height	1600mm
Loading area length	1500mm

Working parameters
Bottom film width	≤600mm
Advance length	≤500mm
Forming depth	≤150mm

Top film
Material	Sealable PE\PA Multi-layer Co-extruded Plastic Film
Print	Pre-printed Top Film or Transparent Top Film
Roll diameter	≤250mm
Thickness	≤200um

BOTTOM FILM
Material	Sealable PE\PA Multi-layer Co-extruded Plastic Film
Print	Pre-printed Top Film or Transparent Top Film
Roll diameter	≤500mm
Thickness	≤300um

Components
Vacuum Pump	BUSCH(Germany)
Electrical Components	Schneider(French)
Pneumatic Components	SMC(Japanese)
PLC, Touch Screen & Servo Motor	DELTA(Taiwan)

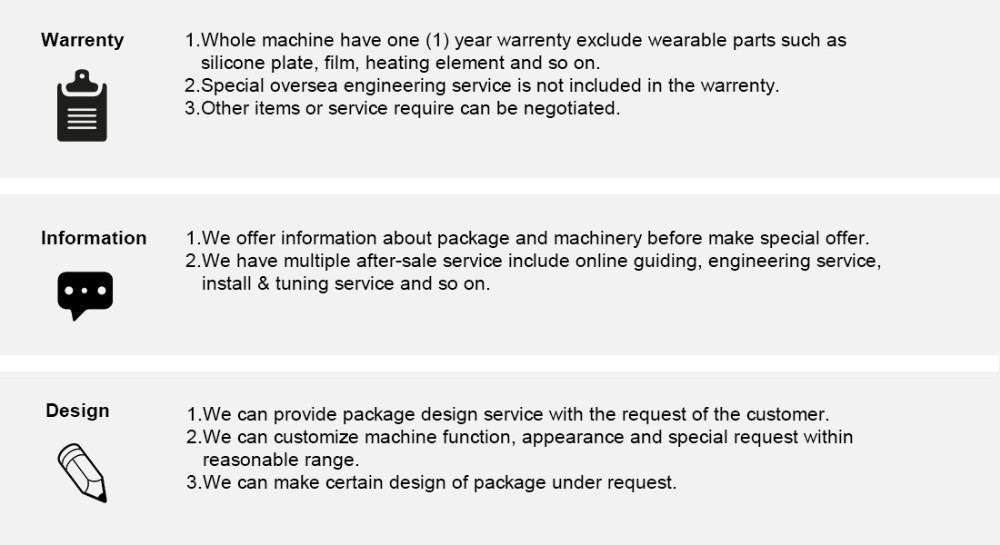

Our service

FAQ

How long does it take to deliver the machine after the order & deposit?

Usually it will take 90 working days to manufacture the machine and make it ready to deliver. At first 30 days the technical drawing will be made. The second 30 days start manufacturing the parts and ready to assemble. In the last 30 days the machine will be assembled and tuned to make sure it is ready to deliver.

What do you need to make a specific offer for my product?

To make a special offer we will need the dimension(s) of the package(s) you want to use on this machine. We also need the approximate production volume you need per day. If you have other special requests, please also inform us before we start the project.

Can you offer oversea service?

Yes, if requested. However, we suggest online problem solving first. If the problem still persists, we can arrange for an engineer to go to your factory personally to solve the issue.

What materials are recommended for the top and bottom packaging films?

We recommend Sealable PE\PA Multi-layer Co-extruded Plastic Film. The top film can be pre-printed or transparent (up to 200um thickness), while the bottom film supports thicknesses up to 300um.

What key components are integrated into the thermoform packaging machine?

The machine uses high-quality parts from international brands, including a BUSCH vacuum pump from Germany, Schneider electrical components from France, SMC pneumatic components from Japan, and DELTA PLC, touch screen & servo motors from Taiwan.

How does the machine guarantee operator safety during operation?

Safety features include multiple integrated sensors installed under the protective cover, inside the doors, and other removable parts. The machine automatically stops instantly if any cover or door is opened during operation.
