Line wire and cross wire are pre-straightened and cut to length.
This machine is easy to operate, extremely fast and easy to adjust and produce all mesh configurations, able to adapt to a variety of conditions, and has high production efficiency.

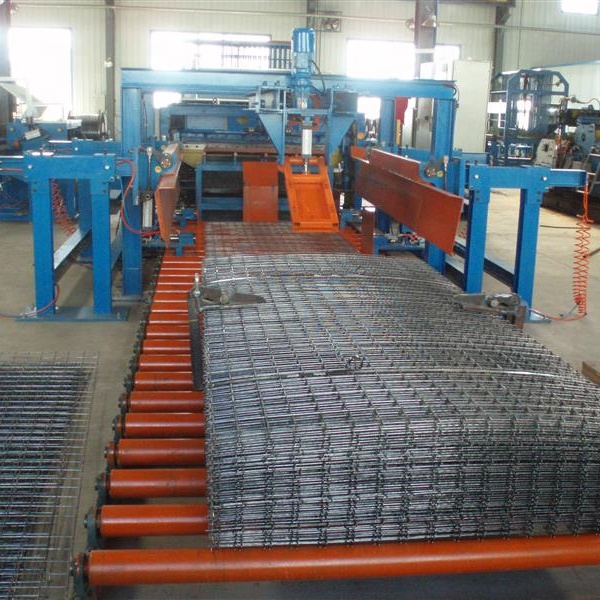

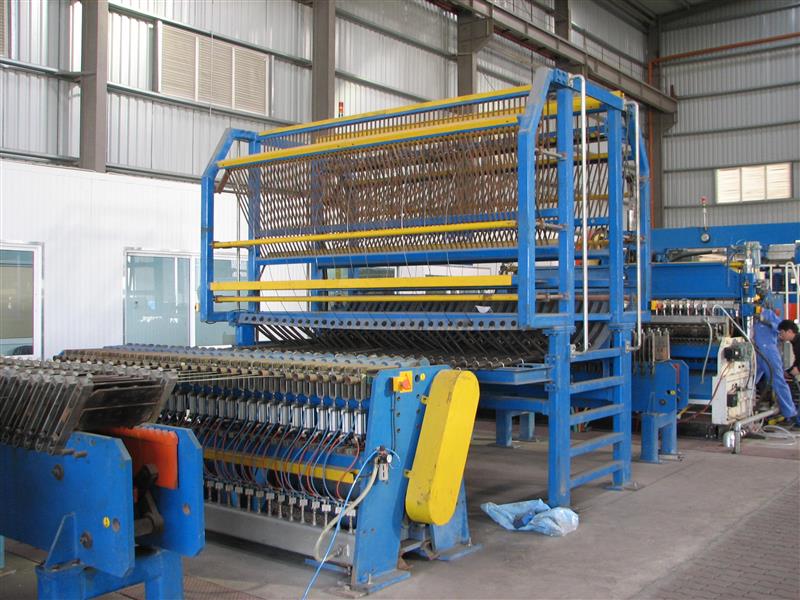

This machine has line wire auto feeding system and automatic mesh stacker. The maximum mesh width reaches to 4000mm.
Line wire is from spool and cross wire from pre-straightened and cut bar.
This machine is modular in design and production to meet the different needs of customers.
This machine has high productivity and mainly for mass production. This machine was designed for the large batch manufacture of standard as well as engineered mesh in sheet.
Welding materials: cold rolling ribbed steel wires and bars, hot rolled ribbed steel wires and bars, plain steel bars, galvanized steel wire rope, and so on.

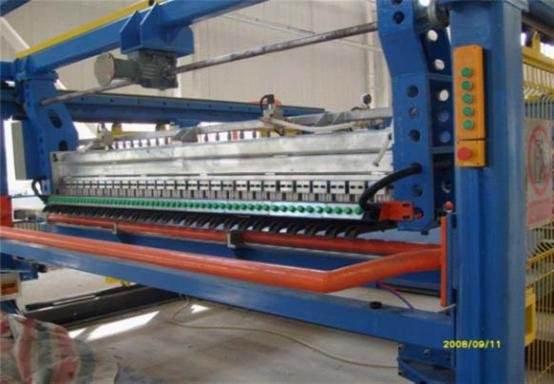

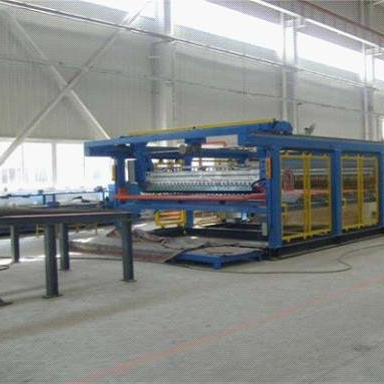

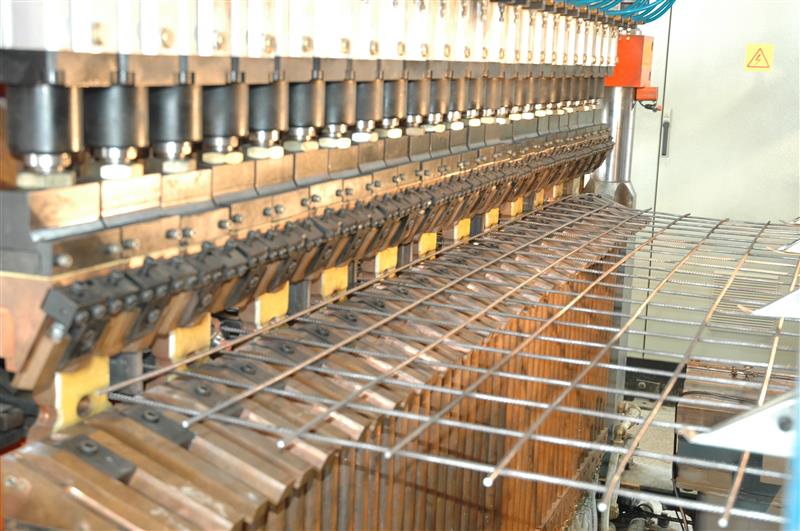

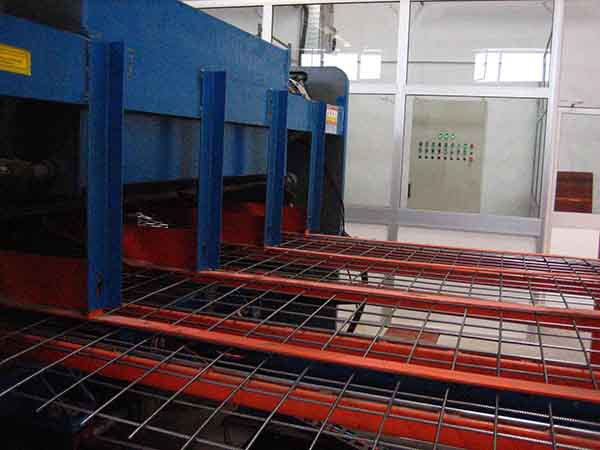

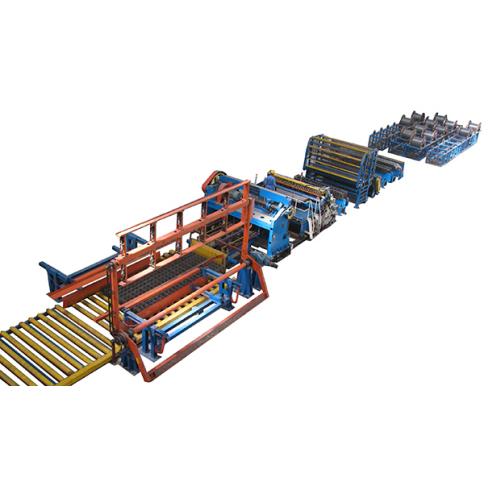

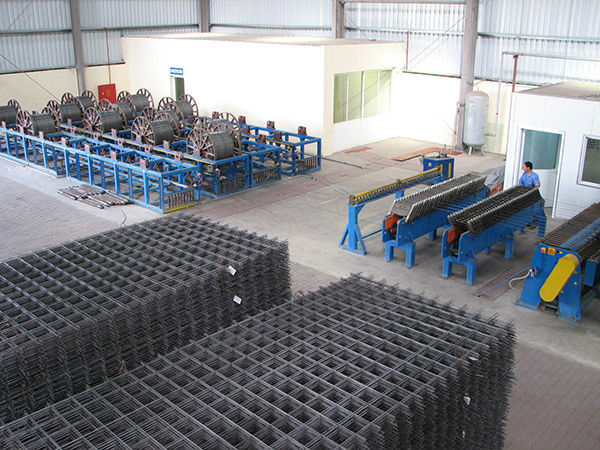

Automatic Double Coil Wire Steel Mesh Welding Line.
Mesh Line Wire and Cross Wire all feed from coil wire.
This machine is modular in design and production to meet the different needs of customers.
This machine has high productivity and mainly for mass production. This machine was designed for the large batch manufacture of standard as well as engineered mesh in sheet.
Welding materials: cold rolling ribbed steel wires and bars, hot rolled ribbed steel wires and bars, plain steel bars, galvanized steel wire rope, and so on.
| Model | GWC-ZA | GWC-ZB | GWC-PA | GWC-PB |
|---|---|---|---|---|
| Max. Working width (mm) | 2600, 2800, 3300 | 2600, 2800, 3300 | 2100 | 2600, 2800, 3300 |
| Line wire space (mm) | 100, 150, 200, 250, 300, 350, 400 | 100, 150, 200, 250, 300, 350, 400 | 50~200 | 100, 150, 200, 250, 300, 350, 400 |
| Cross wire space (mm) | 50~400 steplessly | 50~400 steplessly | 25~200 steplessly | 50~400 steplessly |
| Line wire diameter (mm) | 5.0~12.0 | 5.0~12.0 | 3.0~5.0 | 5.0~12.0 |
| Cross wire diameter (mm) | 5.0~12.0 | 5.0~12.0 | 3.0~5.0 | 5.0~12.0 |
| Max. welding capacity (mm) | 12+12 | 12+12 | 5+5 | 12+12 |
| Max. Working speed (cws/min) | 60~100 | 60~100 | 60~100 | 60~100 |
| Rated electrical power (kw) | 1300~1600 | 1300~1600 | 250 | 1300~1600 |
